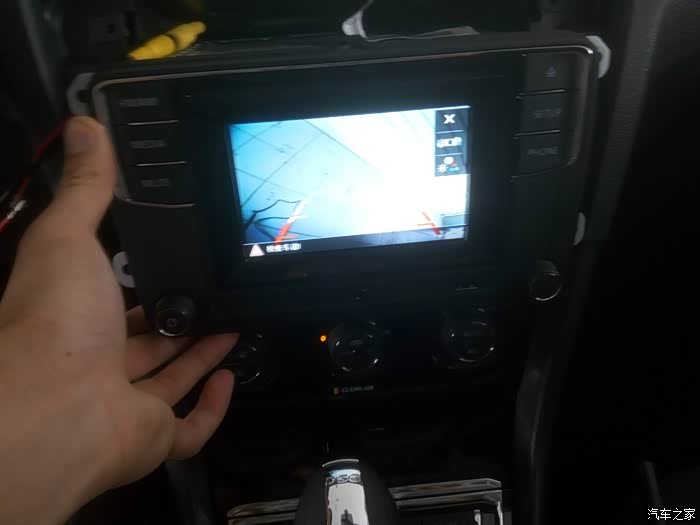

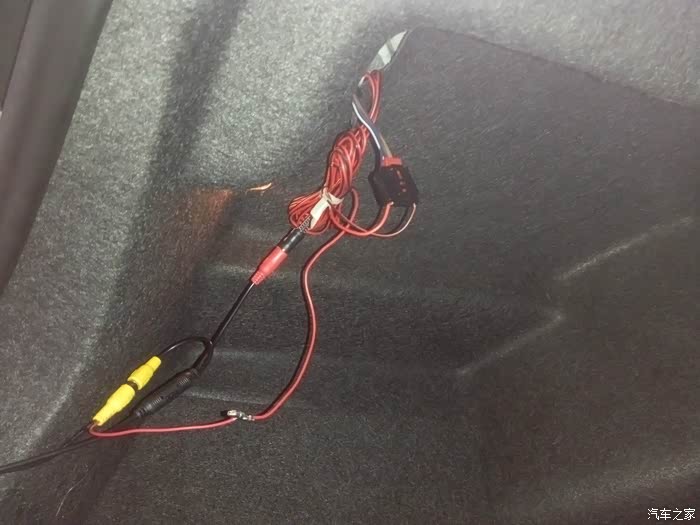

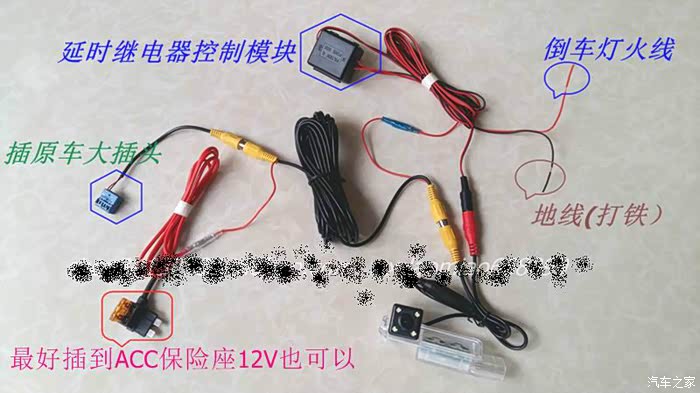

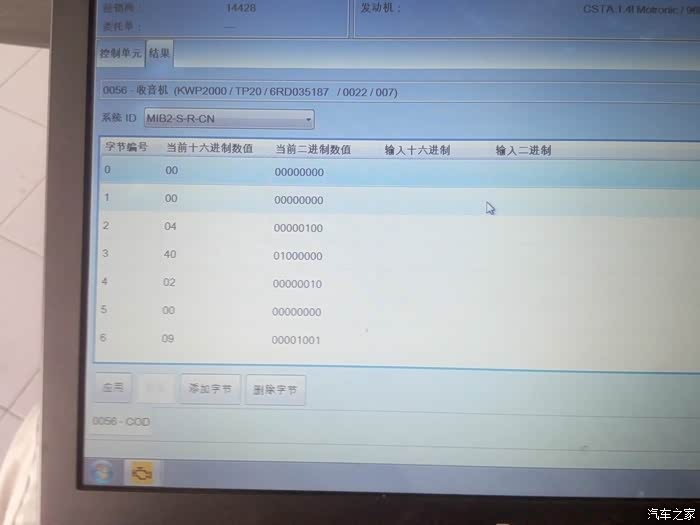

<div layer1="text-s"></div><div class="tz-paragraph">帖子介绍16款宝来安装5寸PQ平台MIB的倒车后视频的安装方法，前面接摄像头转换线的红色线接ACC,简称接开钥匙电。后面接解码盒的ACC，接倒车灯电源线《大众倒车灯电源线是《蓝黑色》一条线接搭铁。收音机改编码&nbsp;00&nbsp;00&nbsp;04&nbsp;&nbsp;《40》&nbsp;02&nbsp;00&nbsp;09。40是开通倒车视频的编码。接网关线这里要注意啦，&nbsp;转换线9号脚接网关T73a&nbsp;20号脚。&nbsp;转换线10号脚接网关T73a&nbsp;21号脚.。接好后用5053在网关注册列表把收音机56打钩。</div><div layer1="text-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g23/M01/AE/9F/userphotos/2016/07/12/21/500_wKgFXFeE65mAHIliAAXKUFYGSJ0160.jpg" style="width:700px;height:525px"/><div layer2="desc-s"></div><div class="description">图像出来啦，证明安装好啦。重要事情说3遍。&nbsp;&nbsp;&nbsp;&nbsp;一定要关后尾箱，一定要关后尾箱，一定要关后尾箱。不关是无法显示的。</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g16/M08/CD/08/userphotos/2016/07/12/21/500_wKjBx1eE6_yAB0RrAAxjOOcbpuM560.jpg" style="width:700px;height:525px"/><div layer2="desc-s"></div><div class="description">接好线测试</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g11/M05/CD/B9/userphotos/2016/07/12/21/500_wKgH0leE7BuATLbAAAfvw-tH14k045.jpg" style="width:700px;height:525px"/><div layer2="desc-s"></div><div class="description">挂倒车测试中。</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g8/M14/C6/25/userphotos/2016/07/12/21/500_wKjBz1eE9cWAVloqAAGvJM6pAZ8968.jpg" style="width:700px;height:394px"/><div layer2="desc-s"></div><div class="description">买的是牌照灯的摄像头，带10秒延时的。图片打码啦避免广告嫌疑。</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g6/M04/CC/94/userphotos/2016/07/12/21/500_wKgHzVeE8AuAEtXMAAhjIgcNb2s370.jpg" style="width:700px;height:525px"/><div layer2="desc-s"></div><div class="description">这是宝来1.4T旗舰版带倒车后视频的编码，第3字节的40就是开通倒车后视频的编码。</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g9/M01/D0/59/userphotos/2016/07/12/21/500_wKgH0FeE8LOAdtxiAAUgqhxYy-s827.jpg" style="width:700px;height:525px"/><div layer2="desc-s"></div><div class="description">这是原车的摄像头的效果。</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g13/M04/CD/66/userphotos/2016/07/12/21/500_wKjByleE8ymAf5DxAAZB0OTypNk401.jpg" style="width:700px;height:525px"/><div layer2="desc-s"></div><div class="description">原车的摄像头</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g9/M08/D0/5C/userphotos/2016/07/12/21/500_wKgH0FeE8-qADDU0AA_i24u9ml4653.jpg" style="width:700px;height:933px"/><div layer2="desc-s"></div><div class="description">原车的摄像头</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g7/M0B/CC/FD/userphotos/2016/07/12/21/500_wKjB0FeE9A-AJdwpAAqvAN9dJ-0020.jpg" style="width:700px;height:933px"/><div layer2="desc-s"></div><div class="description">原车接线红色接保险丝坐SC区31号保险，蓝黑接倒车灯电源。</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br />

全新16款宝来加装PQ平台5寸MIB安装教程。。。。
