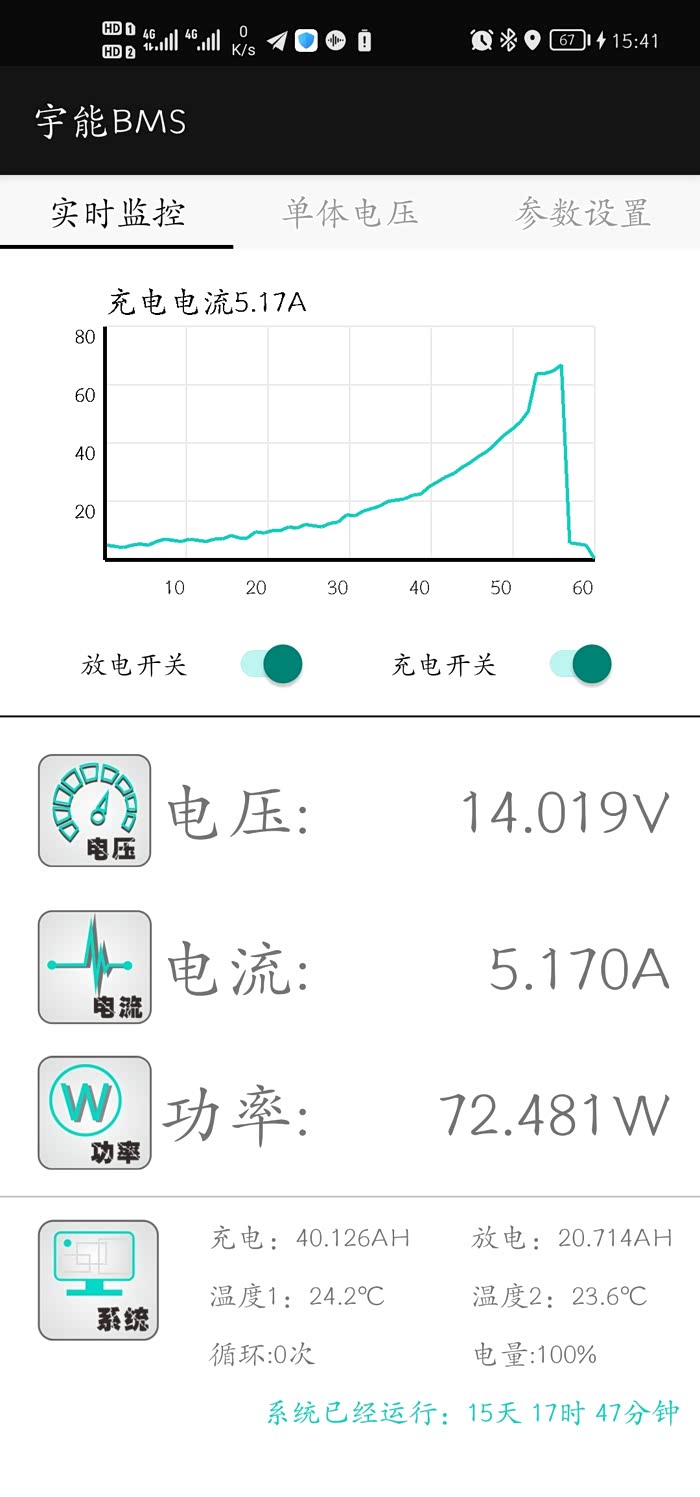

<div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g28/M07/E3/79/userphotos/2022/10/08/09/500_ChwFkmNA2XeAbBMCAAVeVNU2w7g050.jpg" style="height:2310px;width:1080px"  /><div layer2="desc-s"></div><div class="deXss ion">充电电流曲线，停一晚上，1分钟内充满电</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g28/M08/E3/79/userphotos/2022/10/08/09/500_ChwFkmNA2XiAeNWXAAS56Gz4KPQ860.jpg" style="height:2310px;width:1080px"  /><div layer2="desc-s"></div><div class="deXss ion">各项保护参数自由设置</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g28/M09/E3/79/userphotos/2022/10/08/09/500_ChwFkmNA2XmAFmz8AAR49TQwxbE751.jpg" style="height:2310px;width:1080px"  /><div layer2="desc-s"></div><div class="deXss ion">各项保护参数自由设置</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-picture"><img src="http://club2.autoimg.cn/album/g28/M0B/E3/79/userphotos/2022/10/08/09/500_ChwFkmNA2XmAB-NaAAdHU93c6w8489.jpg" style="height:2310px;width:1080px"  /></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g28/M01/D3/6C/userphotos/2022/10/08/09/500_ChxkmmNA2XqAdqEHAAqqr7sXieU846.jpg" style="height:1595px;width:1080px"  /><div layer2="desc-s"></div><div class="deXss ion">买的半成品保护板，自己焊接mos管</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g30/M0A/81/41/userphotos/2022/10/08/09/500_ChwFlGNA2XuAUp0VAA4oIK7NBuc613.jpg" style="height:4000px;width:3000px"  /><div layer2="desc-s"></div><div class="deXss ion">焊接好，充电-和电池-&nbsp;用紫铜垫片加固，后来用洗板水洗了，好看多了</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g30/M01/81/41/userphotos/2022/10/08/09/500_ChwFlGNA2X2AVnz0AAzPQZGC-uc939.jpg" style="height:4000px;width:3000px"  /><div layer2="desc-s"></div><div class="deXss ion">焊接好，充电-和电池-&nbsp;用紫铜垫片加固，后来用洗板水洗了，好看多了</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g25/M05/E8/60/userphotos/2022/10/08/09/500_ChwFj2NA2X2AUjoFAAv3aoj5msU754.jpg" style="height:4000px;width:3000px"  /><div layer2="desc-s"></div><div class="deXss ion">洗过的板子大家看看，正极连接线用的8.3方*3根，负极也是，电池之间的连接片用的25方的镀锡紫铜片</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g25/M07/E8/60/userphotos/2022/10/08/09/500_ChwFj2NA2X6AGx2AAA1hPb5pD4I675.jpg" style="height:4000px;width:3000px"  /><div layer2="desc-s"></div><div class="deXss ion">磷酸铁锂电池启动cca和内阻</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g30/M08/D2/49/userphotos/2022/10/08/09/500_ChsFJ2NA2YCAdwqjAAqDg0qw_bo201.jpg" style="height:4000px;width:3000px"  /><div layer2="desc-s"></div><div class="deXss ion">原厂电瓶的内阻和cca，电瓶说坏就坏了，哎</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g25/M08/C2/9F/userphotos/2022/10/08/09/500_ChxkqWNA2YGAViqjAAtMRGBh5j0014.jpg" style="height:4000px;width:3000px"  /><div layer2="desc-s"></div><div class="deXss ion">磷酸铁锂电池启动最低电压12.76v&nbsp;</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g30/M02/D2/49/userphotos/2022/10/08/09/500_ChsFJ2NA2YKAMxOCAArbSA3XbJY827.jpg" style="height:4000px;width:3000px"  /><div layer2="desc-s"></div><div class="deXss ion">原车电瓶的启动电压，说坏就坏了</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="text-s"></div><div class="tz-paragraph">原厂调节器输出14.5v，到冬天还要高点，已经不怎么适配我的磷酸铁锂电池了，我朋友刚好做调节器的，问他要了二块差不多的调节器板子，更改输出电压到14v</div><div layer1="text-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g28/M0A/E3/79/userphotos/2022/10/08/09/500_ChwFkmNA2YOAVZWmAA3vULu8sIA441.jpg" style="height:4000px;width:3000px"  /><div layer2="desc-s"></div><div class="deXss ion">原厂发电机的调节器，是裸芯片的，无法调节电压输出和下图对比就知道了</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g30/M09/81/41/userphotos/2022/10/08/09/500_ChwFlGNA2YSAQca1AAynCVYb47w908.jpg" style="height:4000px;width:3000px"  /><div layer2="desc-s"></div><div class="deXss ion">我朋友刚好做调节器的，问他要了二块差不多的调节器板子，更改输出电压到14v</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g28/M06/E3/79/userphotos/2022/10/08/09/500_ChwFkmNA2YWACussAAoIX48a9G0454.jpg" style="height:4000px;width:3000px"  /><div layer2="desc-s"></div><div class="deXss ion">焊接好，打胶封装</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-picture"><img src="http://club2.autoimg.cn/album/g25/M00/C2/9F/userphotos/2022/10/08/09/500_ChxkqWNA2YaAY3SKAAnJIf3eZ7E879.jpg" style="height:4000px;width:3000px"  /></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g25/M03/C2/9F/userphotos/2022/10/08/09/500_ChxkqWNA2YeAJ5DIAAn4tLuZX-I794.jpg" style="height:4000px;width:3000px"  /><div layer2="desc-s"></div><div class="deXss ion">调节器焊点尺寸和每个焊点的定义</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g30/M00/7E/D1/userphotos/2022/10/08/09/500_ChxknGNA2YiADiHZAApMQAABERQ255.jpg" style="height:4000px;width:3000px"  /><div layer2="desc-s"></div><div class="deXss ion">调节器焊点定义图</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g28/M04/E3/79/userphotos/2022/10/08/09/500_ChwFkmNA2YmAPh4vAAq-2PbTEIc706.jpg" style="height:3000px;width:4000px"  /><div layer2="desc-s"></div><div class="deXss ion">调节器板子尺寸，要自己更换的可以看看</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-picture"><img src="http://club2.autoimg.cn/album/g30/M04/81/41/userphotos/2022/10/08/09/500_ChwFlGNA2YqAWjrHAAy6f-NTqLc903.jpg" style="height:4000px;width:3000px"  /></div><div layer1="img-e"></div><br />

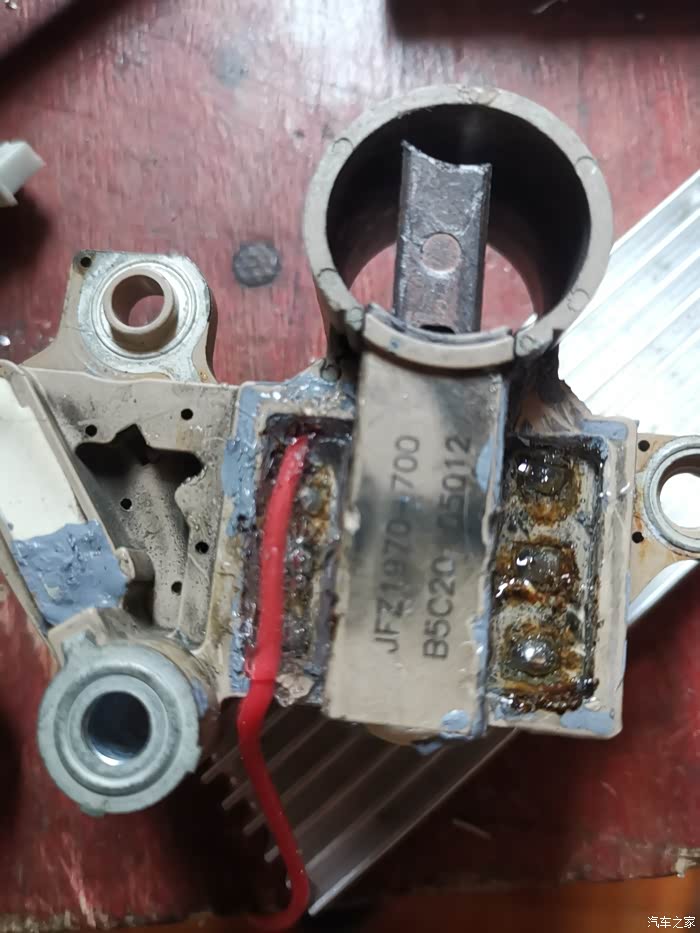

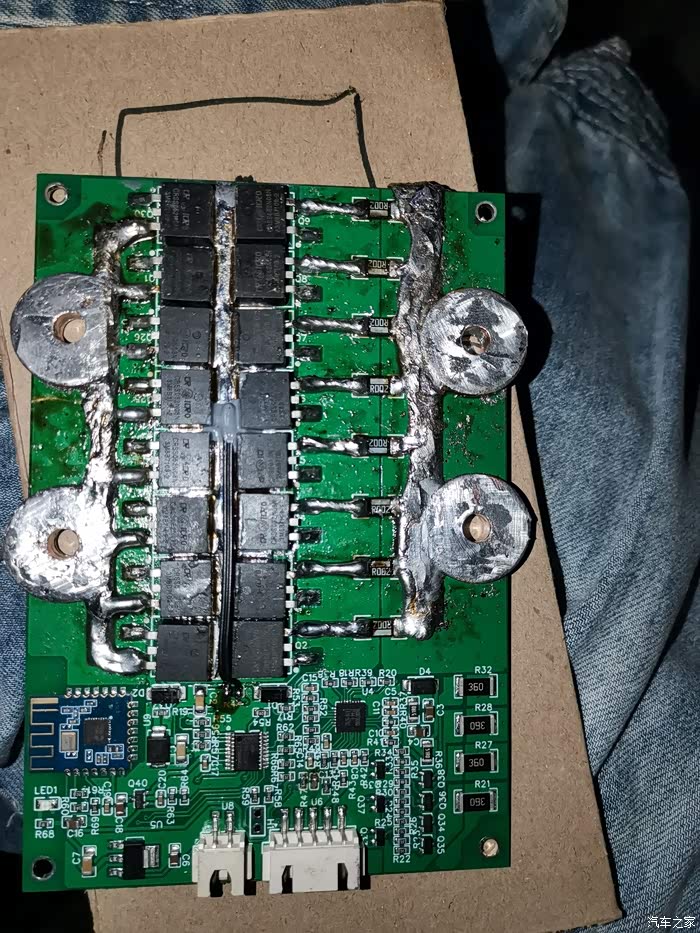

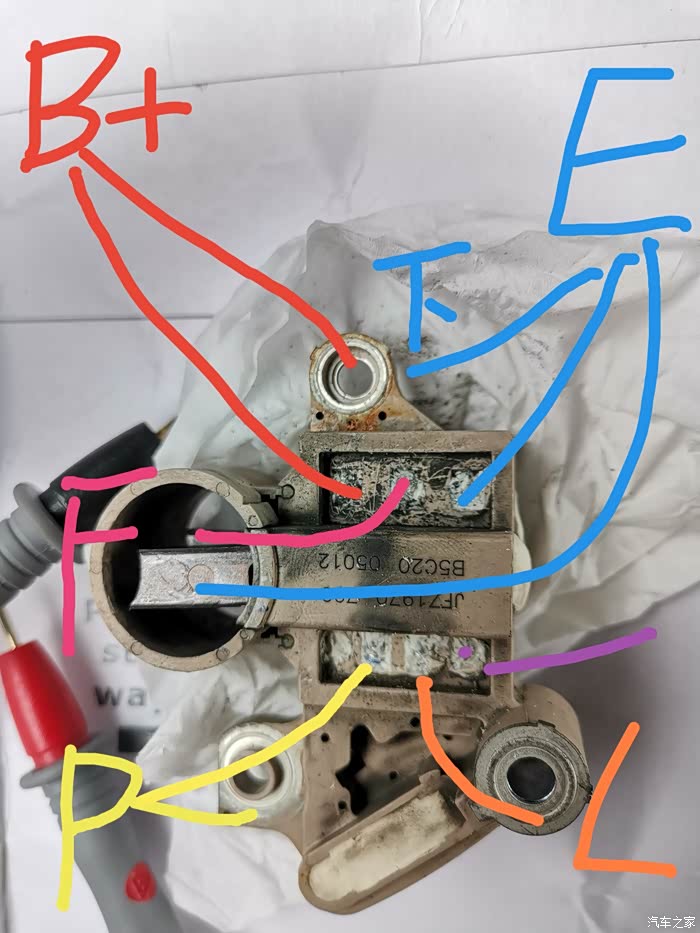

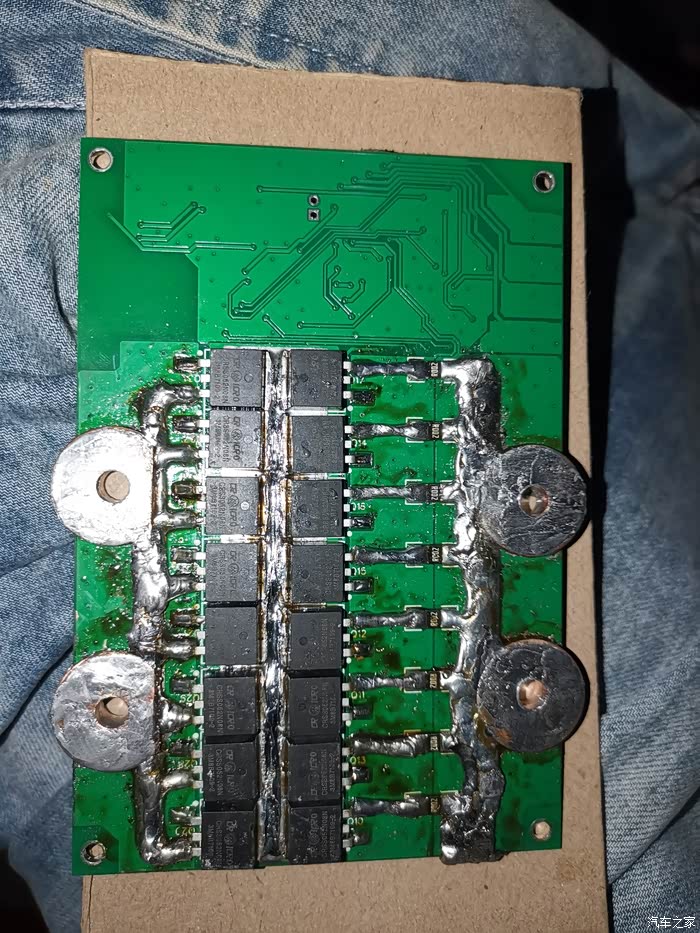

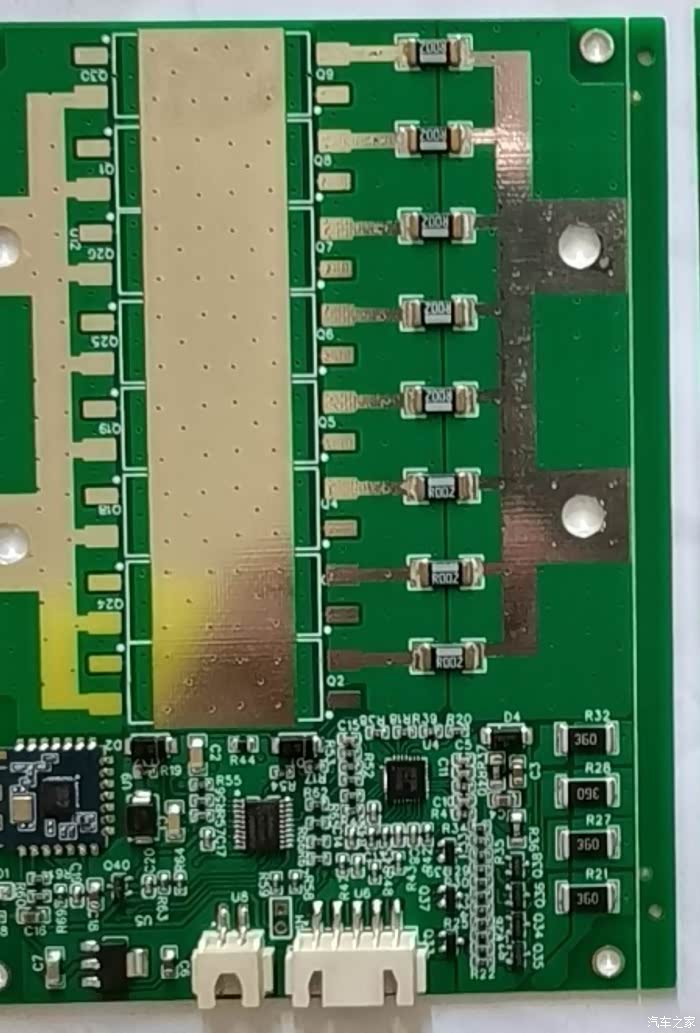

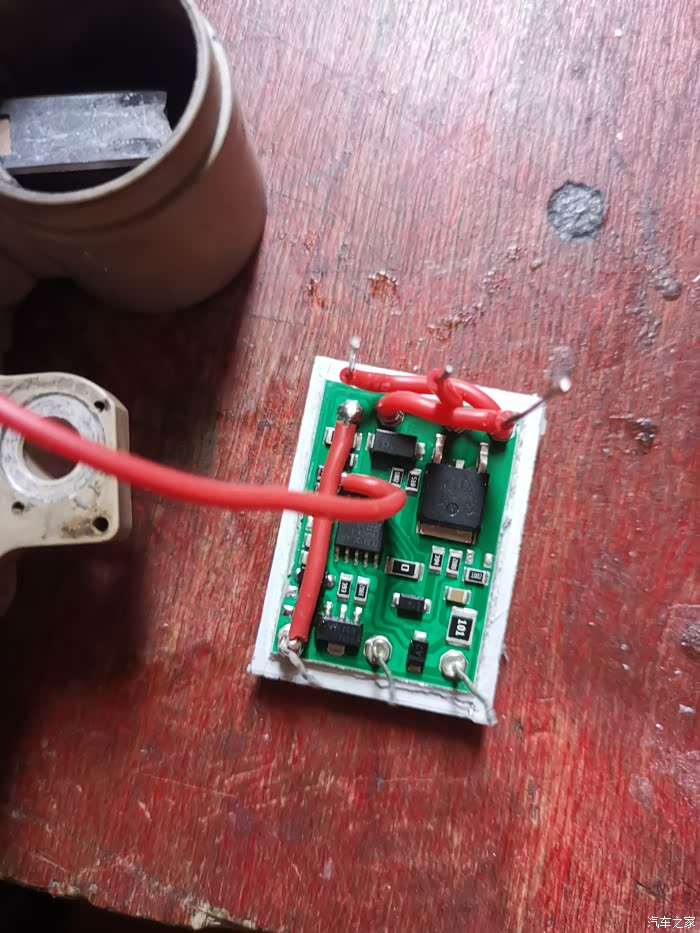

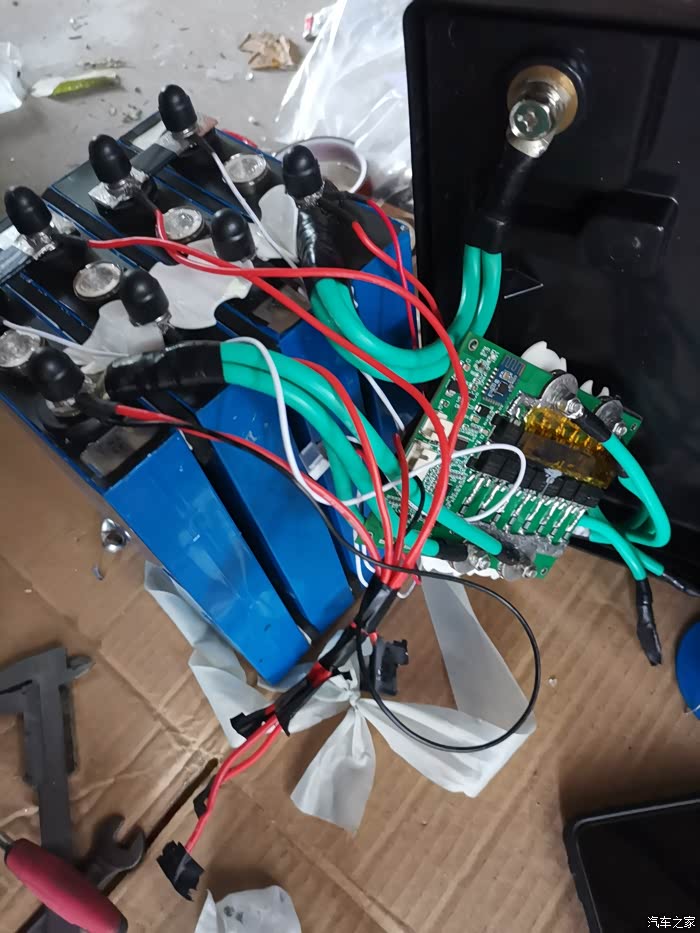

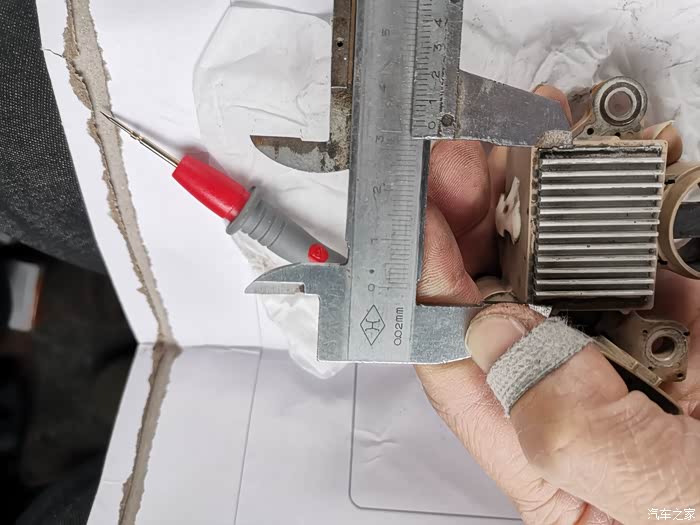

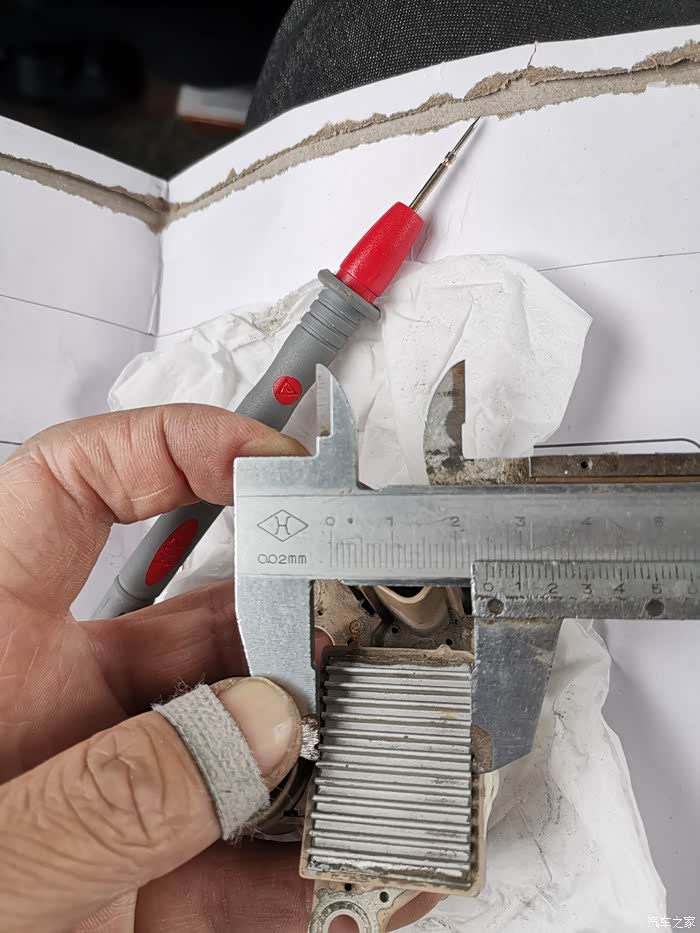

给组装的磷酸铁锂电池升级蓝牙智能保护板和更改发电机调节器电压
