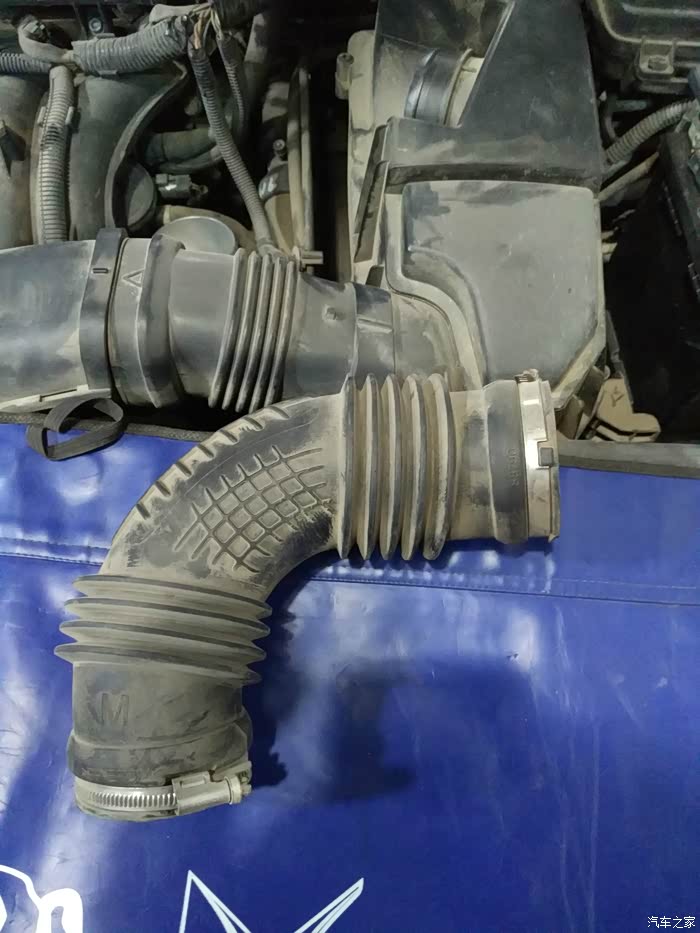

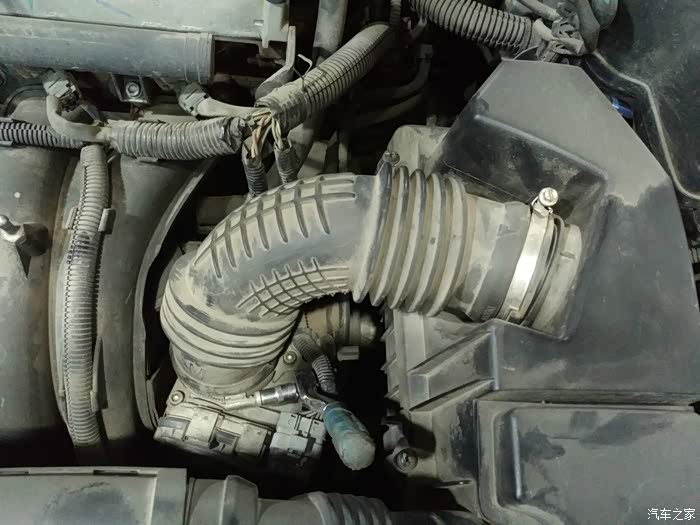

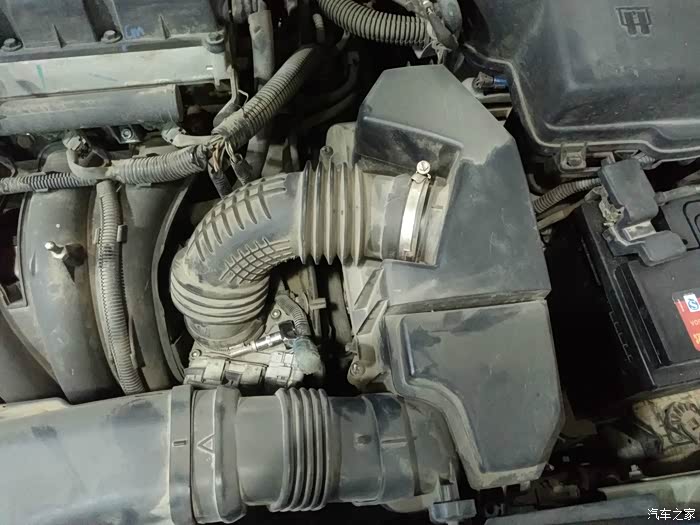

<div layer1="text-s"></div><div class="tz-paragraph">之前一直有很多的车友要求一个空气滤芯的教程，最近忙一直也没抽时间上来发个帖，<br />图片有点少，但是足可以看明白，</div><div layer1="text-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g6/M0B/43/60/userphotos/2017/01/13/15/500_wKgH3Fh4eyaALbXcAAkj31-fSCE163.jpg" style="height:525px;width:700px"  /><div layer2="desc-s"></div><div class="description">首先把连接空滤和节气门这根管拆掉，不拆掉也可以，我个人喜欢拆掉而且还可以顺便看看节气门脏不脏，<br />&nbsp;&nbsp;所用工具：七个内六角也可以，一字改锥也可以，一般下面的需要七个的内六角套头，小快速的，</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g6/M03/EC/AC/userphotos/2017/01/13/15/500_wKgHzVh4eyaAaedGAAlFffs69JE067.jpg" style="height:525px;width:700px"  /><div layer2="desc-s"></div><div class="description">如图</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g21/M10/CD/24/userphotos/2017/01/13/15/500_wKgFWlh4eyaAEA2DAA1UYF3r7Ig598.jpg" style="height:933px;width:700px"  /><div layer2="desc-s"></div><div class="description">很好拆&nbsp;&nbsp;字幕带M的是朝节气门哪边的</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g21/M00/CB/B8/userphotos/2017/01/13/15/500_wKjBwlh4eyaAR9ATAAyWZCTLNWg870.jpg" style="height:933px;width:700px"  /><div layer2="desc-s"></div><div class="description">这个是八个的螺丝，必须要拆掉</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g21/M14/C8/6E/userphotos/2017/01/13/15/500_wKgFVVh4ey-AN4EjAAxtraRfe0U151.jpg" style="height:933px;width:700px"  /><div layer2="desc-s"></div><div class="description">如图</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g21/M15/CB/BA/userphotos/2017/01/13/15/500_wKjBwlh4ezeAIVLnAAk-MTM_Oxc729.jpg" style="height:525px;width:700px"  /><div layer2="desc-s"></div><div class="description">在就是空滤一周有五颗螺丝，螺丝是T25的，有T20的改锥也可以的</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br />

C5 更换空气滤芯教程
