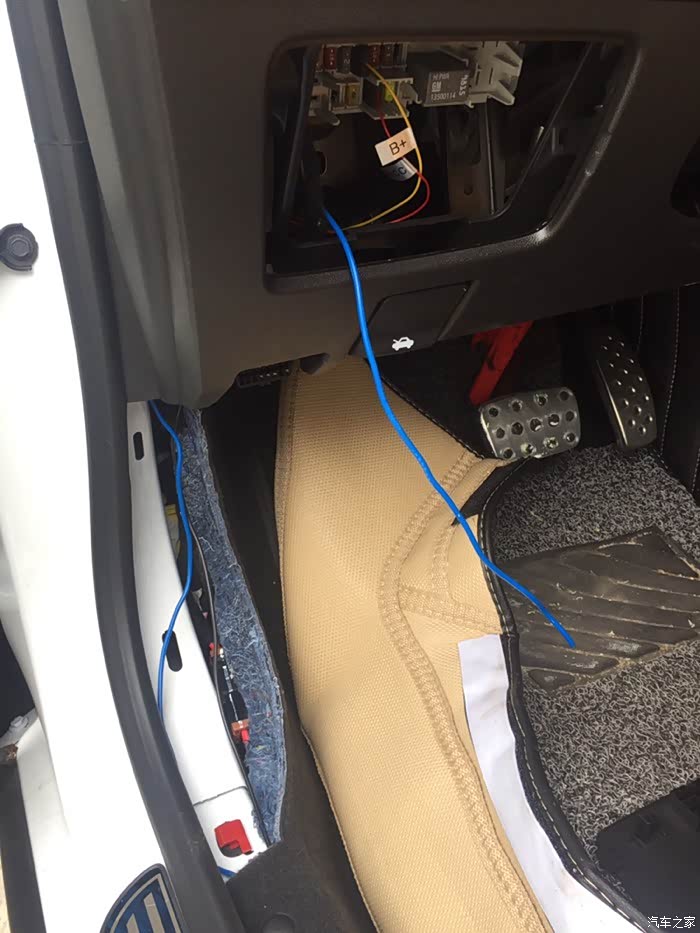

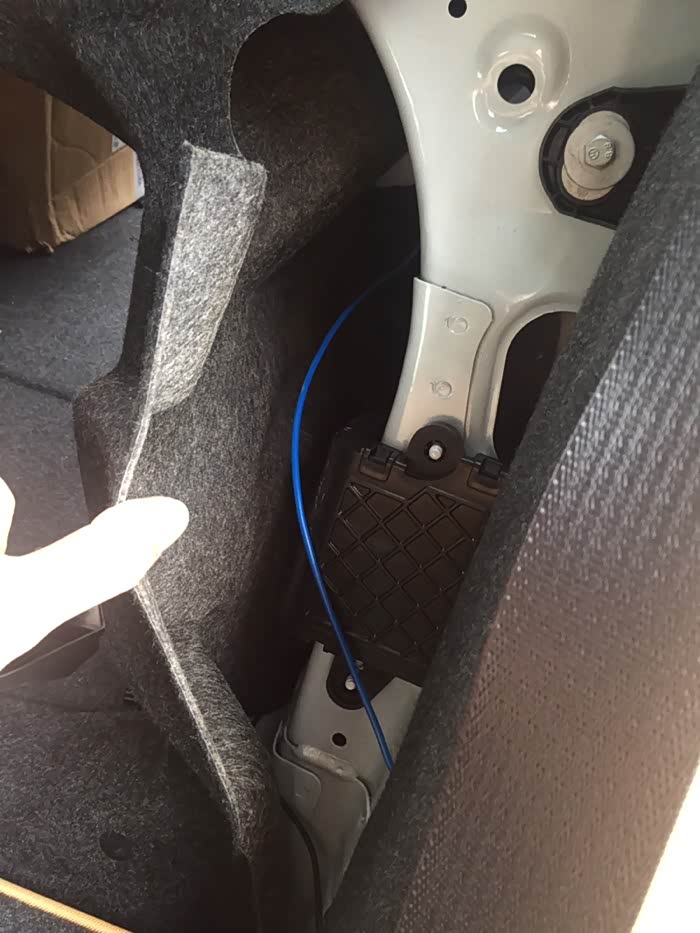

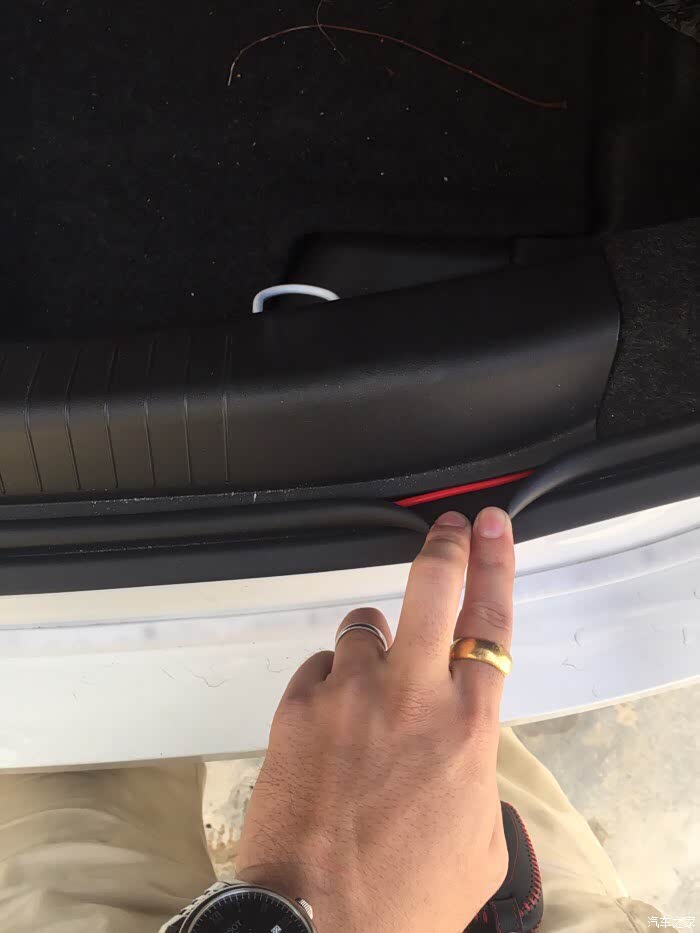

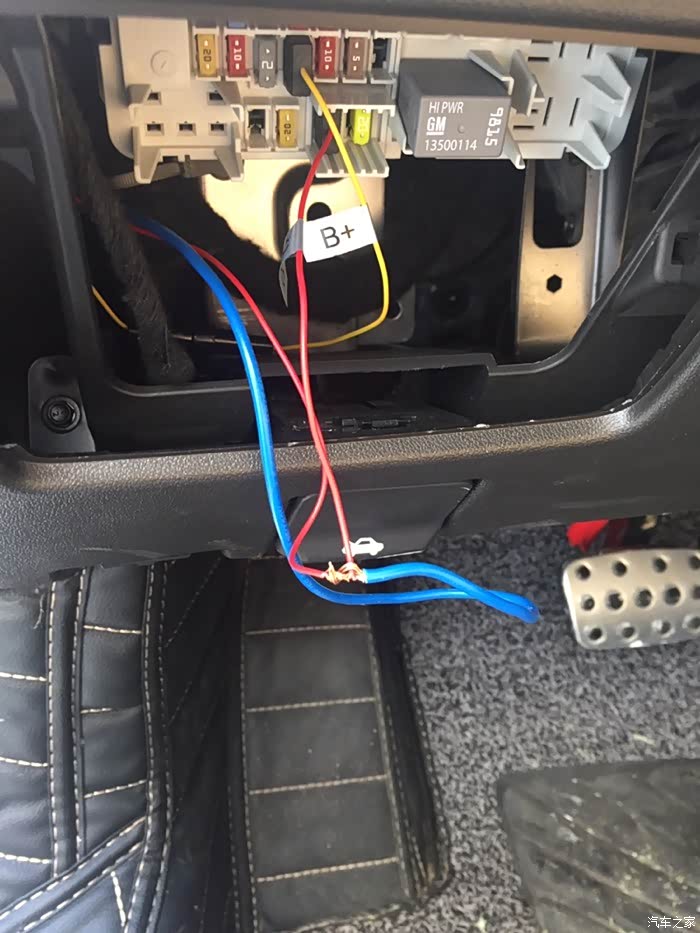

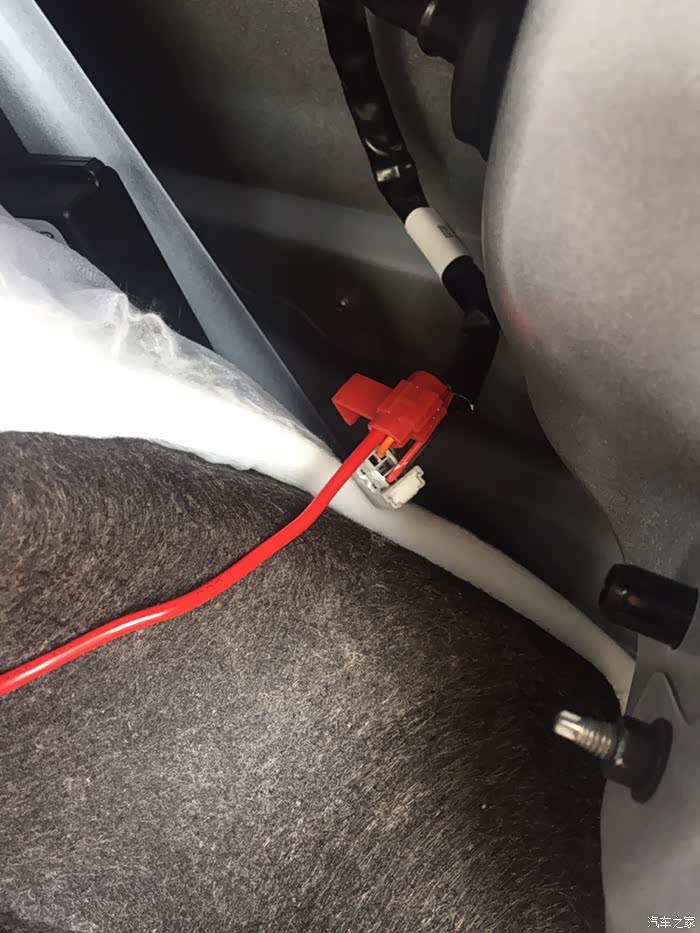

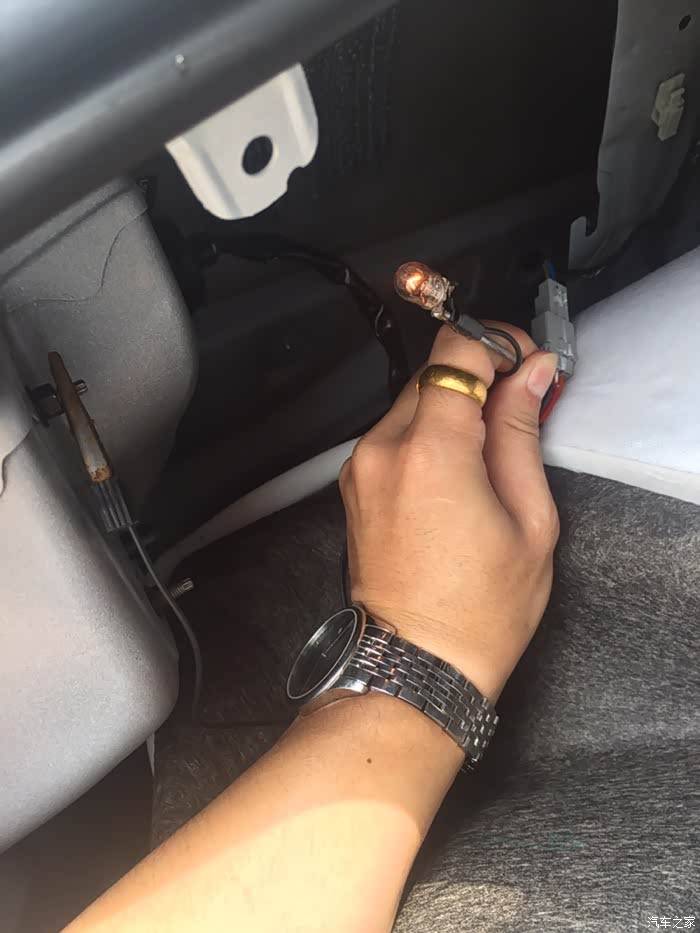

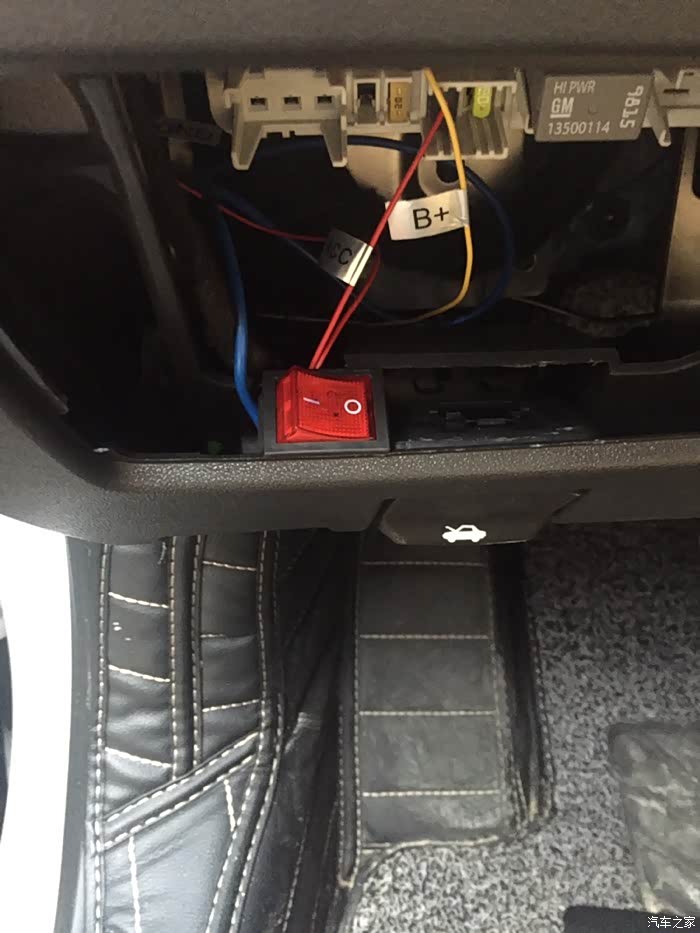

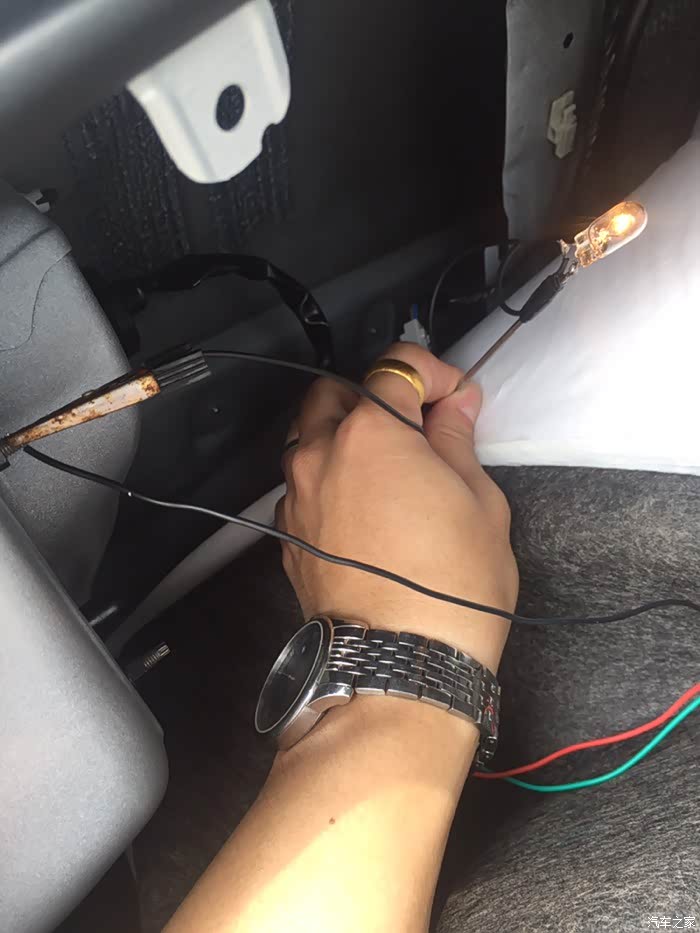

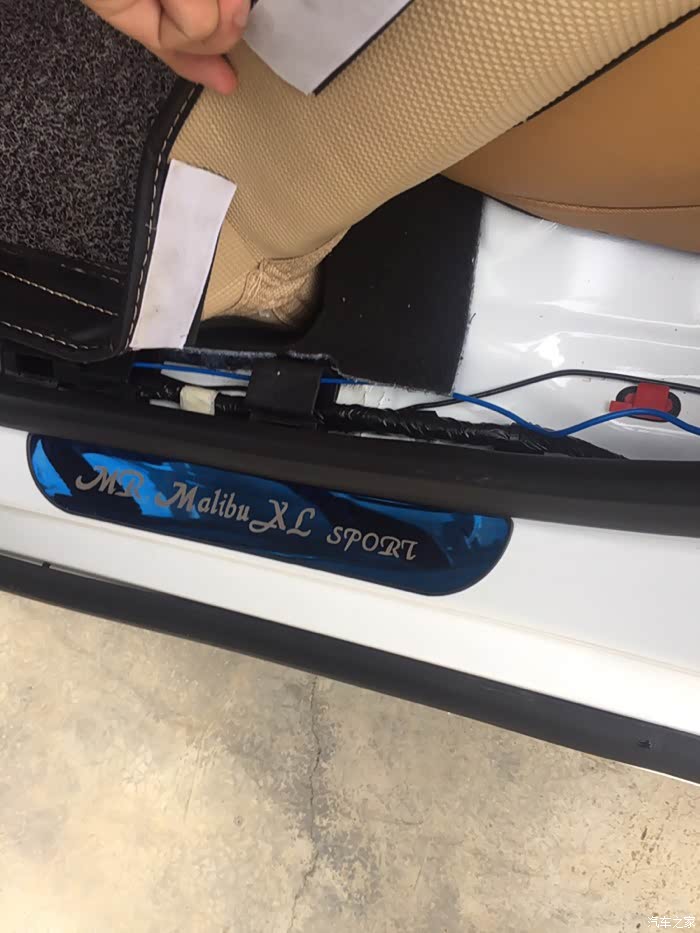

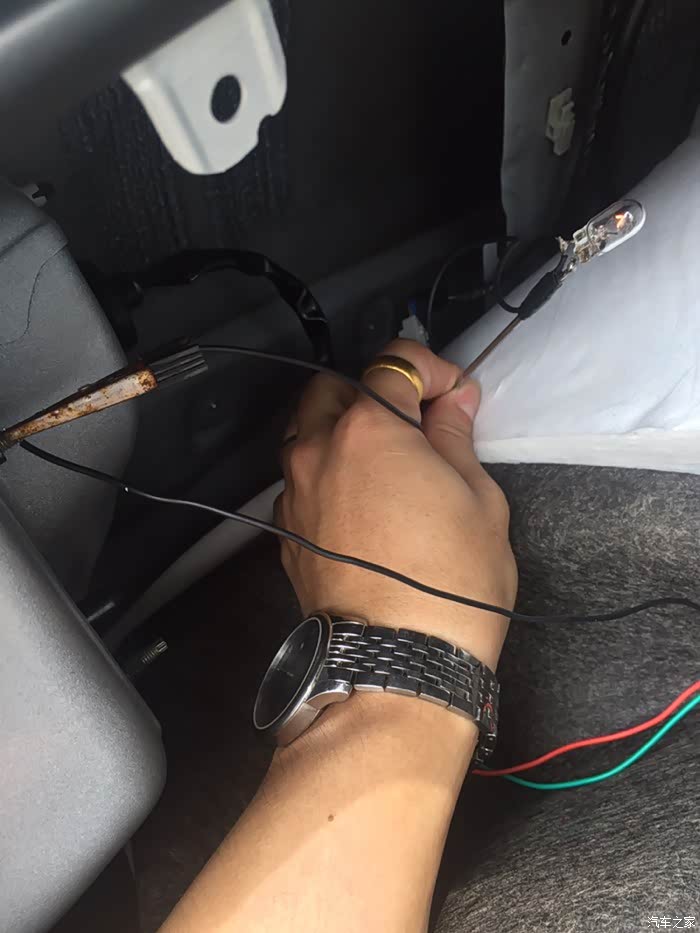

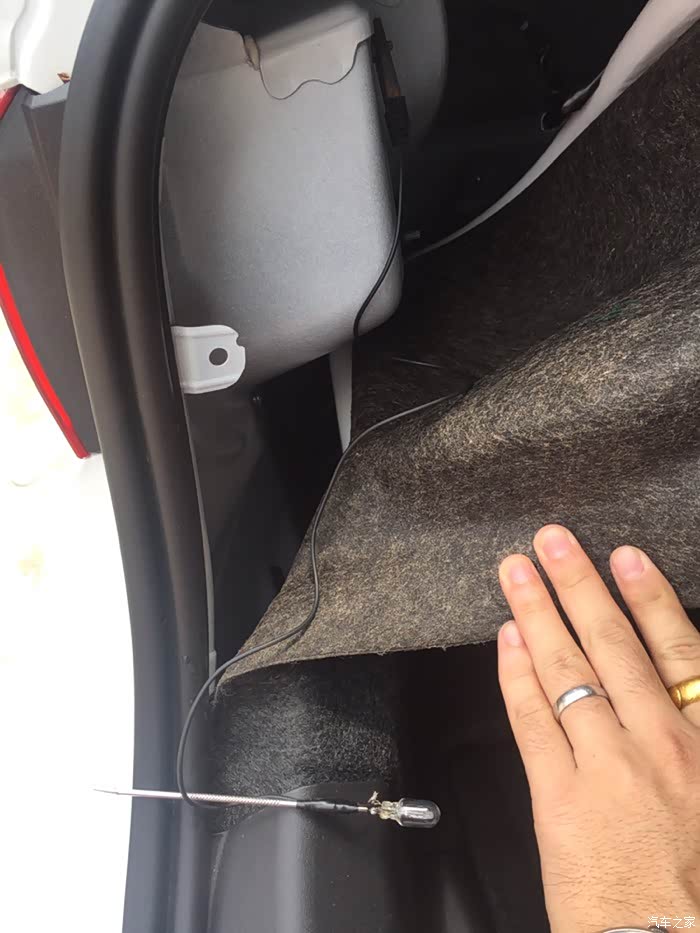

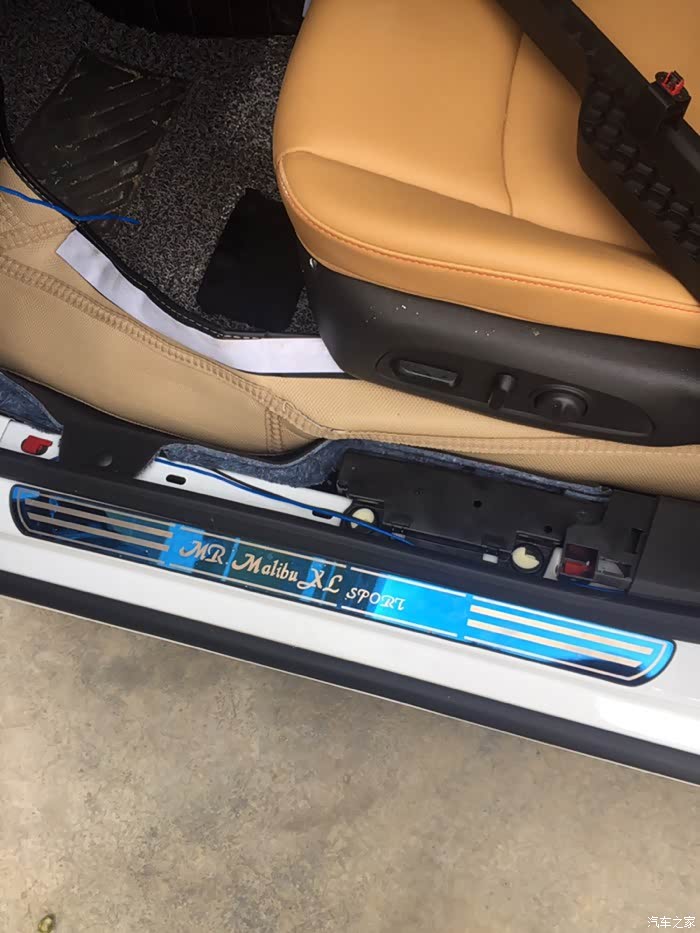

<div layer1="text-s"></div><div class="tz-paragraph">废话不多说，直接上图</div><div layer1="text-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g21/M14/4F/5C/userphotos/2017/04/22/16/500_wKjBwlj7Gz2ALHIsAAIQ7_ytfpY257.jpg" style="width:0.000000px;height:0.000000px"/><div layer2="desc-s"></div><div class="description">走线ACC到后备箱</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g4/M0A/74/18/userphotos/2017/04/22/16/500_wKjB01j7Gz6AeWt-AAImlIxWqRk542.jpg" style="width:0.000000px;height:0.000000px"/><div layer2="desc-s"></div><div class="description">前面开始走acc线</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g22/M08/89/8C/userphotos/2017/04/22/16/500_wKgFW1j7Gz-AXdE4AAIRpFRwOJ0630.jpg" style="width:0.000000px;height:0.000000px"/><div layer2="desc-s"></div><div class="description">保险和位置</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g21/M09/4D/DB/userphotos/2017/04/22/16/500_wKgFVVj7G0GATVBfAAI53eE9ubI363.jpg" style="width:0.000000px;height:0.000000px"/><div layer2="desc-s"></div><div class="description">这里是接行车记录仪acc线明天加个开关以防被交警查</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g4/M00/77/DA/userphotos/2017/04/22/16/500_wKgH2lj7G0KARfkJAAJTcxTkkVA975.jpg" style="width:0.000000px;height:0.000000px"/><div layer2="desc-s"></div><div class="description">走一条线到右边接又转向灯</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g4/M04/71/63/userphotos/2017/04/22/16/500_wKgHy1j7G0SALffUAAG7ZH4xiSE888.jpg" style="width:0.000000px;height:0.000000px"/><div layer2="desc-s"></div><div class="description">转向灯线路</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g4/M07/74/19/userphotos/2017/04/22/16/500_wKjB01j7G0WAIeHvAAHGo0vzTR8440.jpg" style="width:0.000000px;height:0.000000px"/><div layer2="desc-s"></div><div class="description">刹车灯线路</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g21/M04/4D/DC/userphotos/2017/04/22/16/500_wKgFVVj7G0aAZzmmAAKcwlgKBbM818.jpg" style="width:0.000000px;height:0.000000px"/><div layer2="desc-s"></div><div class="description">准备接线</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-picture"><img src="http://club2.autoimg.cn/album/g22/M10/89/8D/userphotos/2017/04/22/16/500_wKgFW1j7G0iASLLdAALoIG0ALeM522.jpg" style="width:0.000000px;height:0.000000px"/></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g22/M03/84/6E/userphotos/2017/04/22/16/500_wKjBwVj7G0mAKCoUAAHFVALS5U0359.jpg" style="width:0.000000px;height:0.000000px"/><div layer2="desc-s"></div><div class="description">测试线路</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g4/M0D/74/1A/userphotos/2017/04/22/16/500_wKjB01j7G0qAcI7HAAHwqj3BiaI156.jpg" style="width:0.000000px;height:0.000000px"/><div layer2="desc-s"></div><div class="description">测试工具<img src="https://z.autoimg.cn/creator/packages/emoji/smiley/13.gif" class="spic" /></div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g22/M13/89/8D/userphotos/2017/04/22/16/500_wKgFW1j7G0yAKV9mAAJmIsX0y40120.jpg" style="width:0.000000px;height:0.000000px"/><div layer2="desc-s"></div><div class="description">前面换了氙气大灯55w的够用了</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g4/M09/77/DC/userphotos/2017/04/22/16/500_wKgH2lj7G02AUeVTAAIcwdpOvxw947.jpg" style="width:0.000000px;height:0.000000px"/><div layer2="desc-s"></div><div class="description">进光</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g22/M06/89/8E/userphotos/2017/04/22/16/500_wKgFW1j7G06AAu4dAAHKM3KmpcM676.jpg" style="width:0.000000px;height:0.000000px"/><div layer2="desc-s"></div><div class="description">后备箱灯&nbsp;打开示宽灯&nbsp;和刹车灯效果。</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g4/M11/71/64/userphotos/2017/04/22/16/500_wKgHy1j7G1CAXZCSAAHVHaXRt1c373.jpg" style="width:0.000000px;height:0.000000px"/><div layer2="desc-s"></div><div class="description">双闪灯效果中往两边跑</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g4/M01/74/1A/userphotos/2017/04/22/16/500_wKjB01j7G1GALbN0AAHnif1SFDI817.jpg" style="width:0.000000px;height:0.000000px"/><div layer2="desc-s"></div><div class="description">又转向灯</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g22/M03/89/8E/userphotos/2017/04/22/16/500_wKgFW1j7G1OAUoshAAH3OsL-SjM242.jpg" style="width:0.000000px;height:0.000000px"/><div layer2="desc-s"></div><div class="description">左转向灯</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g8/M0B/78/F3/userphotos/2017/04/22/16/500_wKgH3lj7G1SAG6uxAAHNKOrSpBM492.jpg" style="width:0.000000px;height:0.000000px"/><div layer2="desc-s"></div><div class="description">日间行车灯效果</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g22/M10/89/8F/userphotos/2017/04/22/16/500_wKgFW1j7G1aABc84AAHp1uglOdc005.jpg" style="width:0.000000px;height:0.000000px"/><div layer2="desc-s"></div><div class="description">走线图</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g22/M01/89/8F/userphotos/2017/04/22/16/500_wKgFW1j7G1eAfmdoAAKRUVqrRQE138.jpg" style="width:0.000000px;height:0.000000px"/><div layer2="desc-s"></div><div class="description">没有人在家所以自己找个大冬瓜来帮我踩刹车了<img src="https://z.autoimg.cn/creator/packages/emoji/smiley/20.gif" class="spic" /></div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g22/M05/89/8F/userphotos/2017/04/22/16/500_wKgFW1j7G1iAIUGTAAI2SJDwYhY710.jpg" style="width:0.000000px;height:0.000000px"/><div layer2="desc-s"></div><div class="description">自己做的测试线路小工具</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g8/M06/74/27/userphotos/2017/04/22/16/500_wKgHz1j7G1qAING-AAGeRScc0MI080.jpg" style="width:0.000000px;height:0.000000px"/><div layer2="desc-s"></div><div class="description">右边转向灯线路走在防水条下面</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g4/M06/77/DD/userphotos/2017/04/22/16/500_wKgH2lj7G1uAawDgAAFBDcHo50g851.jpg" style="width:0.000000px;height:0.000000px"/><div layer2="desc-s"></div><div class="description">把防水条拉起来走线进去就可以了</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="text-s"></div><div class="tz-paragraph">大功告成<img src="https://z.autoimg.cn/creator/packages/emoji/smiley/82.gif" class="spic" /><br />效果优酷链接，借用雅阁的http://m.youku.com/video/id_XMjY1NDI1MjAwOA==.html?sharefrom=iphone&amp;from=singlemessage&amp;isappinstalled=1</div><div layer1="text-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g11/M12/7B/D2/userphotos/2017/04/24/20/500_wKgH4Vj98JyAXeKWAAD3XPPJ9IE851.jpg" style="width:0.000000px;height:0.000000px"/><div layer2="desc-s"></div><div class="description">晚上的效果图</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g8/M0D/79/45/userphotos/2017/04/24/20/500_wKgHz1j98JyAUK64AADlOS4VwYo231.jpg" style="width:0.000000px;height:0.000000px"/><div layer2="desc-s"></div><div class="description">现实看很好看！个人喜欢</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g8/M13/7E/29/userphotos/2017/04/24/20/500_wKgH3lj98J2ASq0nAAH9wJNqK_E497.jpg" style="width:0.000000px;height:0.000000px"/><div layer2="desc-s"></div><div class="description">加了开关，遇到交警就关掉</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br />

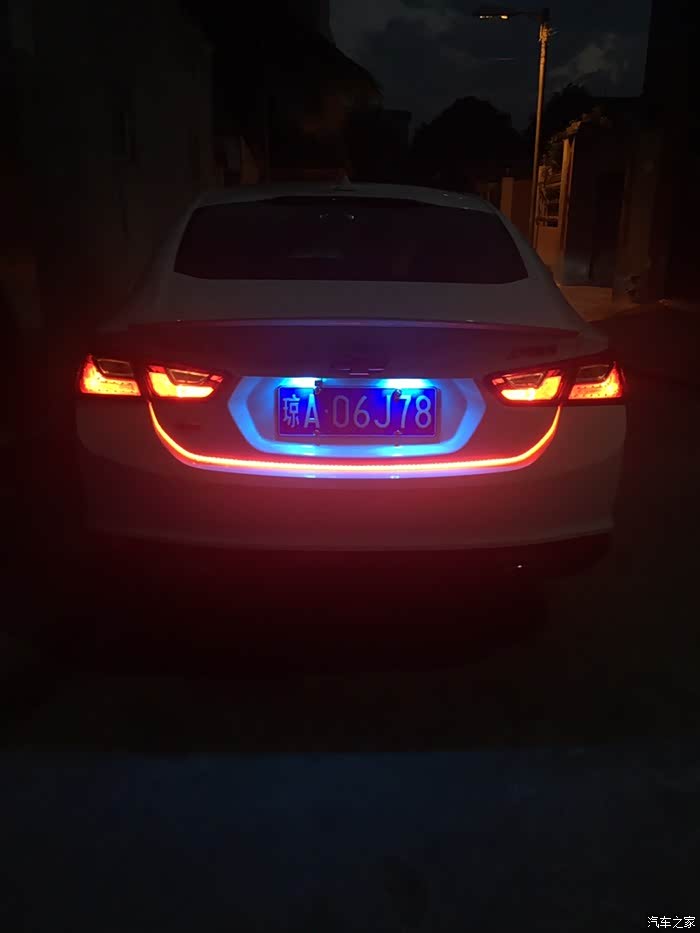

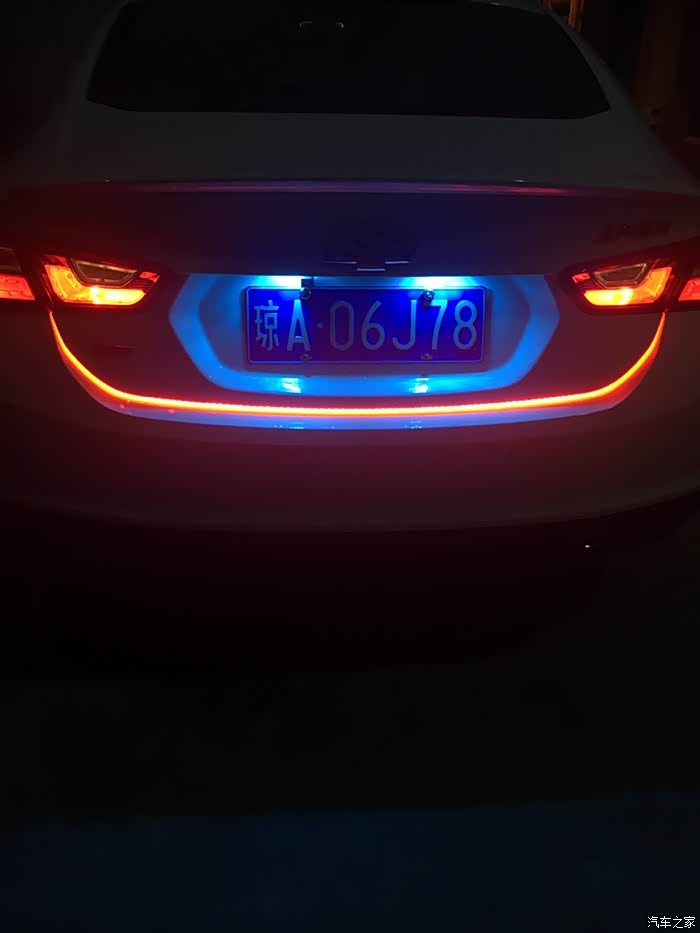

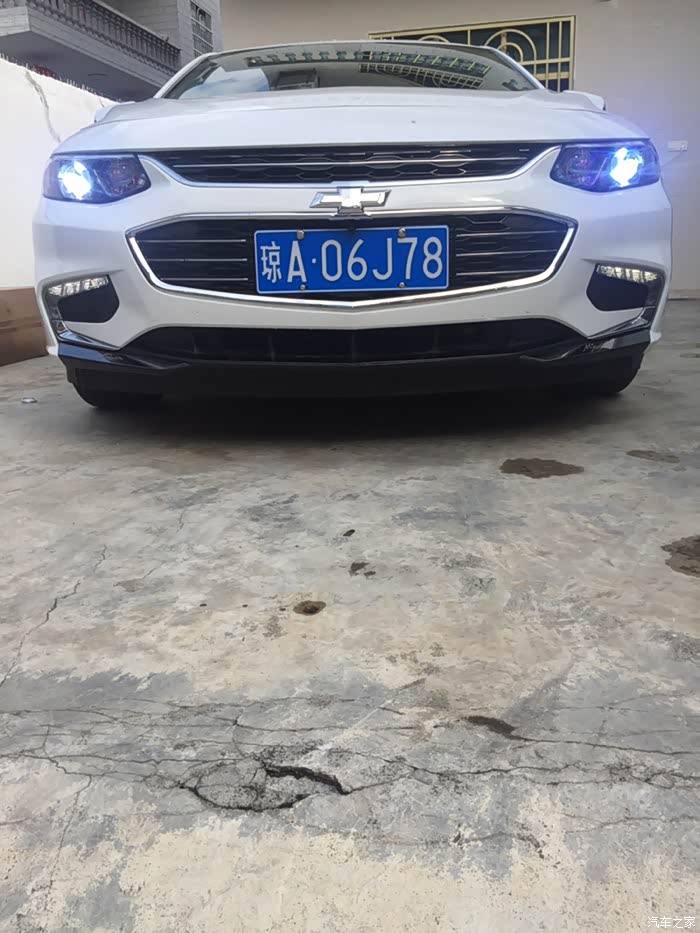

小改灯光篇
