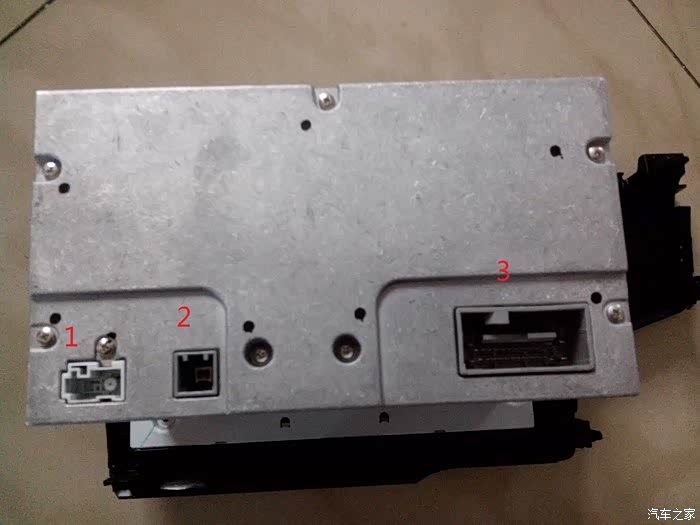

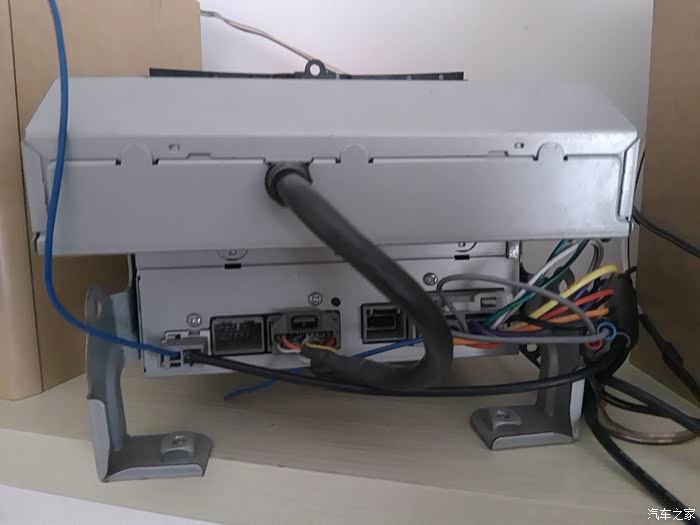

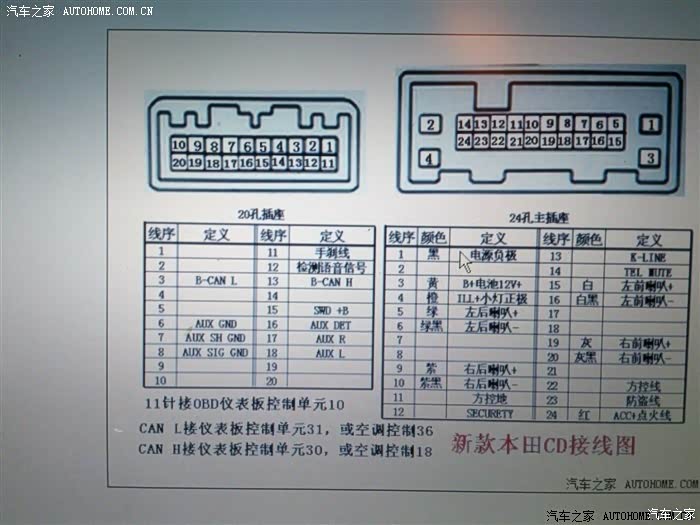

<div layer1="text-s"></div><div class="tz-paragraph">看到坛里有飞友在问，如何把拆下来的CD机利用起来，改家用，我就想大概整理个东西，给坛友某点福利<br /><br /></div><div layer1="text-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club0.autoimg.cn/album/g15/M11/2F/61/userphotos/2016/01/06/14/500_wKgH5VaMtr-AdJj6AAEv55-8qJk986.jpg" style="width:700px;height:525px"/><div layer2="desc-s"></div><div class="description">1是收音机天线；2是USB转接口；3是电源及喇叭线</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="text-s"></div><div class="tz-paragraph"><br /><br />要改家用的话，可以在马云家买本田改家用套线，另外再买220V转12V电源一个（记得要5A以上的），再外加喇叭一对（最好是4欧的），材料就这些</div><div layer1="text-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club0.autoimg.cn/album/g10/M03/32/09/userphotos/2016/01/06/14/500_wKgH4FaMt3GANUwnAAGRyCpefu8004.jpg" style="width:700px;height:525px"/><div layer2="desc-s"></div><div class="description">接线图的话看附图右侧24P插口，12V电源正极接3针黄线4针橙色，负极接1针黑线<br />一对喇叭就接5、6、9、10就可以了分别是（绿+/绿黑-、紫+/紫黑-）</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club1.autoimg.cn/album/g9/M08/31/95/userphotos/2016/01/06/14/500_wKgH0FaMt7aAdpafAAPUt54eRiE602.jpg" style="width:700px;height:525px"/><div layer2="desc-s"></div><div class="description">老锋范机</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club0.autoimg.cn/album/g7/M08/31/34/userphotos/2016/01/06/14/500_wKjB0FaMuAKACxNxAAQkgvMqUdc735.jpg" style="width:700px;height:525px"/><div layer2="desc-s"></div><div class="description">尾部特写</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club0.autoimg.cn/album/g16/M00/31/B6/userphotos/2016/01/06/14/500_wKgH11aMuDiAGcMwAAU_I2pISVQ660.jpg" style="width:700px;height:525px"/><div layer2="desc-s"></div><div class="description">二代大众机</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club0.autoimg.cn/album/g16/M12/31/CE/userphotos/2016/01/06/14/500_wKjBx1aMuFOAPh4vAAYguPZgcjQ769.jpg" style="width:700px;height:525px"/><div layer2="desc-s"></div><div class="description">二代丰田机</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club1.autoimg.cn/album/g8/M06/34/87/userphotos/2016/01/06/14/500_wKgHz1aMuHKASCYCAAP_JHSiKfg318.jpg" style="width:700px;height:525px"/><div layer2="desc-s"></div><div class="description">二代尾部特写</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g22/M07/BF/0C/userphotos/2016/03/09/15/500_wKgFW1bf0iCAdPoqAAlfZmlVVYI873.jpg" style="width:700px;height:525px"/><div layer2="desc-s"></div><div class="description">二代机内部图</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club1.autoimg.cn/album/g4/M01/31/77/userphotos/2016/01/06/14/500_wKjB01aMuLyAcQWfAAXxQ_tpXBg773.jpg" style="width:700px;height:525px"/><div layer2="desc-s"></div><div class="description">三代福克斯机</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club0.autoimg.cn/album/g17/M0E/2C/5D/userphotos/2016/01/06/14/500_wKjBxlaMuq-AUl7oAAUeZzk8kSE604.jpg" style="width:700px;height:525px"/><div layer2="desc-s"></div><div class="description">三代凌派机</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g23/M12/BF/AF/userphotos/2016/03/09/15/500_wKgFV1bf0gWAWgtEAAsW42CYxLc468.jpg" style="width:700px;height:525px"/><div layer2="desc-s"></div><div class="description">三代机内部图</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club1.autoimg.cn/album/g5/M15/31/95/userphotos/2016/01/06/14/500_wKgHzFaMuy-AAR_5AADbaVX_N2A813.jpg" style="width:700px;height:525px"/><div layer2="desc-s"></div><div class="description">三代机背部特写</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g19/M06/BE/F5/userphotos/2016/03/09/15/500_wKgFWFbf0jmAWjTGAA2NsG4LAUA343.jpg" style="width:700px;height:525px"/><div layer2="desc-s"></div><div class="description">喇叭DIY过程图</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g23/M08/BF/AF/userphotos/2016/03/09/15/500_wKgFXFbf0nqAYhhnAAuGYteWTLQ033.jpg" style="width:700px;height:525px"/><div layer2="desc-s"></div><div class="description">各种喇叭改装完成后试机的图</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g19/M11/BE/F5/userphotos/2016/03/09/15/500_wKjBxFbf0kyANAhSAAxwbSPaRnY395.jpg" style="width:700px;height:525px"/><div layer2="desc-s"></div><div class="description">施工现场图，就一个字“乱”</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="text-s"></div><div class="tz-paragraph">最后祝大家DIY开心成功！！！！</div><div layer1="text-e"></div><br />
