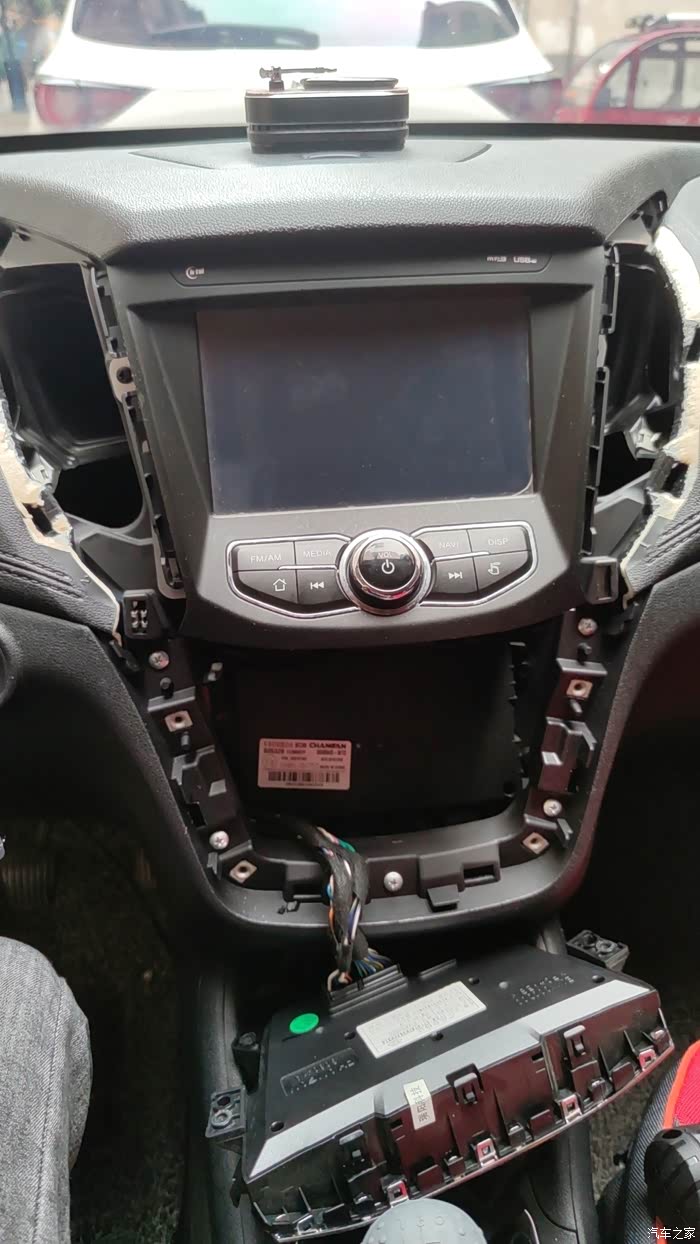

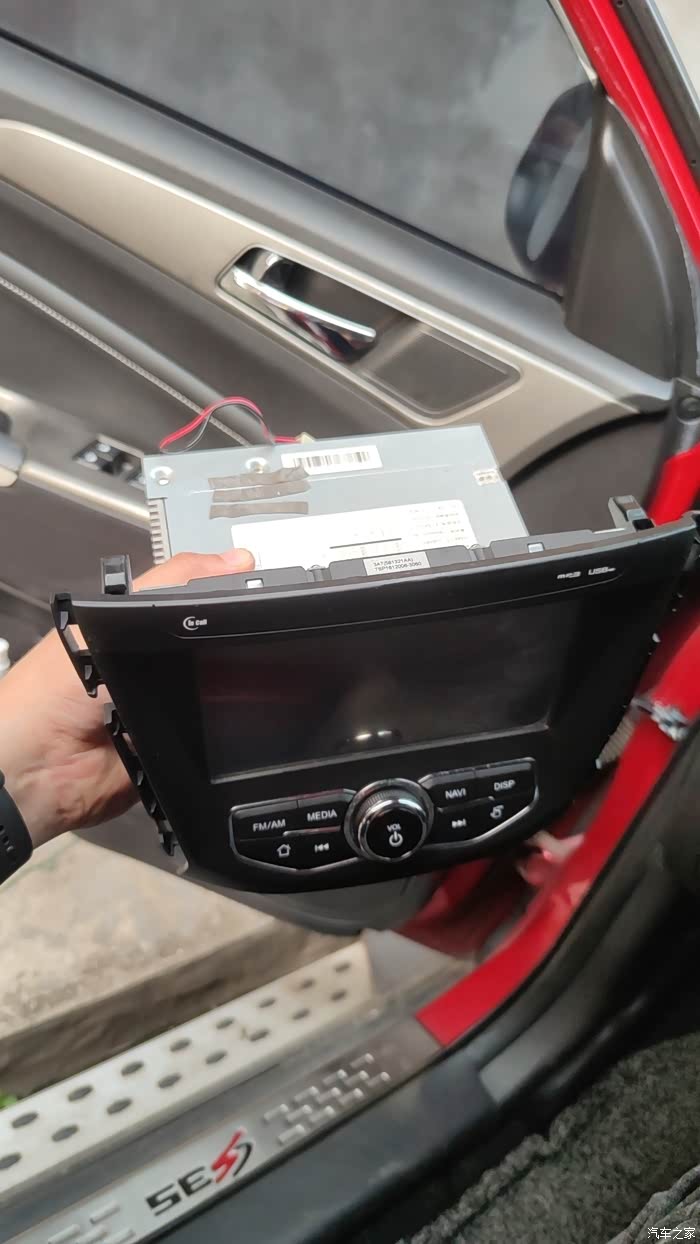

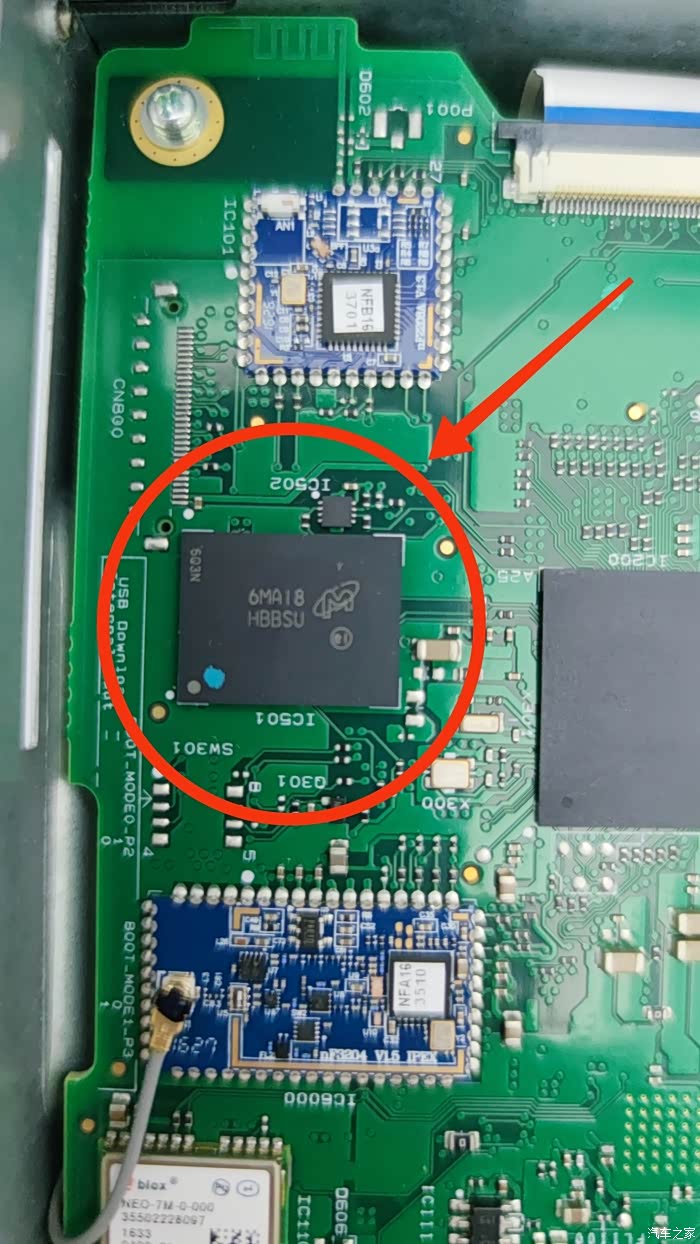

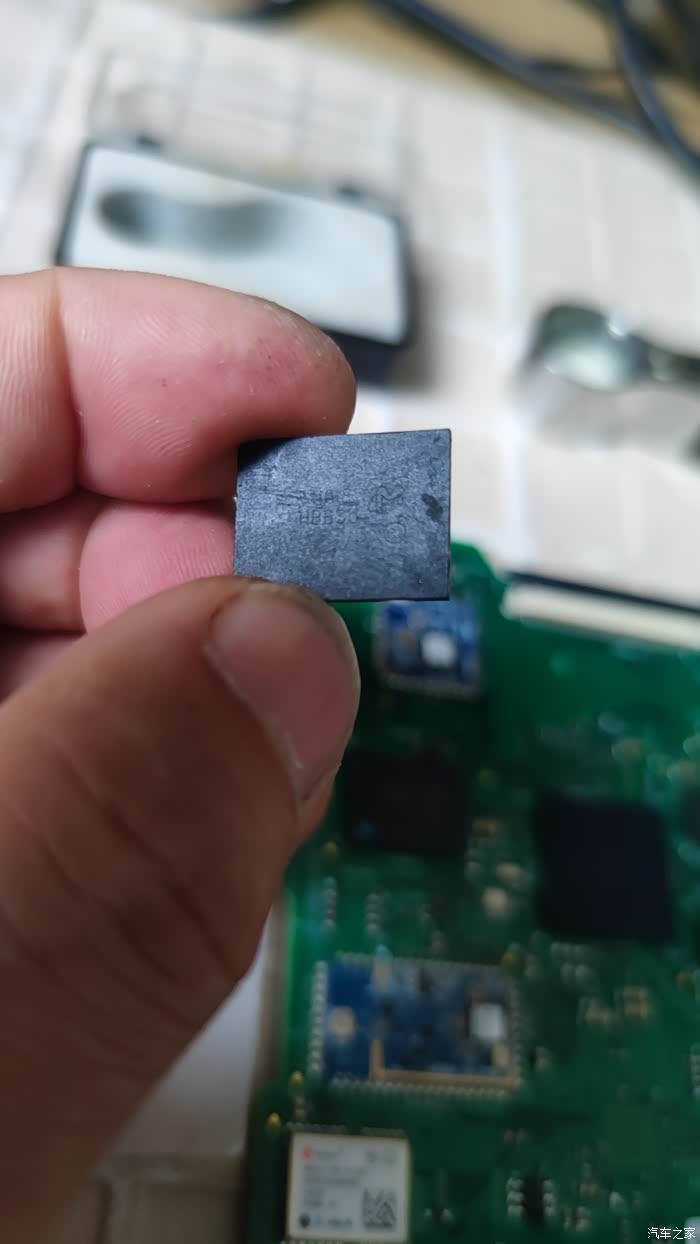

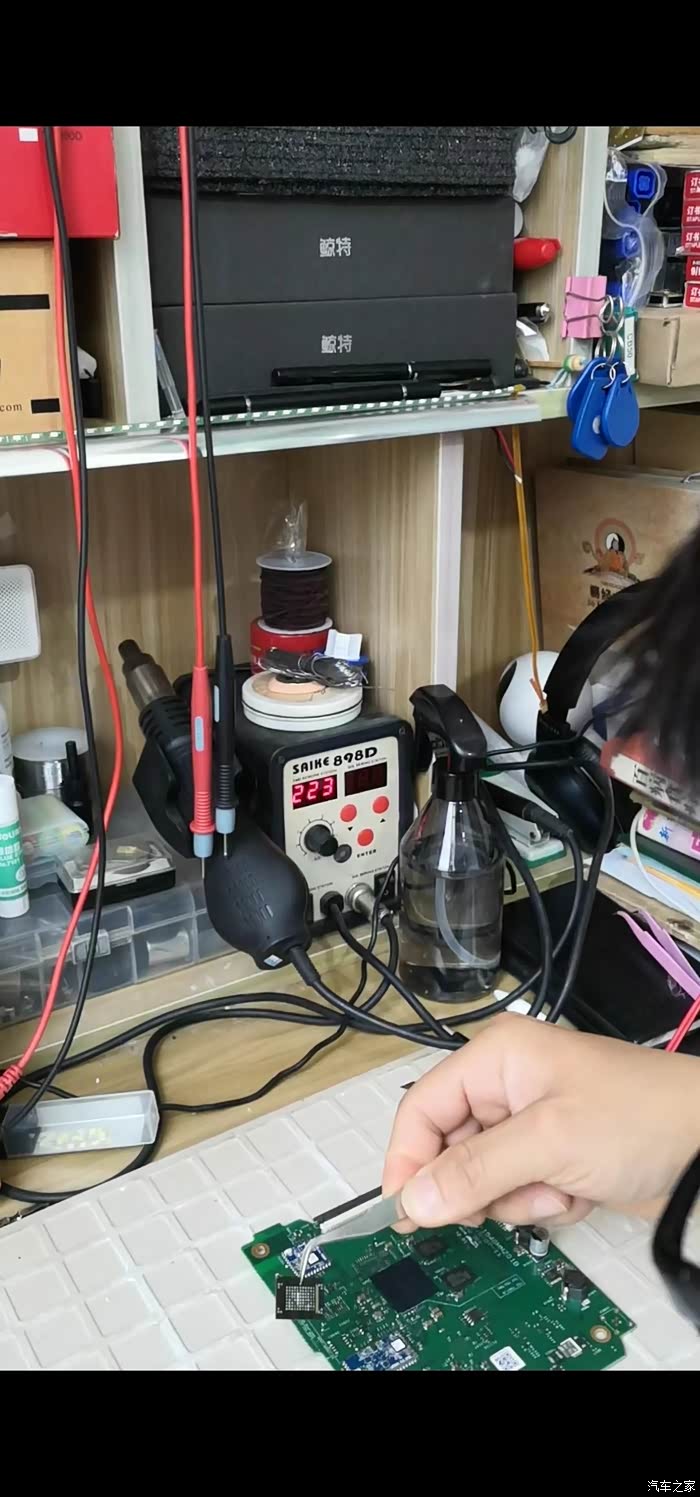

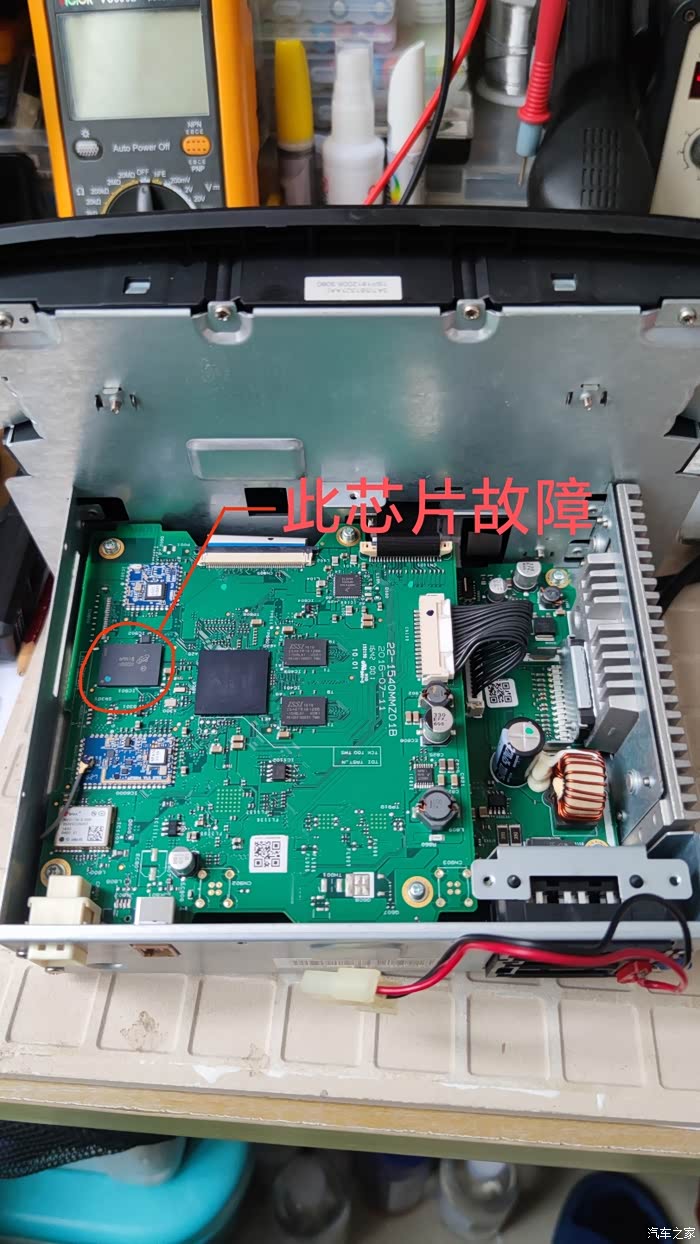

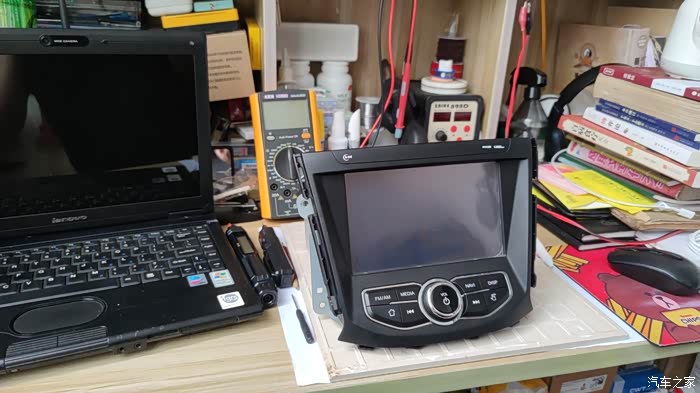

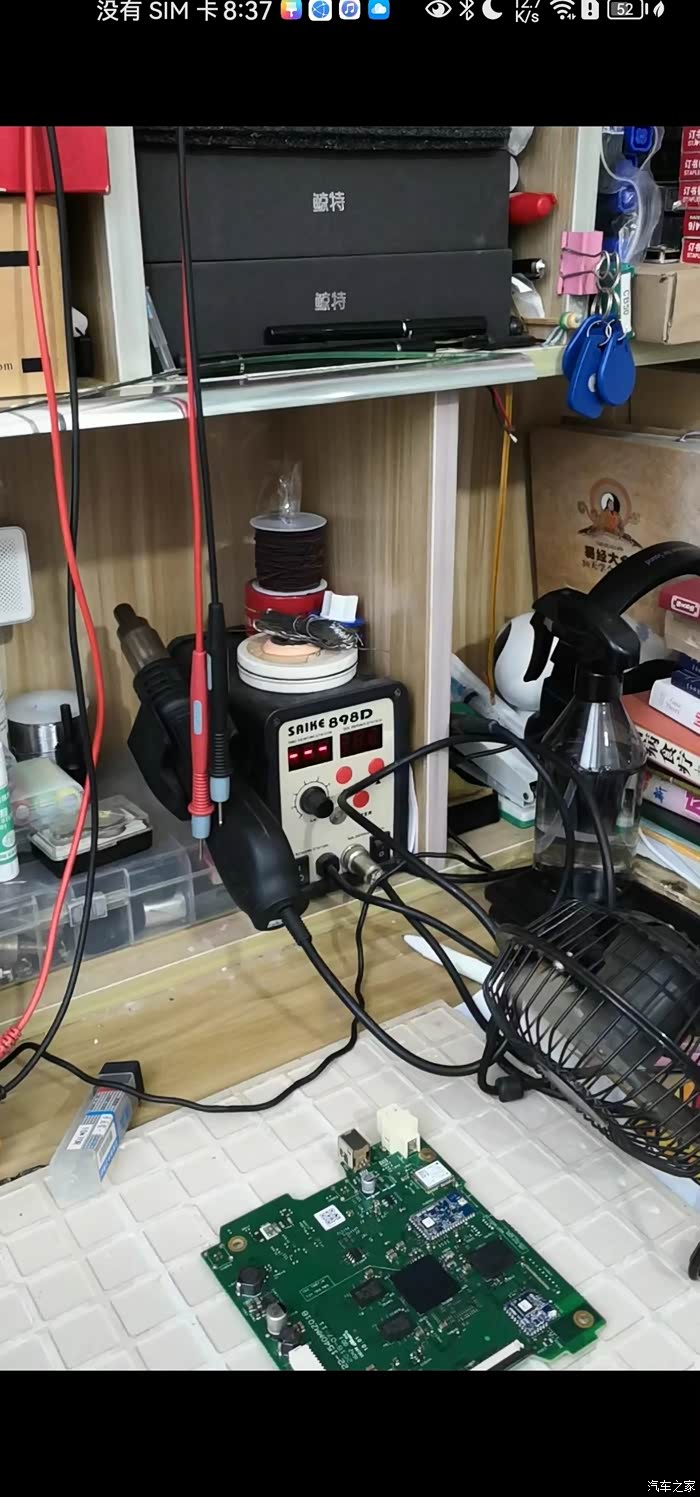

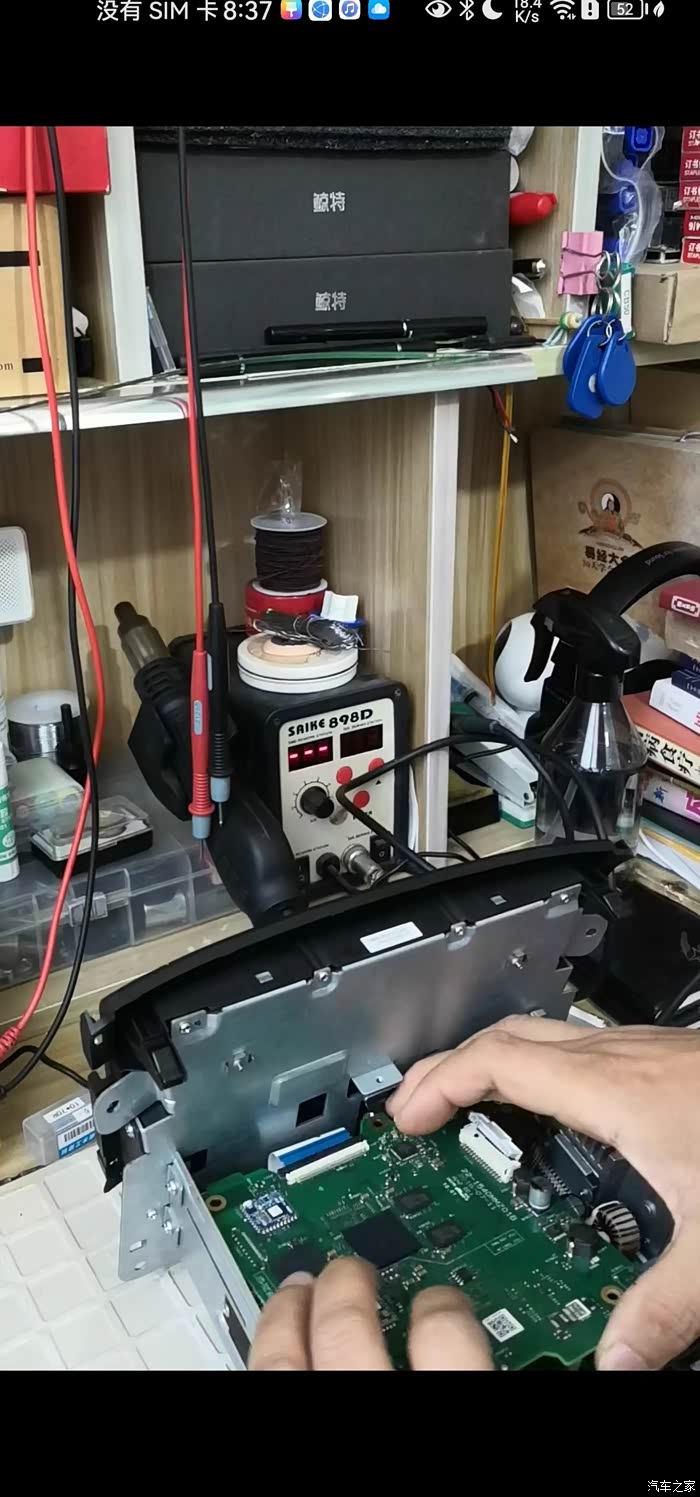

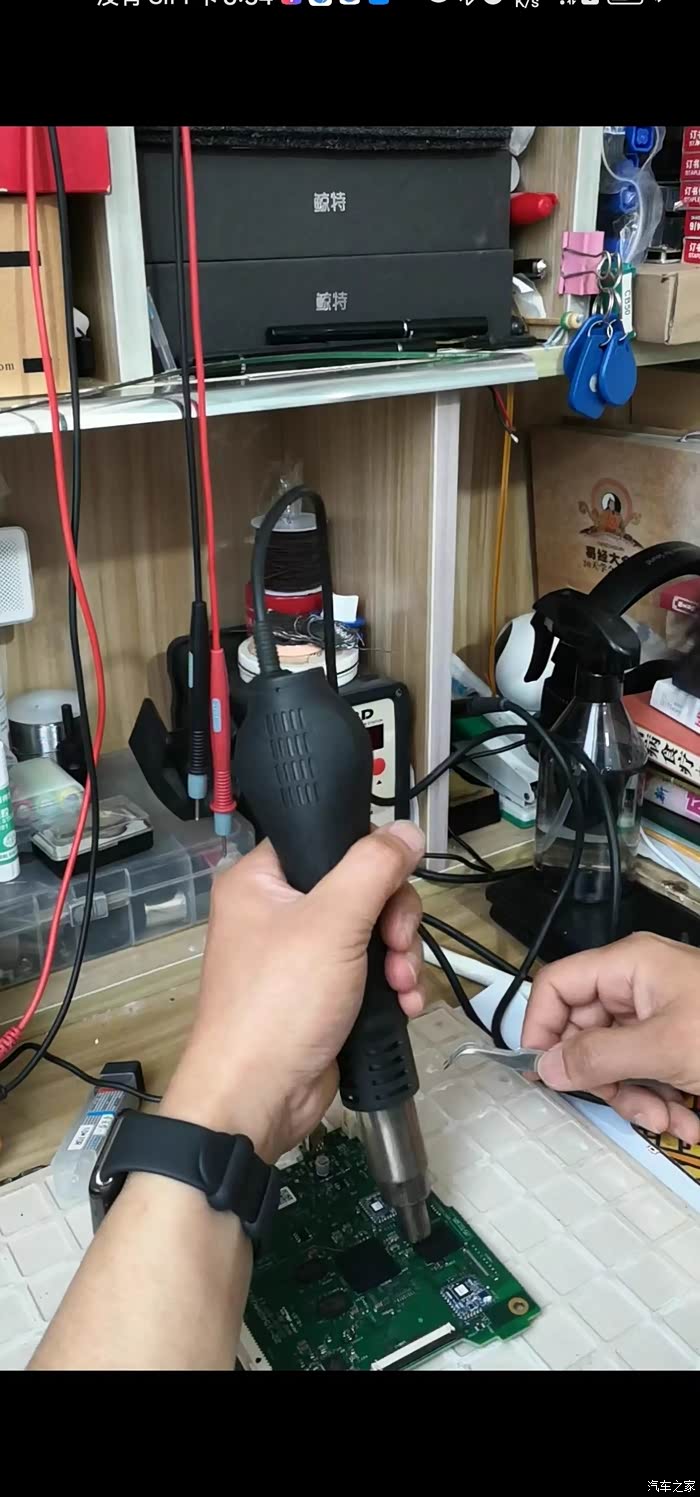

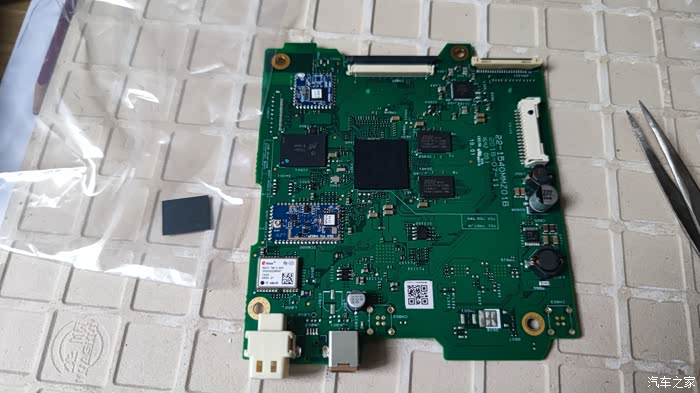

<div data-type="autohome" data-vid="9D3BC190BD34F9D76F15C4841F4F2CE2" data-ref=""></div><div layer1="text-s"></div><div class="tz-paragraph">先看故障视频：几天前上车打开电源就是这个样子了。经过上网查询，得知是所谓的字库芯片故障，决定网淘一块芯片自己动手维修更换（个人兴趣爱好，工具齐全）。</div><div layer1="text-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g31/M01/AA/C0/userphotos/2024/04/22/23/500_ChxoHmYmfLKAUpx4ABLDmmR5f_w788.jpg" style="height:1920px;width:1080px"  /><div layer2="desc-s"></div><div class=description>开始拆中控屏</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g31/M03/AA/C0/userphotos/2024/04/22/23/500_ChxoHmYmfLOAGunlABAtkveRP-s809.jpg" style="height:1920px;width:1080px"  /><div layer2="desc-s"></div><div class=description>拆卸中</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g31/M03/AA/C0/userphotos/2024/04/22/23/500_ChxoHmYmfLSAJPxzABH3ih9lPfg426.jpg" style="height:1920px;width:1080px"  /><div layer2="desc-s"></div><div class=description>完全拆卸</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g31/M04/AA/C0/userphotos/2024/04/22/23/500_ChxoHmYmfLSAK-USAAjPQJA-bnA005.jpg" style="height:1080px;width:1920px"  /><div layer2="desc-s"></div><div class=description>准备进一步拆解中控屏</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g31/M05/AA/C0/userphotos/2024/04/22/23/500_ChxoHmYmfLaAYsHlAA1AZj4VQnc069.jpg" style="height:5760px;width:3240px"  /><div layer2="desc-s"></div><div class=description>红色标记处就是这个字库芯片</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g31/M07/AA/C0/userphotos/2024/04/22/23/500_ChxoHmYmfLeADFuxAA1CoSXVWtc115.jpg" style="height:5760px;width:3240px"  /><div layer2="desc-s"></div><div class=description>芯片是镁光的</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g31/M08/AA/C0/userphotos/2024/04/22/23/500_ChxoHmYmfLiAL6hGAAzoPsqGbGw432.jpg" style="height:3240px;width:5760px"  /><div layer2="desc-s"></div><div class=description>网购带数据的芯片到货，准备更换</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g31/M0B/AA/FE/userphotos/2024/04/22/23/500_ChxoHWYmfLmAVEJlAAg0dQQwQLc147.jpg" style="height:5760px;width:3240px"  /><div layer2="desc-s"></div><div class=description>也是镁光的芯片</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g31/M0B/AA/C0/userphotos/2024/04/22/23/500_ChxoHmYmfLqAfqnmAAgCJvQ4MB4109.jpg" style="height:2310px;width:1080px"  /><div layer2="desc-s"></div><div class=description>拆卸上层主板</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g31/M01/AA/C0/userphotos/2024/04/22/23/500_ChxoHmYmfLqANmWXAAgalEeeQwM694.jpg" style="height:2310px;width:1080px"  /><div layer2="desc-s"></div><div class=description>热风枪拆卸故障芯片（这一步花了点时间，主要是因为主板散热太好了，热风枪经过三次调整温度才将芯片拆下）</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g31/M03/AA/EB/userphotos/2024/04/22/23/500_ChtlyGYmfLuACNmwAA_tTXbB5Uw052.jpg" style="height:2310px;width:1080px"  /><div layer2="desc-s"></div><div class=description>终于拆下芯片了，用到380度的高温</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g31/M08/AA/EB/userphotos/2024/04/22/23/500_ChtlyGYmfLyAL_7vAA-0v5KfQiQ514.jpg" style="height:2310px;width:1080px"  /><div layer2="desc-s"></div><div class=description>清理好焊盘后，涂抹芯片助焊剂准备焊接网购芯片</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g31/M04/AA/C4/userphotos/2024/04/22/23/500_ChxoHmYmfLyAHBdXAA7n4uzWZw8174.jpg" style="height:2310px;width:1080px"  /><div layer2="desc-s"></div><div class=description>对齐芯片焊盘位置</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g31/M06/AB/02/userphotos/2024/04/22/23/500_ChxoHWYmfL6Af_qvAAeNmjEaWlc750.jpg" style="height:2310px;width:1080px"  /><div layer2="desc-s"></div><div class=description>热风枪加热350度焊接</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g31/M07/AB/02/userphotos/2024/04/22/23/500_ChxoHWYmfL-Ael92AAhXv37o5tg289.jpg" style="height:2310px;width:1080px"  /><div layer2="desc-s"></div><div class=description>加热完成后用小风扇冷却降温</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g31/M09/AA/C4/userphotos/2024/04/22/23/500_ChxoHmYmfMCAOEHTAA-U3zUyzHk500.jpg" style="height:2310px;width:1080px"  /><div layer2="desc-s"></div><div class=description>装回主板上电开机</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g31/M09/AB/02/userphotos/2024/04/22/23/500_ChxoHWYmfMGABMq_AA8cdm25F10098.jpg" style="height:2310px;width:1080px"  /><div layer2="desc-s"></div><div class=description>小机器人出来了，也就意味着维修更换芯片成功了</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g31/M01/AA/EC/userphotos/2024/04/22/23/500_ChtlyGYmfMGAVEHSAA-2CmvmLQQ323.jpg" style="height:2310px;width:1080px"  /><div layer2="desc-s"></div><div class=description>正常进入系统</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g31/M00/AB/02/userphotos/2024/04/22/23/500_ChxoHWYmfMOANd_TAAxXLa7y0zg788.jpg" style="height:5760px;width:3240px"  /><div layer2="desc-s"></div><div class=description>装车</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g31/M04/AA/EC/userphotos/2024/04/22/23/500_ChtlyGYmfMSAQRf9AAt9Exq-qls316.jpg" style="height:3240px;width:5760px"  /><div layer2="desc-s"></div><div class=description>上面那个黑色长条状的是以前自己动手改的右侧盲区摄像头控制板</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g31/M03/AB/02/userphotos/2024/04/22/23/500_ChxoHWYmfMWAe96wAAxZgsFt09g423.jpg" style="height:5760px;width:3240px"  /><div layer2="desc-s"></div><div class=description>上电正常显示，维修完成，自己动手丰衣足食。</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br />

17款CS35中控屏卡LOGO无法进入系统维修记实。
