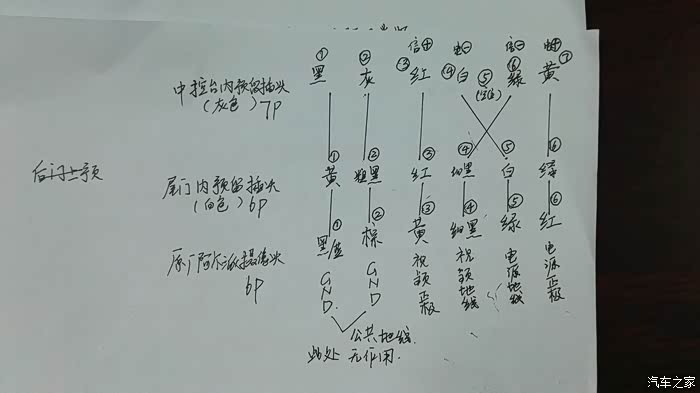

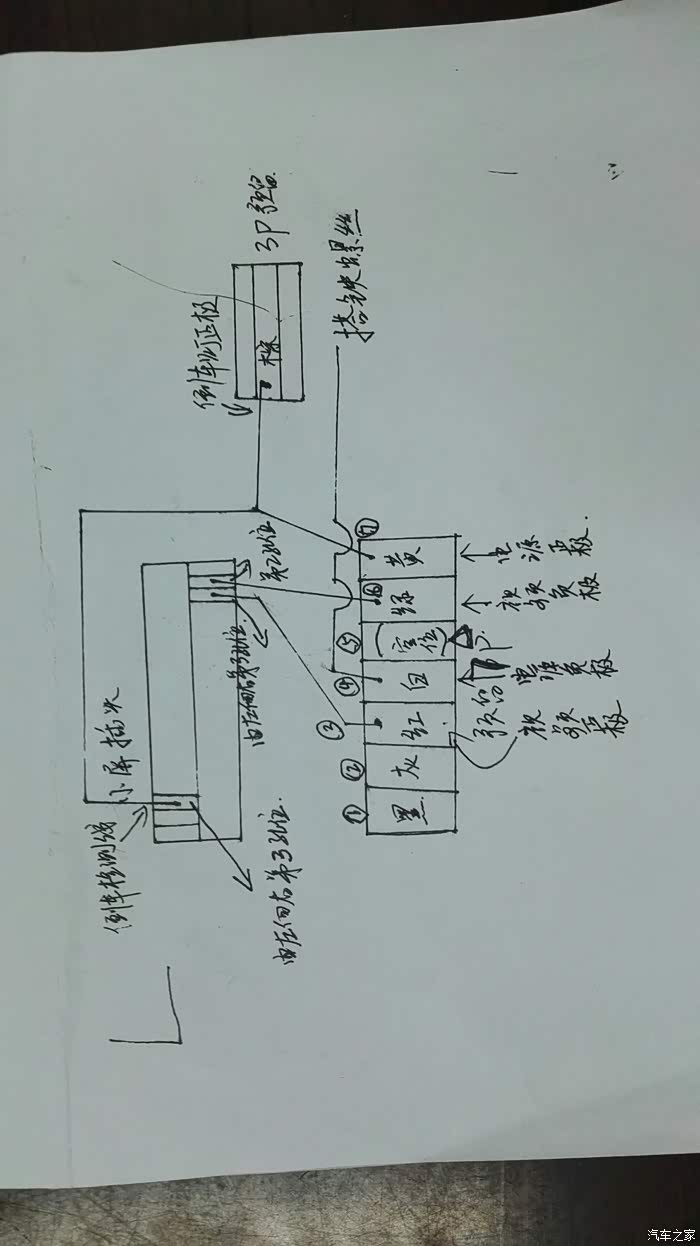

<div layer1="text-s"></div><div class="tz-paragraph">如题，经过本人亲自用万用表检测，没有误差，供各位改装需要的车友使用。</div><div layer1="text-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g10/M00/31/FE/userphotos/2016/01/06/18/500_wKgH0VaM6zuAaIDCAARD9vAer5Y600.jpg" style="height:1078px;width:1920px"  /><div layer2="desc-s"></div><div class="description">这是线路对应定义图</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g16/M13/32/2D/userphotos/2016/01/06/18/500_wKjBx1aM60-AHKdVAAkGpBIB_Do883.jpg" style="height:3419px;width:1920px"  /><div layer2="desc-s"></div><div class="description">这是改小屏倒车影像的接线图</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br />

分享CRV预留视频线路插头定义图
