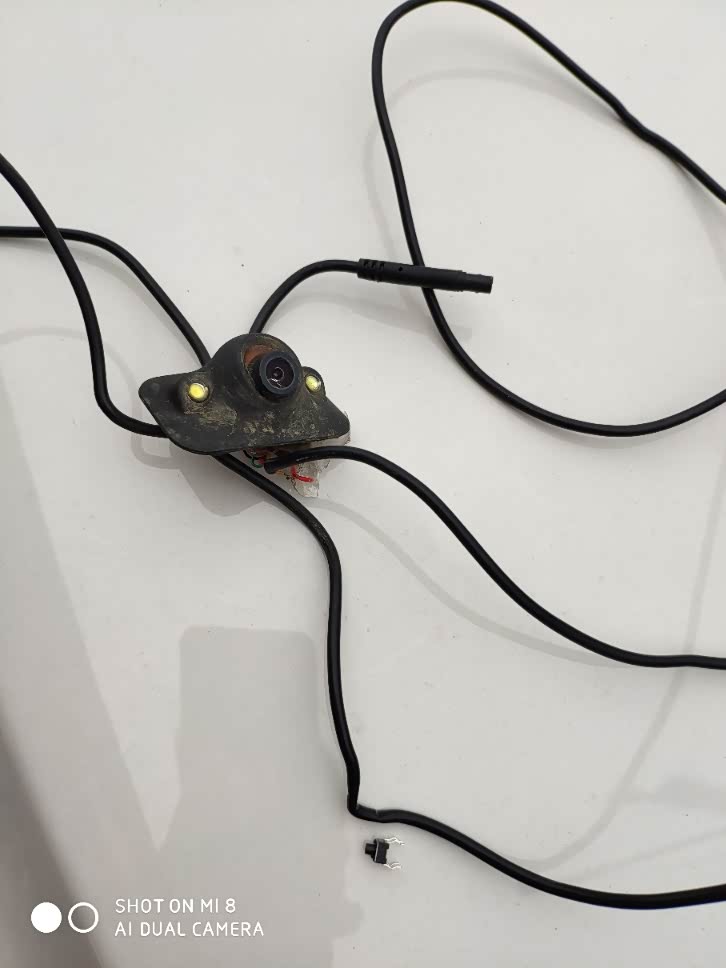

<div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g3/M01/0B/CB/userphotos/2019/02/25/20/ChcCRVxz3I2AcsFiAATk7Ao8b0Q922.jpg" style="width:4032px;height:3024px"/><div layer2="desc-s"></div><div class="description">某宝买的40块摄像头&nbsp;&nbsp;</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g3/M01/1A/5B/userphotos/2019/02/25/20/ChsEkVxz3JWASUg-AAQ3Ji7TzwA628.jpg" style="width:4032px;height:3024px"/><div layer2="desc-s"></div><div class="description">某宝买的5块钱的单片机和微动开关</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g3/M0A/1A/5C/userphotos/2019/02/25/20/ChsEkVxz3JiAGW9dAAUzzzMWAEg558.jpg" style="width:4032px;height:3024px"/><div layer2="desc-s"></div><div class="description">6块钱的两路继电器&nbsp;，就这么多了开工。</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g3/M00/1A/5C/userphotos/2019/02/25/20/ChsEkVxz3JqAKN2KAAWB16Nktcs452.jpg" style="width:4032px;height:3024px"/><div layer2="desc-s"></div><div class="description">拆下中控屏</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g3/M08/1A/5C/userphotos/2019/02/25/20/ChsEkVxz3JyAdR5HAAV38ztIBKs787.jpg" style="width:4032px;height:3024px"/><div layer2="desc-s"></div><div class="description">后摄像头线和中控屏分离引出</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g3/M03/00/D1/userphotos/2019/02/25/20/ChsEm1xz3J-AFgYJAAVG8wX_JsE831.jpg" style="width:4032px;height:3024px"/><div layer2="desc-s"></div><div class="description">把微动开关用AB胶粘到钢琴键里</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g3/M09/1A/5D/userphotos/2019/02/25/20/ChsEkVxz3KGAIpPNAAUpkQ0GyfI541.jpg" style="width:4032px;height:3024px"/><div layer2="desc-s"></div><div class="description">考虑到是盲区切换就不加指示LED灯了</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g3/M09/0B/CD/userphotos/2019/02/25/20/ChcCRVxz3KSAE7vIAAXONwF0ZqY358.jpg" style="width:4032px;height:3024px"/><div layer2="desc-s"></div><div class="description">完美&nbsp;&nbsp;红色引出线的钢琴键是控制座椅音响的有指示灯哦。</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g3/M05/1A/5D/userphotos/2019/02/25/20/ChsEkVxz3KaATw1zAAXkWufJZSo894.jpg" style="width:4032px;height:3024px"/><div layer2="desc-s"></div><div class="description">单片机接线</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g3/M06/1A/5D/userphotos/2019/02/25/20/ChsEkVxz3KiAWOaBAAXNs9i0Onk139.jpg" style="width:4032px;height:3024px"/><div layer2="desc-s"></div><div class="description">把后摄像头信号线和右侧盲区摄像头信号线接到继电器&nbsp;还有中控屏检测线，要中控坪显示摄像头信号给检测线12V高电平就行了。</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g3/M09/1A/5E/userphotos/2019/02/25/20/ChsEkVxz3KuARBXxAAV09cgmuaM544.jpg" style="width:4032px;height:3024px"/><div layer2="desc-s"></div><div class="description">给单片机编程，基本逻辑：&nbsp;按钢琴键右侧摄像头工作再按按退出，如果右侧摄像头正工作着打倒车档右侧摄像头自动退出，切换到后摄像头工作。</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g3/M02/0B/CF/userphotos/2019/02/25/20/ChcCRVxz3K2AEOd1AAX8c-e5qjo874.jpg" style="width:4032px;height:3024px"/><div layer2="desc-s"></div><div class="description">整理包好</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g3/M09/0B/CF/userphotos/2019/02/25/20/ChcCRVxz3LCABnXyAAWs7dnmoek681.jpg" style="width:4032px;height:3024px"/><div layer2="desc-s"></div><div class="description">右侧摄像头工作正常</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g3/M03/0B/D0/userphotos/2019/02/25/20/ChcCRVxz3LOAMjCdAAWMzraMF5Q413.jpg" style="width:4032px;height:3024px"/><div layer2="desc-s"></div><div class="description">倒车正常</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g3/M07/1A/60/userphotos/2019/02/25/20/ChsEkVxz3LWAPGs8AAW9pzPRVjo072.jpg" style="width:4032px;height:3024px"/><div layer2="desc-s"></div><div class="description">平时不用时不留下一点痕迹</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g3/M02/00/D5/userphotos/2019/02/25/20/ChsEm1xz3LeAQ1YCAAXXb0RLxI8362.jpg" style="width:4032px;height:3024px"/><div layer2="desc-s"></div><div class="description">冒充老司机&nbsp;&nbsp;呵呵！</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g3/M05/00/D5/userphotos/2019/02/25/20/ChsEm1xz3LqAUASAAAU6h60Gxbw498.jpg" style="width:4032px;height:3024px"/><div layer2="desc-s"></div><div class="description">妈妈再也不担心我开田里了。</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br />

低成本用钢琴键中控屏改的盲区摄像头
