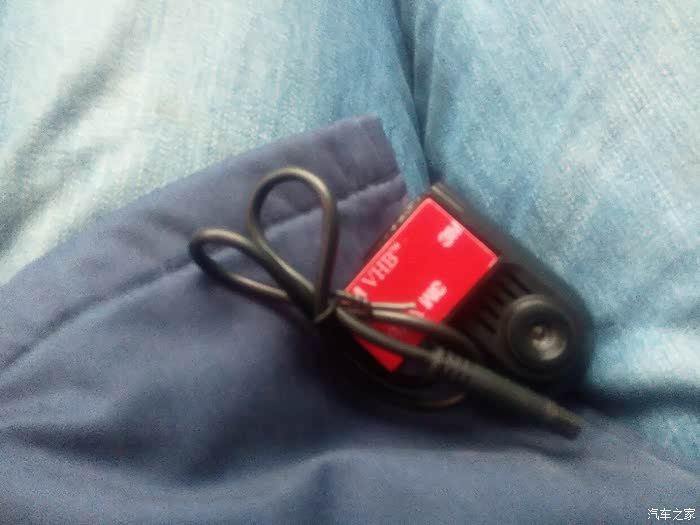

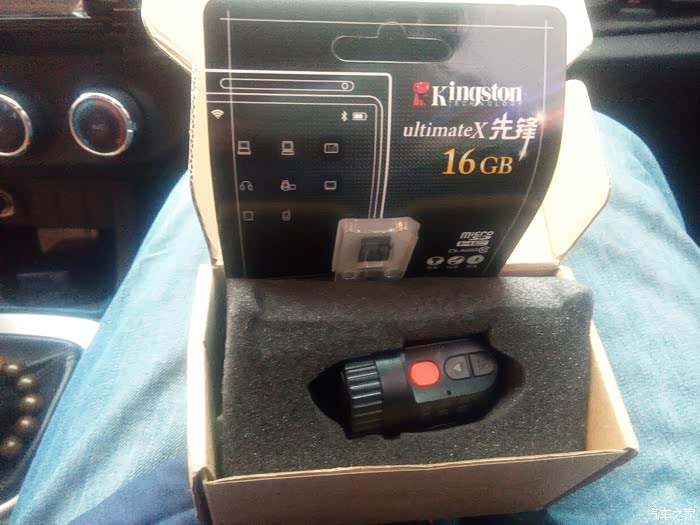

<div layer1="text-s"></div><div class="tz-paragraph">自己比较反感那种从点烟器上取电的外置行车记录仪，看着不美观还有些碍手，就在淘宝网上找到了一款直接匹配导航的行车记录仪，自己动手安装，也就半个小时下面上图，效果不太好，毕竟是一百多元钱的东西，不喜勿喷啊！！！！！</div><div layer1="text-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club0.autoimg.cn/album/g16/M0C/D4/7C/userphotos/2015/11/07/19/500_wKjBx1Y95G-AL3zdAAOSd4UlUz0934.jpg" style="width:0px;height:0px"/><div layer2="desc-s"></div><div class="description">外包装盒</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club0.autoimg.cn/album/g8/M05/D3/FB/userphotos/2015/11/07/19/500_wKjBz1Y95JaAOHBaAAZ5imKo_ME173.jpg" style="width:0px;height:0px"/><div layer2="desc-s"></div><div class="description">盒内的行车记录仪</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club1.autoimg.cn/album/g13/M01/D5/51/userphotos/2015/11/07/19/500_wKgH41Y95MiAKQsxAAYh9dQAtEk672.jpg" style="width:0px;height:0px"/><div layer2="desc-s"></div><div class="description">摄像头</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club1.autoimg.cn/album/g18/M0D/D4/BF/userphotos/2015/11/07/19/500_wKgH2VY95PqAIA-uAAaKKUedFvg277.jpg" style="width:0px;height:0px"/><div layer2="desc-s"></div><div class="description">降压线</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club0.autoimg.cn/album/g10/M0C/D5/21/userphotos/2015/11/07/19/500_wKgH4FY95TeAdXDbAATQ-FvEK-Y104.jpg" style="width:0px;height:0px"/><div layer2="desc-s"></div><div class="description">拆导航面板</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club0.autoimg.cn/album/g8/M04/D3/FC/userphotos/2015/11/07/19/500_wKjBz1Y95XaAP0sLAAXAlx1fGrs292.jpg" style="width:0px;height:0px"/><div layer2="desc-s"></div><div class="description">拆下面板后的样子</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club0.autoimg.cn/album/g7/M0D/D4/86/userphotos/2015/11/07/19/500_wKgH3VY95auAcSGUAANLsMgv_yA569.jpg" style="width:0px;height:0px"/><div layer2="desc-s"></div><div class="description">拆导航</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club0.autoimg.cn/album/g7/M00/D4/89/userphotos/2015/11/07/19/500_wKgH3VY95cyATfGeAAQWyp-PNlA242.jpg" style="width:0px;height:0px"/><div layer2="desc-s"></div><div class="description">导航型号</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club1.autoimg.cn/album/g12/M12/D4/B3/userphotos/2015/11/07/19/500_wKgH01Y95fWAIoEpAAP61HuY7jE248.jpg" style="width:0px;height:0px"/><div layer2="desc-s"></div><div class="description">找到插口，可是被占用了</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club0.autoimg.cn/album/g4/M05/D4/4F/userphotos/2015/11/07/19/500_wKgHy1Y95jmASqiYAAYuYDAv2j8617.jpg" style="width:0px;height:0px"/><div layer2="desc-s"></div><div class="description">安装前的联机测试</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club0.autoimg.cn/album/g17/M04/CF/CF/userphotos/2015/11/07/19/500_wKgH2FY95rGAcmF3AAQcIeHcqhw898.jpg" style="width:0px;height:0px"/><div layer2="desc-s"></div><div class="description">行车记录仪插孔</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club0.autoimg.cn/album/g11/M0C/D4/89/userphotos/2015/11/07/19/500_wKgH0lY95x-ALBMvAAXo5CLDEY4841.jpg" style="width:0px;height:0px"/><div layer2="desc-s"></div><div class="description">被换下来的插头，将这个插头上的两根黑线并入了行车记录仪的插头上了，行车记录仪的插头是十针的，它就用了七根，预留出的针孔的位置正好是那两根黑线所在位置，就把黑线并入行车记录仪的插头了</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club1.autoimg.cn/album/g12/M07/D5/22/userphotos/2015/11/07/20/500_wKgH4lY96CGAfcTKAAQ-Z-D9KnM516.jpg" style="width:0px;height:0px"/><div layer2="desc-s"></div><div class="description">摄像头的位置</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club0.autoimg.cn/album/g15/M07/D5/B6/userphotos/2015/11/07/20/500_wKjByFY96IGAYTKfAAfcj0yZsdQ204.jpg" style="width:0px;height:0px"/><div layer2="desc-s"></div><div class="description">降压线从这里穿过来</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club0.autoimg.cn/album/g4/M04/D4/2F/userphotos/2015/11/07/20/500_wKjB01Y96LeATPHFAAOdY-Mgt6Q649.jpg" style="width:0px;height:0px"/><div layer2="desc-s"></div><div class="description">左侧A柱下走线</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club0.autoimg.cn/album/g9/M08/D4/FE/userphotos/2015/11/07/20/500_wKgH31Y96POAEfefAAROz2dgstg246.jpg" style="width:0px;height:0px"/><div layer2="desc-s"></div><div class="description">摄像头的线直接进棚顶边里面</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club0.autoimg.cn/album/g18/M08/D4/C3/userphotos/2015/11/07/20/500_wKgH2VY96UOAH6moAAScmS2RoZA616.jpg" style="width:0px;height:0px"/><div layer2="desc-s"></div><div class="description">这是那两根黑线的标签，应该是音频输入</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club1.autoimg.cn/album/g9/M01/D5/00/userphotos/2015/11/07/20/500_wKgH31Y96YiAalXtAATewBMafts532.jpg" style="width:0px;height:0px"/><div layer2="desc-s"></div><div class="description">大功完成</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club1.autoimg.cn/album/g13/M02/D4/D9/userphotos/2015/11/07/20/500_wKjBylY96eSAVLE3AALHFbaAQpU300.jpg" style="width:0px;height:0px"/><div layer2="desc-s"></div><div class="description">完成</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club0.autoimg.cn/album/g4/M0B/D4/55/userphotos/2015/11/07/20/500_wKgHy1Y96hGAaPqLAANx-XEoI6s173.jpg" style="width:0px;height:0px"/><div layer2="desc-s"></div><div class="description">效果图</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club1.autoimg.cn/album/g16/M12/D4/BB/userphotos/2015/11/07/20/500_wKgH5lY96kSAIxUpAAQnWZK4MAY988.jpg" style="width:0px;height:0px"/><div layer2="desc-s"></div><div class="description">效果图，导航分辨率低，效果不太好，先用着吧，等有时间了放电脑上看看</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club1.autoimg.cn/album/g6/M09/D4/56/userphotos/2015/11/07/20/500_wKjB0VY96qCAPcLaAAUjNRTbySM157.jpg" style="width:0px;height:0px"/><div layer2="desc-s"></div><div class="description">外面的效果图</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br />

自己动手加装和飞歌开拓者导航相匹配的行车记录仪
