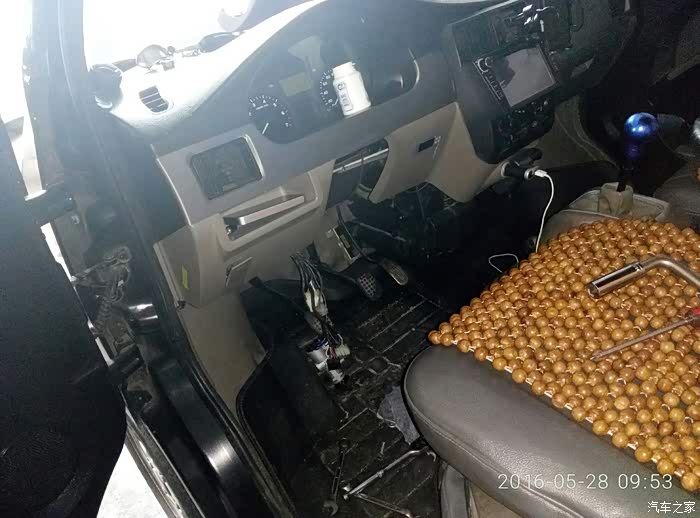

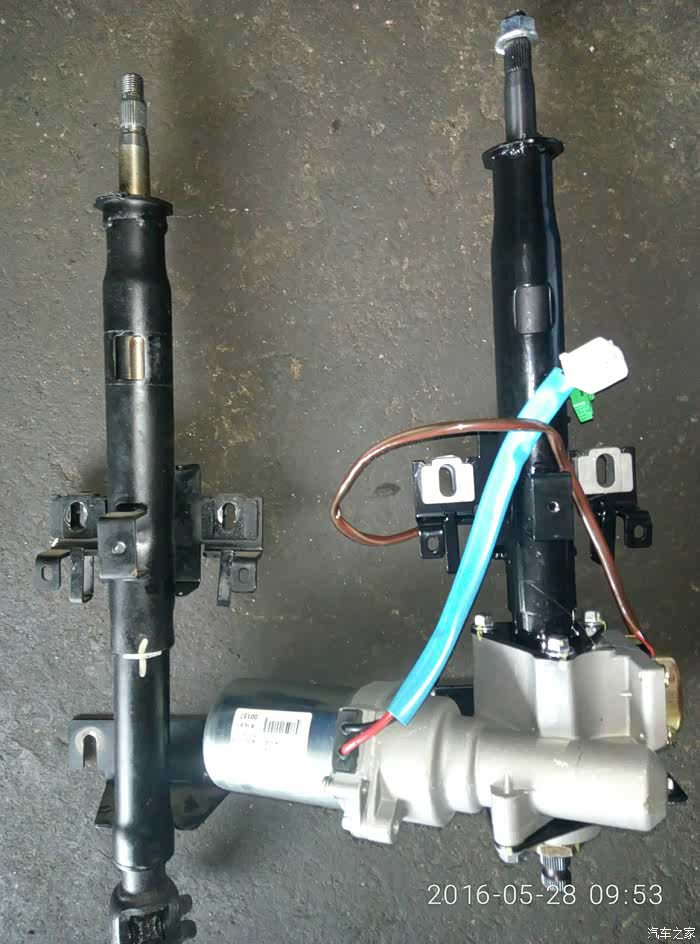

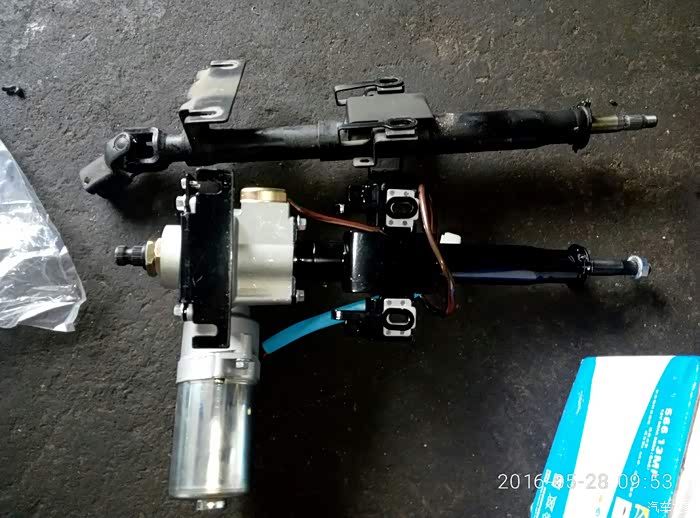

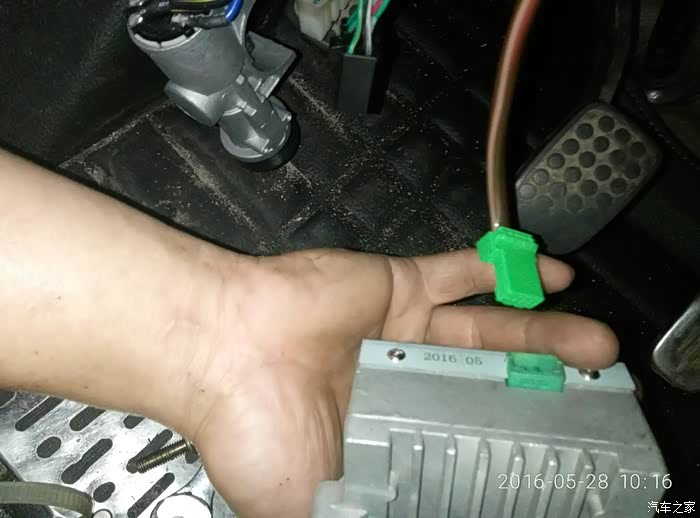

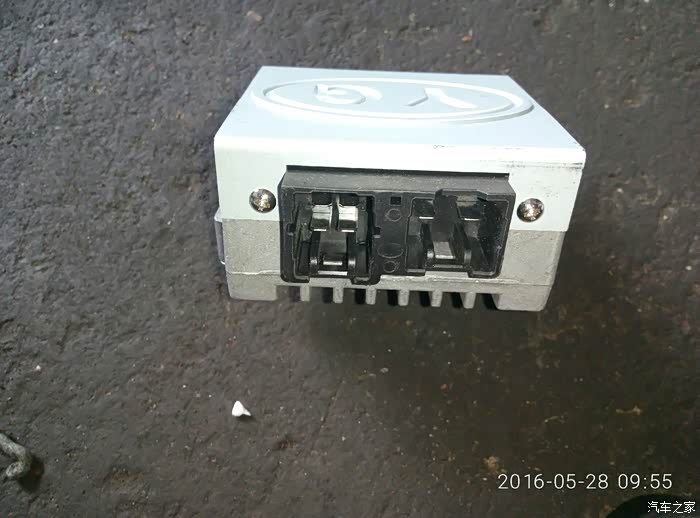

<div layer1="text-s"></div><div class="tz-paragraph">小弟不才如有文笔不好，表达能力差或错字太多请各位车友见谅包容。<br />昨天帮客户改装的现在才有空上图</div><div layer1="text-e"></div><br /><div layer1="img-s"></div><div class="tz-picture"><img src="http://club2.autoimg.cn/album/g15/M0F/90/EB/userphotos/2016/05/29/15/500_wKgH1ldKltWAUc6GAAgoEl9C9Bg734.jpg" style="height:1423px;width:1920px"  /></div><div layer1="img-e"></div><br /><div layer1="text-s"></div><div class="tz-paragraph">因为拆原厂方向机时忘记拍照，只好给张拆的空空如也图片给各位看看</div><div layer1="text-e"></div><br /><div layer1="img-s"></div><div class="tz-picture"><img src="http://club2.autoimg.cn/album/g15/M08/90/E2/userphotos/2016/05/29/15/500_wKjByFdKltaAGj48AAiRHrFKGqM139.jpg" style="height:2590px;width:1920px"  /></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-picture"><img src="http://club2.autoimg.cn/album/g15/M07/90/EB/userphotos/2016/05/29/15/500_wKgH1ldKlteAAYWFAAfmlgPU__U606.jpg" style="height:1423px;width:1920px"  /></div><div layer1="img-e"></div><br /><div layer1="text-s"></div><div class="tz-paragraph">有助力和无助力方向机对比</div><div layer1="text-e"></div><br /><div layer1="img-s"></div><div class="tz-picture"><img src="http://club2.autoimg.cn/album/g15/M08/8D/80/userphotos/2016/05/29/15/500_wKgH5VdKltmAXnbGAAgsrqlhUdk380.jpg" style="height:1423px;width:1920px"  /></div><div layer1="img-e"></div><br /><div layer1="text-s"></div><div class="tz-paragraph">来张电机大特写</div><div layer1="text-e"></div><br /><div layer1="img-s"></div><div class="tz-picture"><img src="http://club2.autoimg.cn/album/g16/M03/8F/A0/userphotos/2016/05/29/15/500_wKgH11dKltqATyJXAAkt8thU61Q426.jpg" style="height:1423px;width:1920px"  /></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-picture"><img src="http://club2.autoimg.cn/album/g16/M00/8F/8E/userphotos/2016/05/29/15/500_wKjBx1dKltuAT208AAjnQKYb7xw661.jpg" style="height:1423px;width:1920px"  /></div><div layer1="img-e"></div><br /><div layer1="text-s"></div><div class="tz-paragraph">这是放向机控制盒</div><div layer1="text-e"></div><br /><div layer1="img-s"></div><div class="tz-picture"><img src="http://club2.autoimg.cn/album/g16/M02/8F/EC/userphotos/2016/05/29/15/500_wKgH5ldKlt2AAMUXAAjW-Lo1NXA932.jpg" style="height:1423px;width:1920px"  /></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-picture"><img src="http://club2.autoimg.cn/album/g16/M0E/8F/EC/userphotos/2016/05/29/15/500_wKgH5ldKlt6AFmHxAAk_SC5410k931.jpg" style="height:1423px;width:1920px"  /></div><div layer1="img-e"></div><br /><div layer1="text-s"></div><div class="tz-paragraph">控制盒线束，白色插头插在控制盒里，红色粗的那条是正极，旁边白色是接ACC,红色细接米表信号线</div><div layer1="text-e"></div><br /><div layer1="img-s"></div><div class="tz-picture"><img src="http://club2.autoimg.cn/album/g16/M05/8F/ED/userphotos/2016/05/29/15/500_wKgH5ldKluCADSh7AAj2HaR0_xo941.jpg" style="height:1423px;width:1920px"  /></div><div layer1="img-e"></div><br /><div layer1="text-s"></div><div class="tz-paragraph">方向机十字轴</div><div layer1="text-e"></div><br /><div layer1="img-s"></div><div class="tz-picture"><img src="http://club2.autoimg.cn/album/g16/M15/8F/ED/userphotos/2016/05/29/15/500_wKgH5ldKluOAEgG9AAhqt1qyiUI187.jpg" style="height:2590px;width:1920px"  /></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-picture"><img src="http://club2.autoimg.cn/album/g16/M0B/8F/A1/userphotos/2016/05/29/15/500_wKgH11dKluSAdhgnAAkJsU4UFho943.jpg" style="height:1423px;width:1920px"  /></div><div layer1="img-e"></div><br /><div layer1="text-s"></div><div class="tz-paragraph">好了，现在开始安装了，先把助力方向机四颗螺丝固定（只是固定不要装紧）</div><div layer1="text-e"></div><br /><div layer1="img-s"></div><div class="tz-picture"><img src="http://club2.autoimg.cn/album/g16/M0A/8F/90/userphotos/2016/05/29/15/500_wKjBx1dKluaANzI-AAjxVGI98GE633.jpg" style="height:2590px;width:1920px"  /></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-picture"><img src="http://club2.autoimg.cn/album/g16/M03/8F/EE/userphotos/2016/05/29/15/500_wKgH5ldKlueAOn22AAiqLh6zCl8655.jpg" style="height:2590px;width:1920px"  /></div><div layer1="img-e"></div><br /><div layer1="text-s"></div><div class="tz-paragraph">再装十字轴，先把十字轴两颗螺丝拆下，再把十字轴放上对应花键轴，螺丝再锁紧ok</div><div layer1="text-e"></div><br /><div layer1="img-s"></div><div class="tz-picture"><img src="http://club2.autoimg.cn/album/g16/M05/8F/EE/userphotos/2016/05/29/15/500_wKgH5ldKlumAQGfuAAgCMPvWXQY395.jpg" style="height:2590px;width:1920px"  /></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-picture"><img src="http://club2.autoimg.cn/album/g16/M10/8F/91/userphotos/2016/05/29/15/500_wKjBx1dKluuANL3RAAiPiu2UNz4813.jpg" style="height:2590px;width:1920px"  /></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-picture"><img src="http://club2.autoimg.cn/album/g16/M12/8F/91/userphotos/2016/05/29/15/500_wKjBx1dKlu2AXfsIAAj1ieH7x4Q869.jpg" style="height:2590px;width:1920px"  /></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-picture"><img src="http://club2.autoimg.cn/album/g16/M02/8F/A2/userphotos/2016/05/29/15/500_wKgH11dKlu6AImxVAAh3DVtpebk093.jpg" style="height:2590px;width:1920px"  /></div><div layer1="img-e"></div><br /><div layer1="text-s"></div><div class="tz-paragraph">拆开仪表，目的是为了接米表信号线</div><div layer1="text-e"></div><br /><div layer1="img-s"></div><div class="tz-picture"><img src="http://club2.autoimg.cn/album/g16/M09/8F/EF/userphotos/2016/05/29/15/500_wKgH5ldKlvCALynlAAiLKJOpyzM413.jpg" style="height:2590px;width:1920px"  /></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-picture"><img src="http://club2.autoimg.cn/album/g16/M0A/8F/EF/userphotos/2016/05/29/15/500_wKgH5ldKlvKAAIB8AAfzKxrzHEI918.jpg" style="height:2590px;width:1920px"  /></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-picture"><img src="http://club2.autoimg.cn/album/g16/M00/8F/A2/userphotos/2016/05/29/15/500_wKgH11dKlvSABw5sAAdRi57xO4s884.jpg" style="height:1423px;width:1920px"  /></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-picture"><img src="http://club2.autoimg.cn/album/g20/M08/71/7F/userphotos/2016/05/29/15/500_wKgFVFdKlvWAeIVjAAhjuRIfu3U765.jpg" style="height:2590px;width:1920px"  /></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-picture"><img src="http://club2.autoimg.cn/album/g16/M04/8F/A3/userphotos/2016/05/29/15/500_wKgH11dKlveAOaraAAlS8deKwcU345.jpg" style="height:2590px;width:1920px"  /></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-picture"><img src="http://club2.autoimg.cn/album/g20/M0C/71/7F/userphotos/2016/05/29/15/500_wKgFVFdKlvmAbWxMAAdDU7REuU8553.jpg" style="height:1423px;width:1920px"  /></div><div layer1="img-e"></div><br /><div layer1="text-s"></div><div class="tz-paragraph">安装点火开关、控制盒和接线。首先把点火开关、控制盒插头一一插好，把控制盒牢固。在点火开关关闭状态下用电笔探测有电的接红色粗线，在点火开关打开状态下有电的接白色，红色细线接仪表蓝色带银点的那条线（看图），黑色当然就搭铁了</div><div layer1="text-e"></div><br /><div layer1="img-s"></div><div class="tz-picture"><img src="http://club2.autoimg.cn/album/g20/M07/71/09/userphotos/2016/05/29/15/500_wKjBw1dKlvqARXISAAeKcrHrURs040.jpg" style="height:1423px;width:1920px"  /></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-picture"><img src="http://club2.autoimg.cn/album/g16/M08/8F/A3/userphotos/2016/05/29/15/500_wKgH11dKlvyABfv-AAf_ZnReBBs039.jpg" style="height:1423px;width:1920px"  /></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-picture"><img src="http://club2.autoimg.cn/album/g16/M09/8F/A4/userphotos/2016/05/29/15/500_wKgH11dKlv2AJ9nNAAhRT37aqBY235.jpg" style="height:2590px;width:1920px"  /></div><div layer1="img-e"></div><br /><div layer1="text-s"></div><div class="tz-paragraph">最后工作完毕<img src="https://z.autoimg.cn/creator/packages/emoji/smiley/4.gif" class="spic" /></div><div layer1="text-e"></div><br />

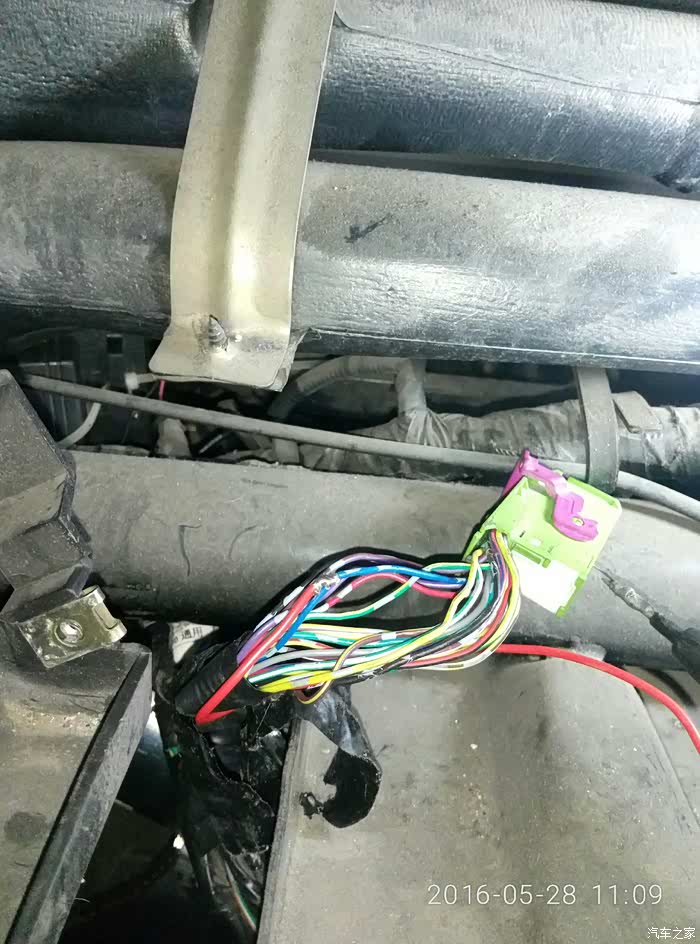

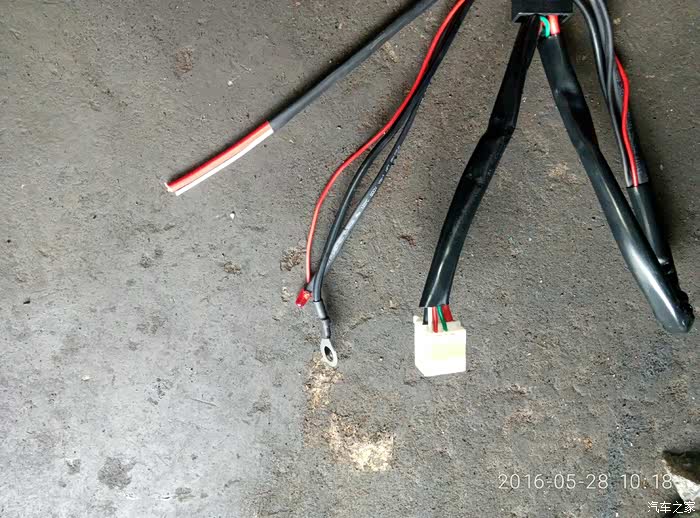

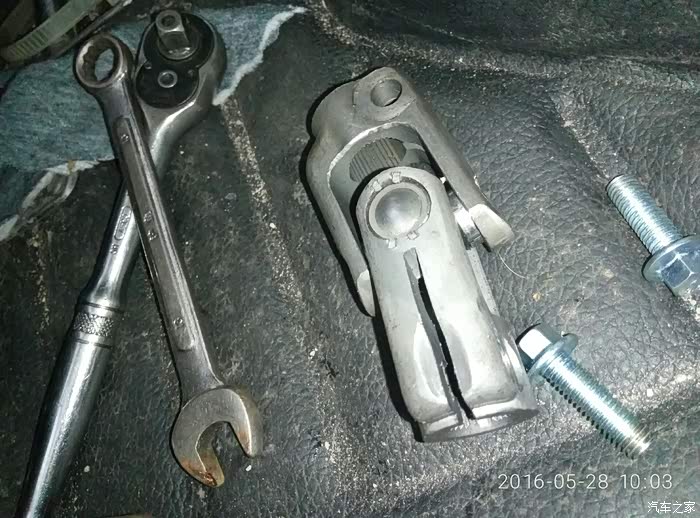

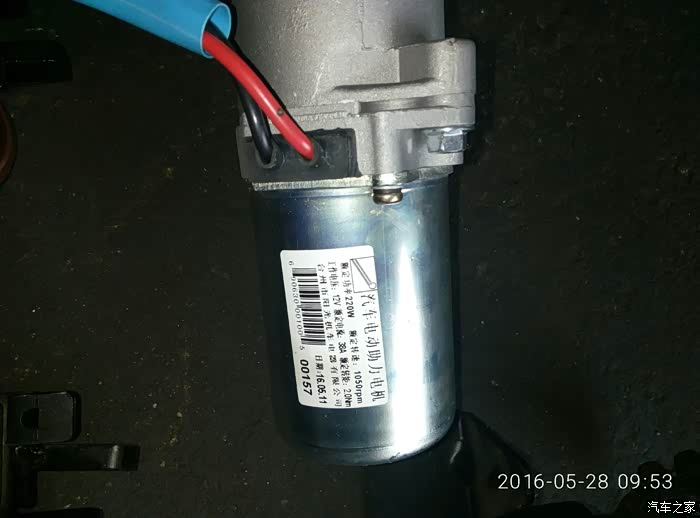

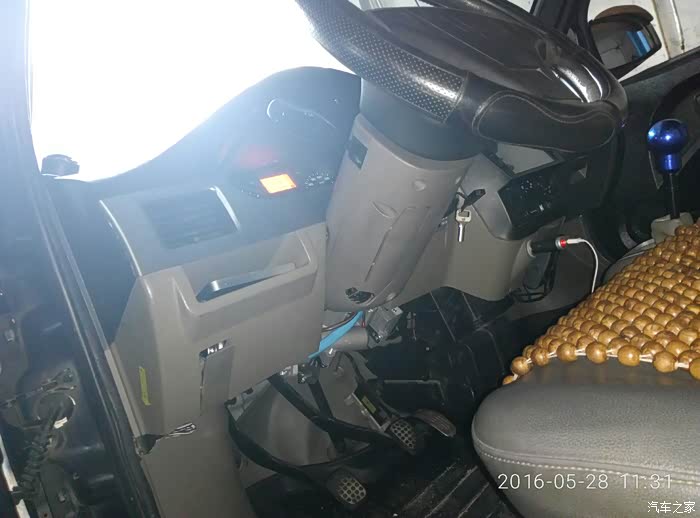

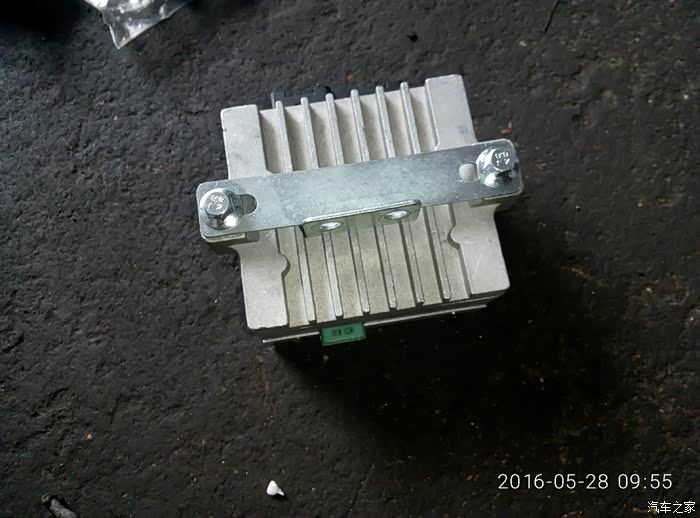

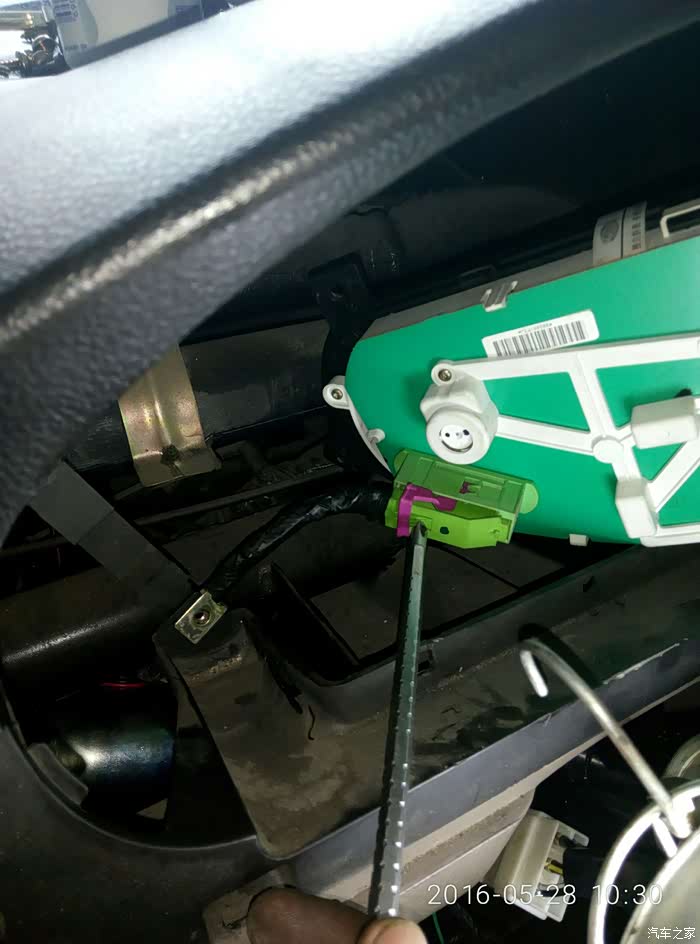

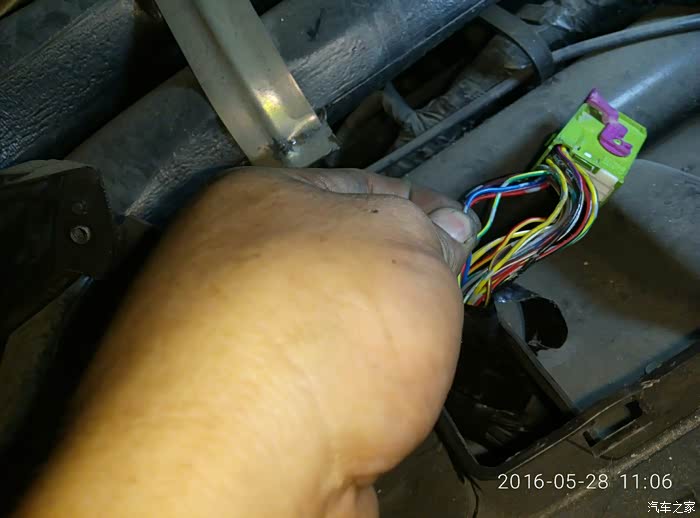

五菱荣光加装电动助力方向机过程
