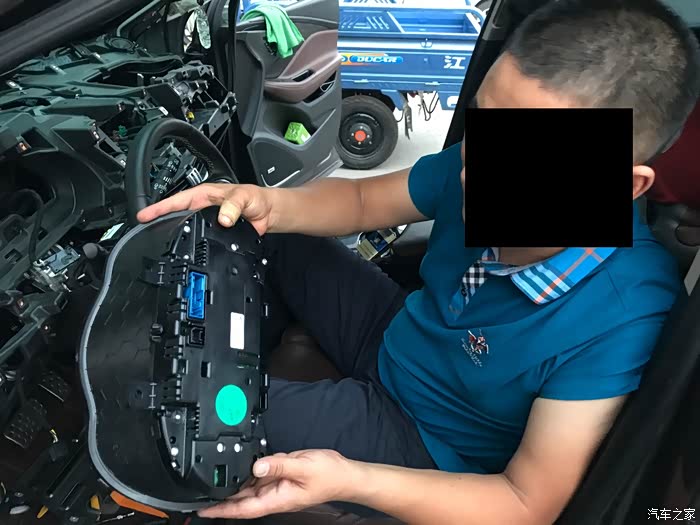

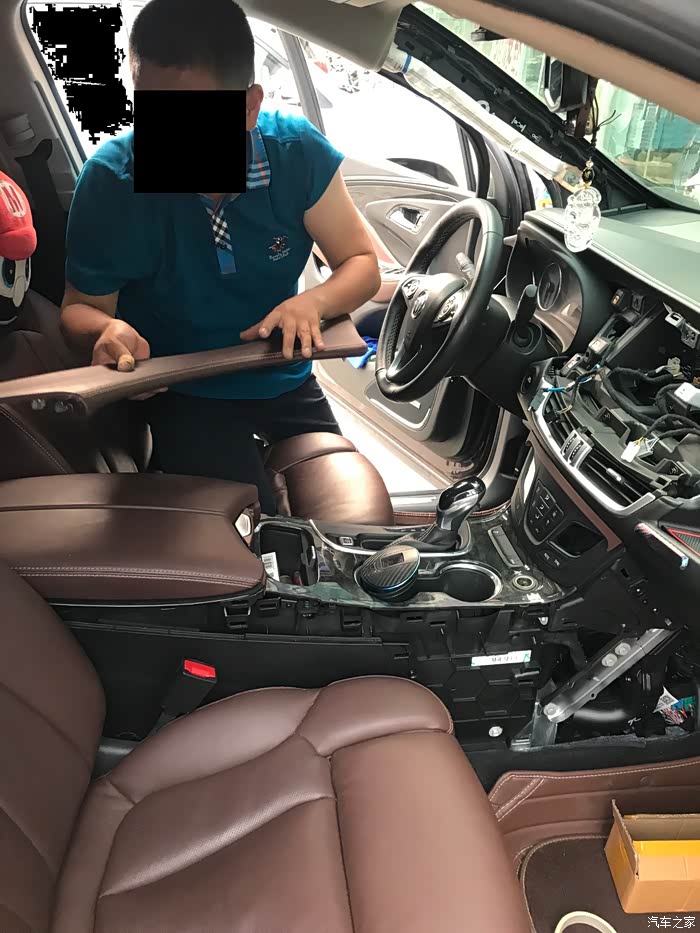

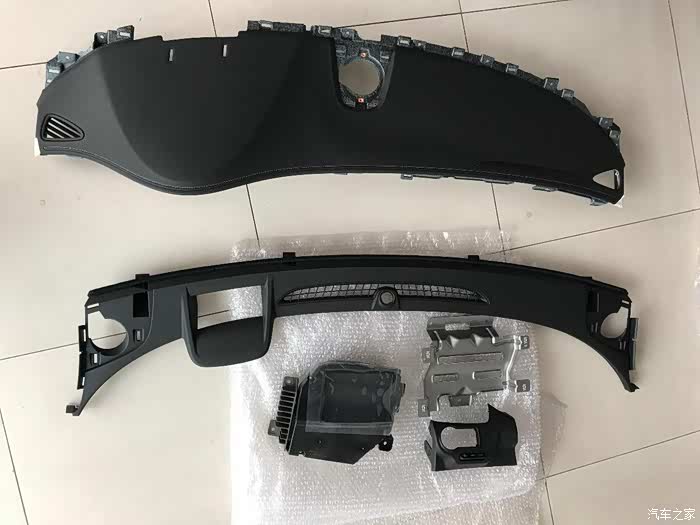

<div layer1="text-s"></div><div class="tz-paragraph">看图说话，内容在图片描述内。</div><div layer1="text-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g21/M06/E5/45/userphotos/2017/07/19/07/500_wKjBwllumMiADdixAARcVxWcYcY707.jpg" style="height:525px;width:700px"  /><div layer2="desc-s"></div><div class="description">北美版HUD所需配件<br />旗舰款高配仪表盘</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g21/M07/E8/AC/userphotos/2017/07/19/07/500_wKgFWllumMiARB_bAAHVVo7U3wk980.jpg" style="height:525px;width:700px"  /><div layer2="desc-s"></div><div class="description">北美版HUD所需配件<br />中控饰板<br />HUD主机<br />HUD支架<br />HUD功能开关</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g18/M04/07/15/userphotos/2017/07/19/07/500_wKgH2VlumMmAd8ClAAgbZtt6vR0096.jpg" style="height:933px;width:700px"  /><div layer2="desc-s"></div><div class="description">准备拆车~<br />从侧三角板开始</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g18/M05/0E/3F/userphotos/2017/07/19/07/500_wKgH6FlumMmAMKEpAAhHidjGG3o310.jpg" style="height:933px;width:700px"  /><div layer2="desc-s"></div><div class="description">大理石纹路板</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g18/M05/07/15/userphotos/2017/07/19/07/500_wKgH2VlumMqAQInHAAXJaz7sMhw917.jpg" style="height:525px;width:700px"  /><div layer2="desc-s"></div><div class="description">OBD上方“储物盒”</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g5/M07/07/64/userphotos/2017/07/19/07/500_wKgHzFlumMyACYYvAAgwK6U4yaw548.jpg" style="height:933px;width:700px"  /><div layer2="desc-s"></div><div class="description">中央扶手箱侧饰板也要搞掉</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g5/M04/08/EF/userphotos/2017/07/19/07/500_wKjB0llumM2AePfOAAWDKZRnhBQ042.jpg" style="height:525px;width:700px"  /><div layer2="desc-s"></div><div class="description">这是全部拆完图片<br />中控台饰板和大屏导航也都搞掉了</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g5/M08/0D/EC/userphotos/2017/07/19/07/500_wKgH21lumMyABokOAANUIgjg8zc569.jpg" style="height:525px;width:700px"  /><div layer2="desc-s"></div><div class="description">原车HUD位置有预留孔~</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-picture"><img src="http://club2.autoimg.cn/album/g5/M08/07/64/userphotos/2017/07/19/07/500_wKgHzFlumM-ATdgkAAbptGxm55M983.jpg" style="height:933px;width:700px"  /></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g18/M07/07/15/userphotos/2017/07/19/07/500_wKgH2VlumM-ALw0NAAFZhPiH_cQ444.jpg" style="height:933px;width:700px"  /><div layer2="desc-s"></div><div class="description">下放HUD支架并把线束布局好</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g5/M05/08/EF/userphotos/2017/07/19/07/500_wKjB0llumNGAI87rAAGzktc6uG4192.jpg" style="height:933px;width:700px"  /><div layer2="desc-s"></div><div class="description">下放HUD主机</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g18/M09/0E/3F/userphotos/2017/07/19/07/500_wKgH6FlumNGAFphYAAX3wALKCvs508.jpg" style="height:933px;width:700px"  /><div layer2="desc-s"></div><div class="description">引线</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g18/M09/07/16/userphotos/2017/07/19/07/500_wKgH2VlumNKAbM_fAAVICDcsdXs088.jpg" style="height:933px;width:700px"  /><div layer2="desc-s"></div><div class="description">做好的线束，完美。<br />到此弄完可以原路装回</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g5/M01/08/EF/userphotos/2017/07/19/07/500_wKjB0llumNKAejTRAAXa0JLC9Tk643.jpg" style="height:933px;width:700px"  /><div layer2="desc-s"></div><div class="description">更换HMI人机2.5<br />实现carplay映射功能</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g18/M08/0A/E8/userphotos/2017/07/19/07/500_wKjBxVlumNSATsBPAAHhgcnzcPI355.jpg" style="height:933px;width:700px"  /><div layer2="desc-s"></div><div class="description">配套把收音机模块也换掉了，否则映射没有声音</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g18/M09/0A/E8/userphotos/2017/07/19/07/500_wKjBxVlumNSACFOyAAOg5EsCX4E500.jpg" style="height:525px;width:700px"  /><div layer2="desc-s"></div><div class="description">施工中。。。<br />到此HMI2.5模块也都更换完毕。<br /><br />最后刷机完美匹配。</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g18/M0B/0E/3F/userphotos/2017/07/19/07/500_wKgH6FlumNSAT6djAALzEPo_NL0149.jpg" style="height:525px;width:700px"  /><div layer2="desc-s"></div><div class="description">路测完美。<br /></div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br />

【图】改北美版昂科威原厂HUD抬头显示+HMI2.5（CarPlay）映射
