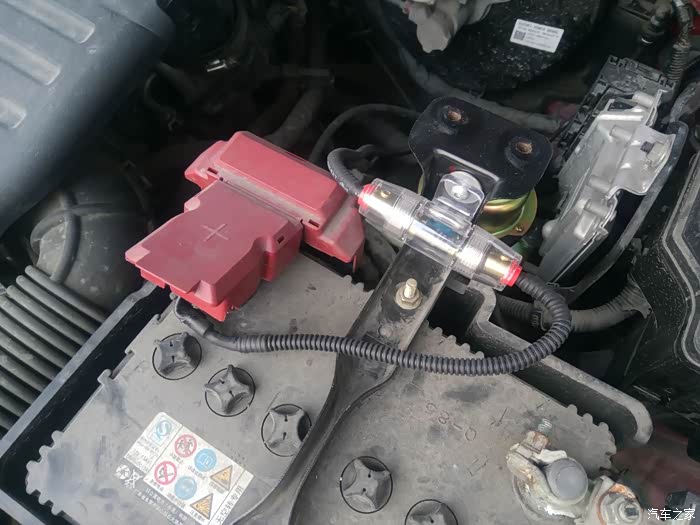

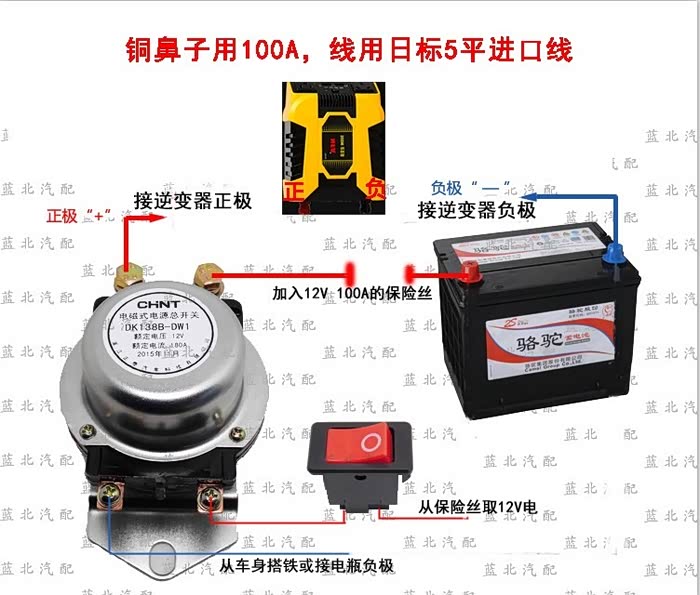

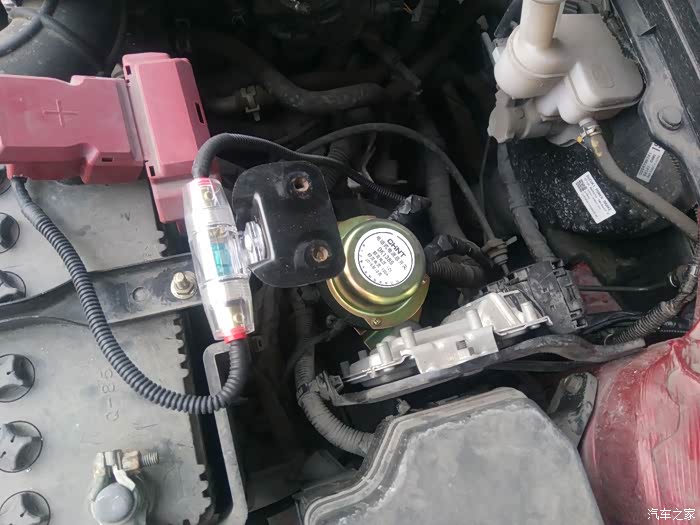

<div layer1="text-s"></div><div class="tz-paragraph">手痒了二年了，一直都有加装的想法，在网上也看了很多加装的案例，终于还是没忍住，图片是在我加装完成后使用一个月拍的，刚开始怕不稳定，现在用了一个多月信心满满，哈哈。。。开始拆腾走起</div><div layer1="text-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g19/M02/A0/4C/userphotos/2017/06/07/09/500_wKgFU1k3VaGAULrSAAHVXYyQnNc960.jpg" style="height:596px;width:700px"  /><div layer2="desc-s"></div><div class="description">先搞个设计图，心里有个底。<br />意思看图。标的很明白了。一目了然</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g19/M15/A5/D9/userphotos/2017/06/07/09/500_wKgFWFk3VZ-ADWNpAAUI68uJNzk155.jpg" style="height:525px;width:700px"  /><div layer2="desc-s"></div><div class="description">从电瓶正负接搭电至保险丝，在电瓶的固定支架上打两孔。安装这保险丝，这样既不影响美观，又不影响锋驭原车的电瓶塑料盖。</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g19/M00/A0/4C/userphotos/2017/06/07/09/500_wKgFU1k3VaCANZnAAATr9QDpkYU512.jpg" style="height:525px;width:700px"  /><div layer2="desc-s"></div><div class="description">这里还给电磁开关做了个架子，不过是按原车的孔位做的，在不影响原车的支架可靠性的同时加装的支架，刚好靠近ECU这里有空位，就定在这个位置了。</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g10/M0D/CA/C6/userphotos/2017/06/07/09/500_wKgH4Fk3VZiAE8kWAAdqENsbfx8150.jpg" style="height:933px;width:700px"  /><div layer2="desc-s"></div><div class="description">给俺的逆变器做个支架，安装到主驾的座位下面</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g19/M0A/A1/FB/userphotos/2017/06/07/09/500_wKjBxFk3VZmAH0DgAAfApahLMM0140.jpg" style="height:933px;width:700px"  /><div layer2="desc-s"></div><div class="description">续上图，打孔，上漆。</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g7/M07/C8/0F/userphotos/2017/06/07/09/500_wKjB0Fk3VZqAM_3TAASwzYmwkOY824.jpg" style="height:525px;width:700px"  /><div layer2="desc-s"></div><div class="description">上完漆将逆变器安装在原车主驾位下，刚好主驾下左右都留有孔位，直接用螺丝安装完毕，非常牢固。</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g19/M00/A5/D9/userphotos/2017/06/07/09/500_wKgFWFk3VZ-AX_gxAARblRvxZSM788.jpg" style="height:525px;width:700px"  /><div layer2="desc-s"></div><div class="description">安装完成后，露出插座及开关面板，方便自己插电及按逆变器的通电开关。</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g7/M13/CB/F2/userphotos/2017/06/07/09/500_wKgH3Vk3VaGATlh7AAUuZJb3EvU656.jpg" style="height:525px;width:700px"  /><div layer2="desc-s"></div><div class="description">从保险丝取电，加装小开关控制电磁开关。在汽车未发动的情况下不让电瓶向逆变器供电，在汽车发动后,待点烟保险丝通电后，就由这个小开关控制是否给逆变器供电。</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g10/M15/CA/C6/userphotos/2017/06/07/09/500_wKgH4Fk3VZiAEZF7AAXsfPlmbNo131.jpg" style="height:933px;width:700px"  /><div layer2="desc-s"></div><div class="description">走线全程套耐高温阻燃管，不改原车线路走线。</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br />

锋驭加装逆变器12V转220V自驾车友的福音
