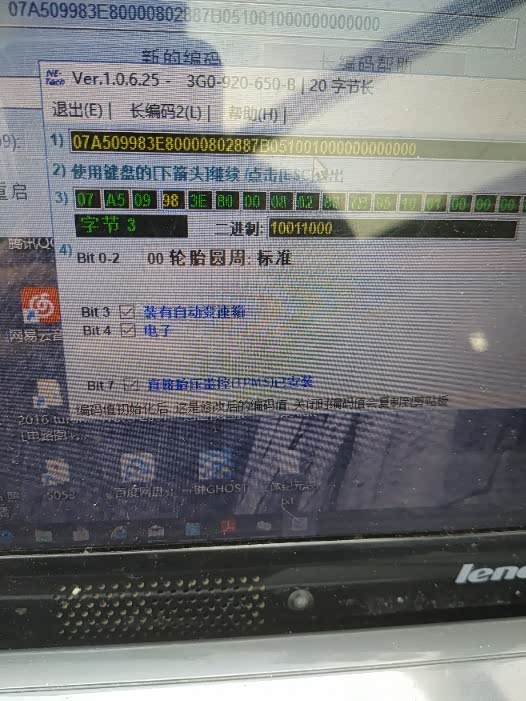

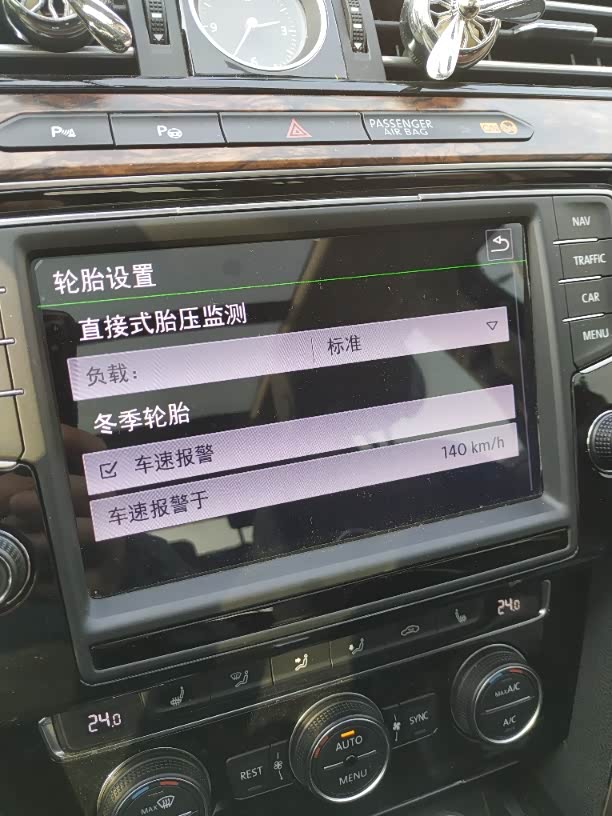

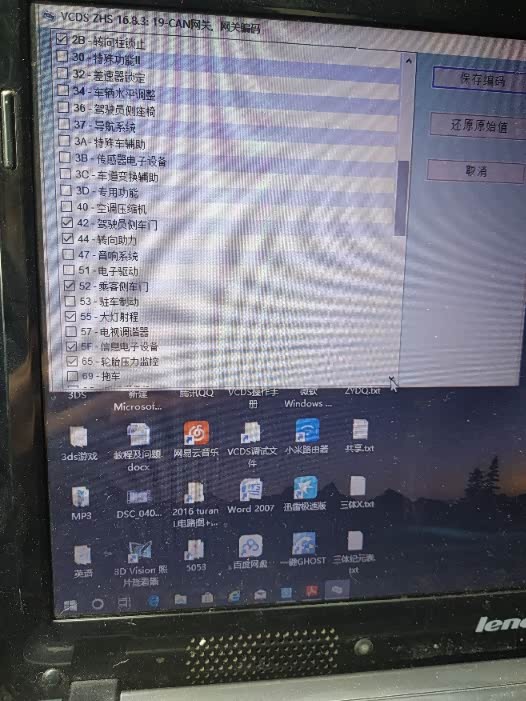

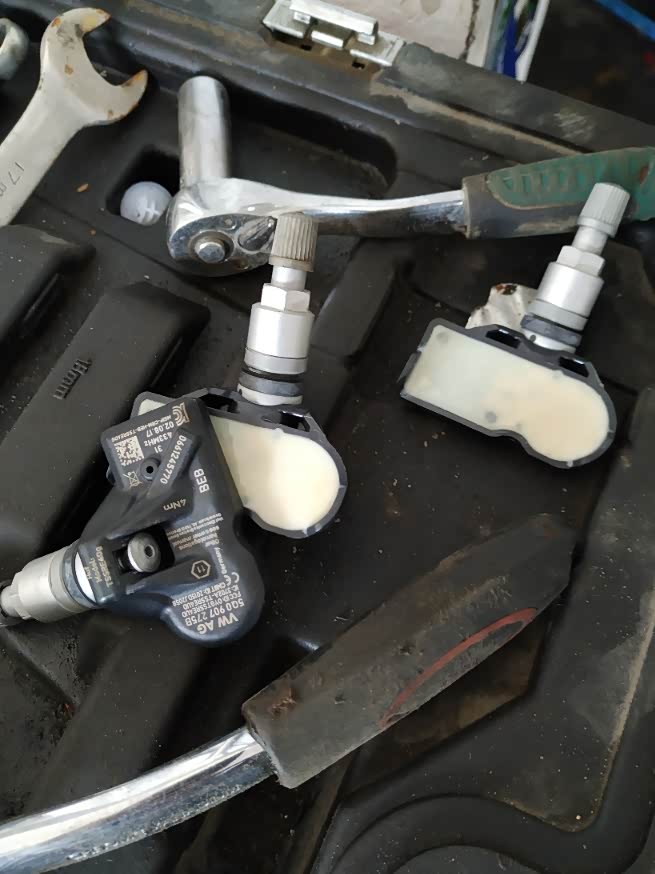

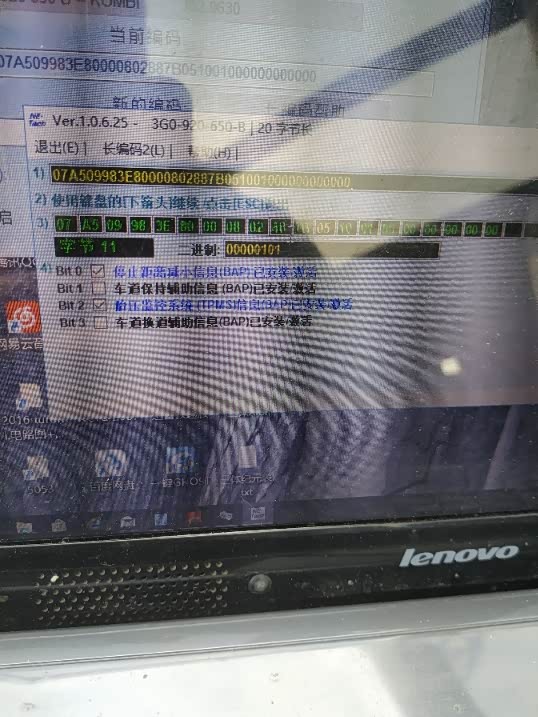

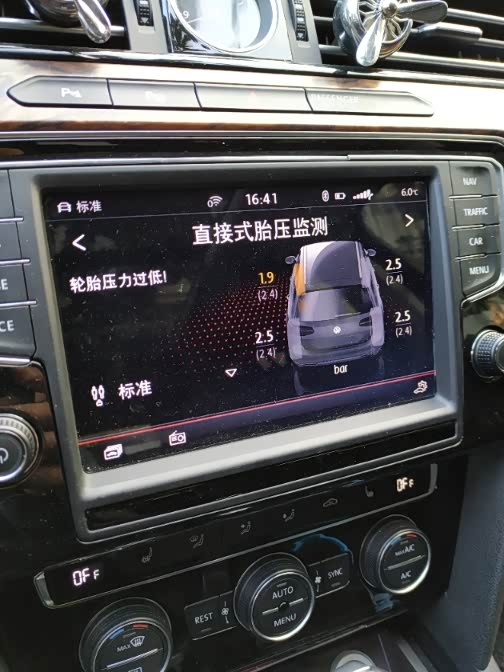

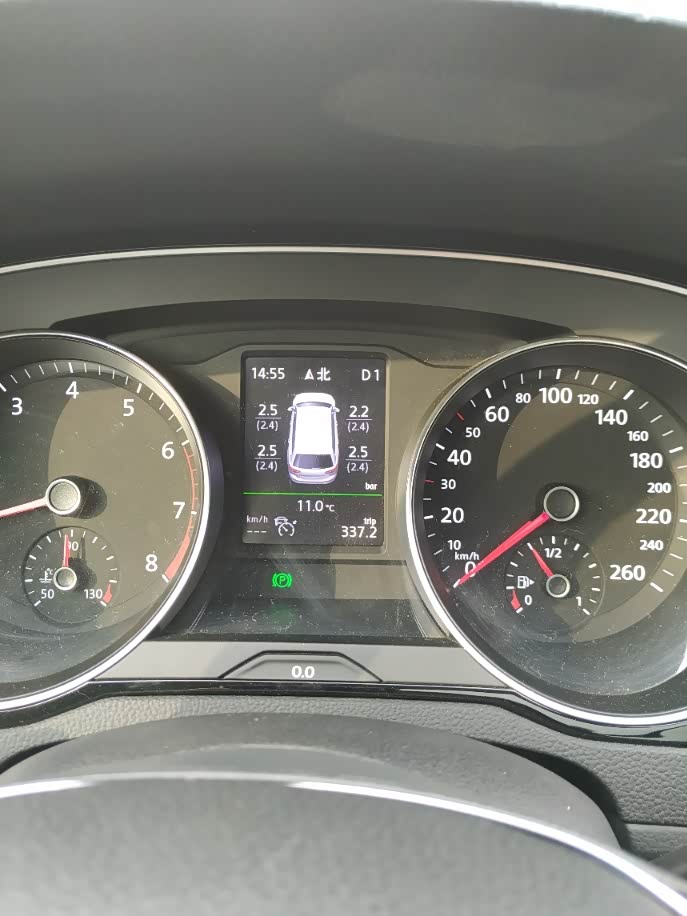

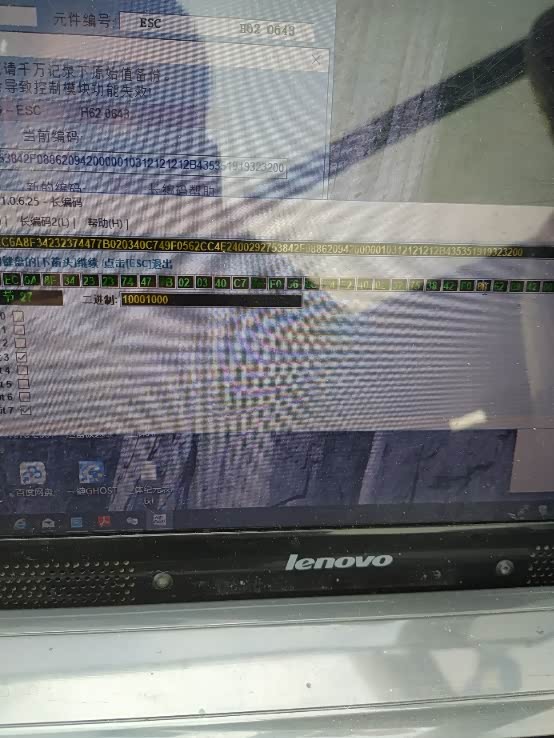

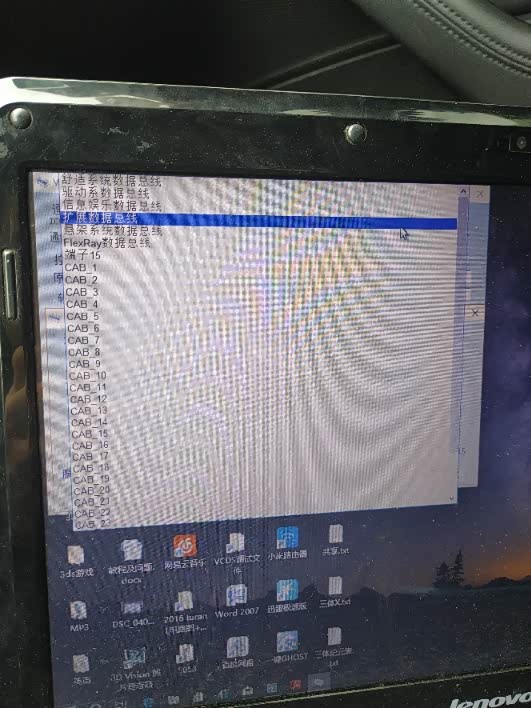

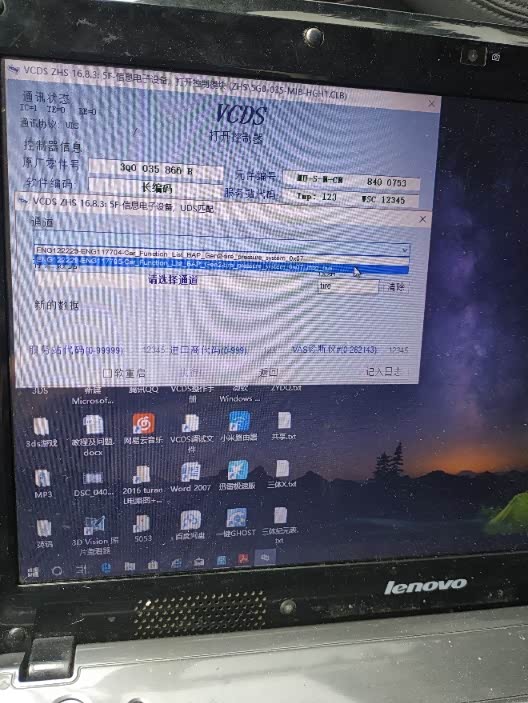

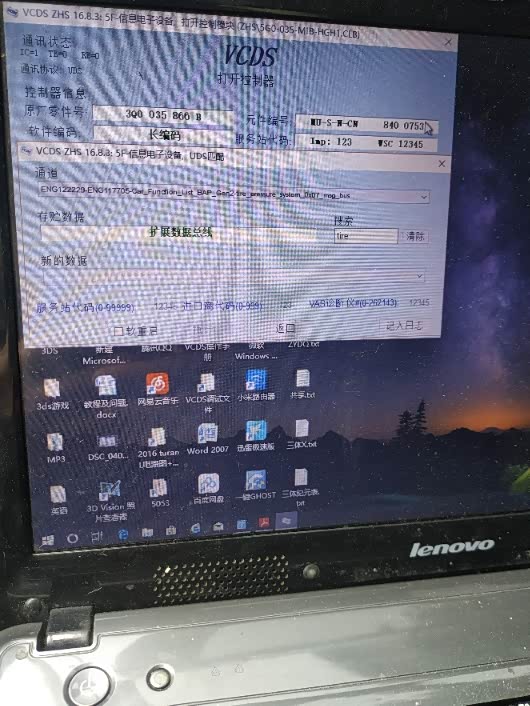

<div layer1="text-s"></div><div class="tz-paragraph">这里好久没来发贴了，年前自己收了套胎压，尝试的动手安装调试了下，分享下<br />MQB2代胎压配件不贵，安装调试简单，动手能力强的都可以试试看自己安装。<br />接线定义这里说一下<br />胎压模块1号接网关7号<br />胎压模块2号接保险丝常电<br />胎压模块3号接网关17号<br />胎压模块4号接地(搭铁)</div><div layer1="text-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g28/M03/ED/F5/userphotos/2019/02/20/19/ChsEfVxtPweAXAkpAAXVR1x8urA122.jpg" style="height:3000px;width:4000px"  /><div layer2="desc-s"></div><div class="description">2代胎压模块</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g28/M06/EB/B1/userphotos/2019/02/20/19/ChcCR1xtPwmAScZ_AAWtlS-UbWw839.jpg" style="height:3000px;width:4000px"  /><div layer2="desc-s"></div><div class="description">原厂胎压传感器4个</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="text-s"></div><div class="tz-paragraph"><br />传感器找轮胎店替换原车的，做好动平衡，模块按接线定义接好线，沿车门槛走线到后备箱右后侧，找个地方固定好<br />注，必须要高配网关才可以，舒行的中配网关少了7和17的针脚，如果改过大灯或者ACC的应该已经是高配网关了<br />接下来就是调试编码<br /></div><div layer1="text-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g28/M04/EB/B1/userphotos/2019/02/20/19/ChcCR1xtPwuATkF5AATKRohpS1k447.jpg" style="height:3000px;width:4000px"  /><div layer2="desc-s"></div><div class="description">进入网关，安装列表里65胎压打钩</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g28/M01/EB/B1/userphotos/2019/02/20/19/ChcCR1xtPw2AO5fuAATbjomNYW4447.jpg" style="height:3000px;width:4000px"  /><div layer2="desc-s"></div><div class="description">5F里MIB主机匹配通道里这个选项激活</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g28/M03/ED/F6/userphotos/2019/02/20/19/ChsEfVxtPw-AITfKAATBIAp5jmM647.jpg" style="height:3000px;width:4000px"  /><div layer2="desc-s"></div><div class="description">选择这个，原车是悬架，现在改成拓展</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g28/M04/EB/B2/userphotos/2019/02/20/19/ChcCR1xtPxGAGAQLAAT2g4ne8IE734.jpg" style="height:3000px;width:4000px"  /><div layer2="desc-s"></div><div class="description">执行<br /></div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g28/M03/E8/17/userphotos/2019/02/20/19/ChsEnlxtPxOAWhulAATjaX5a8dg208.jpg" style="height:3000px;width:4000px"  /><div layer2="desc-s"></div><div class="description">进入ABS，把27.28字节改成88，62，注意先把原车编码备份好</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g28/M0A/ED/F7/userphotos/2019/02/20/19/ChsEfVxtPxWAcDWFAATfdAM9Sx0047.jpg" style="height:3000px;width:4000px"  /><div layer2="desc-s"></div><div class="description">进入仪表，字节3直接胎压已安装</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g28/M08/E8/18/userphotos/2019/02/20/19/ChsEnlxtPxiAfDSuAATwe1s-XgY025.jpg" style="height:3000px;width:4000px"  /><div layer2="desc-s"></div><div class="description">字节11胎压监测系统已安装</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="text-s"></div><div class="tz-paragraph">好了，编码，调试全部弄好，开车出去跑个2公里，这是中控屏幕和仪表上就能全部显示了</div><div layer1="text-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g28/M09/ED/F8/userphotos/2019/02/20/19/ChsEfVxtPxmAO-6TAAXbyFkM_ck368.jpg" style="height:3000px;width:4000px"  /><div layer2="desc-s"></div><div class="description">仪表显示，在本车状态中</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g28/M07/E8/18/userphotos/2019/02/20/19/ChsEnlxtPxuAGzMEAAQBZFtVQz4881.jpg" style="height:3000px;width:4000px"  /><div layer2="desc-s"></div><div class="description">中控屏幕显示</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g27/M03/EE/0E/userphotos/2019/02/20/19/ChcCQFxtPx2AenJgAAXF8j78zE4728.jpg" style="height:3000px;width:4000px"  /><div layer2="desc-s"></div><div class="description">轮胎设置模式</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g27/M0B/E9/FC/userphotos/2019/02/20/19/ChsEnVxtPx-AMU5SAAQF_ZB_9-M821.jpg" style="height:3000px;width:4000px"  /><div layer2="desc-s"></div><div class="description">放气测试，胎压报警</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g27/M05/EE/0F/userphotos/2019/02/20/19/ChcCQFxtPyGAfA_nAAVftSzPSIA581.jpg" style="height:3000px;width:4000px"  /><div layer2="desc-s"></div><div class="description">位置准确，左前轮，补气中</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br />

自己动手安装2代胎压
