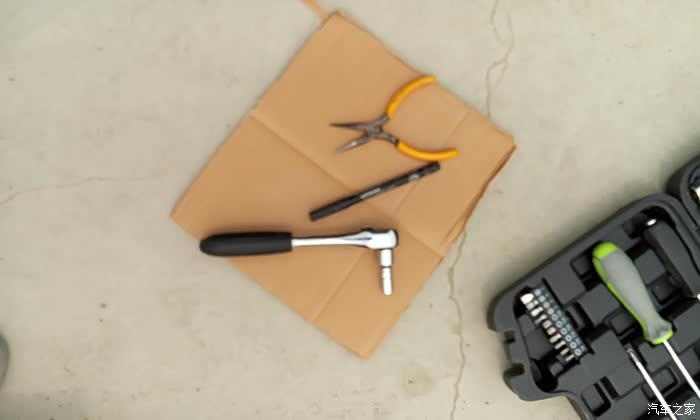

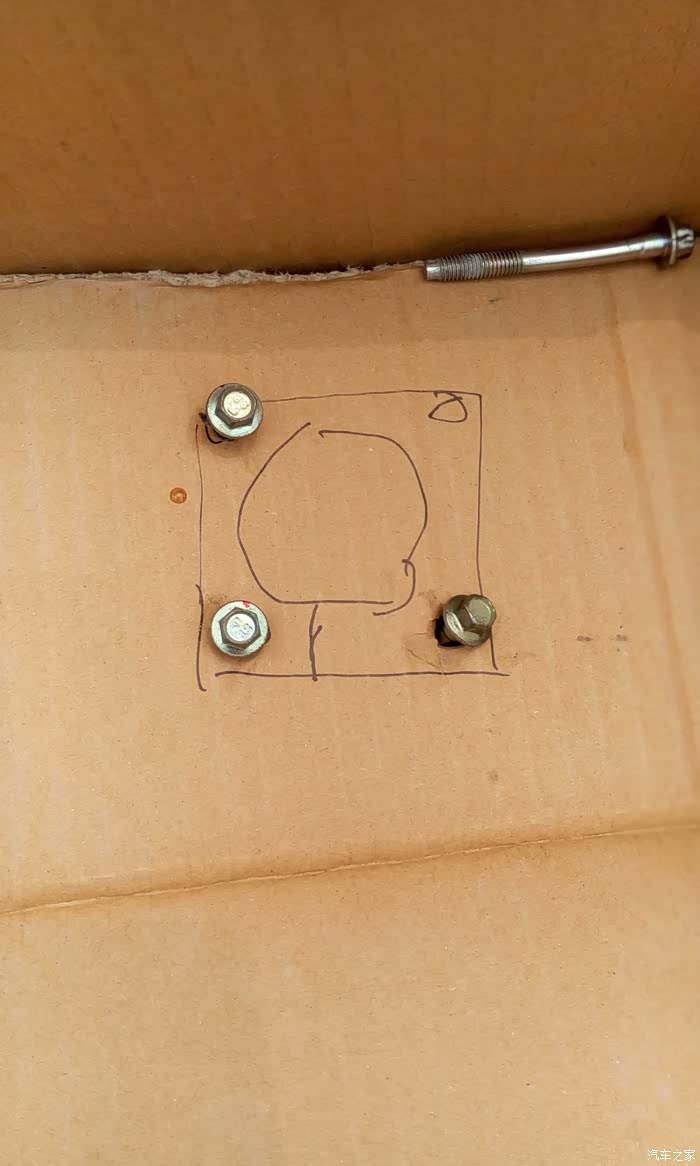

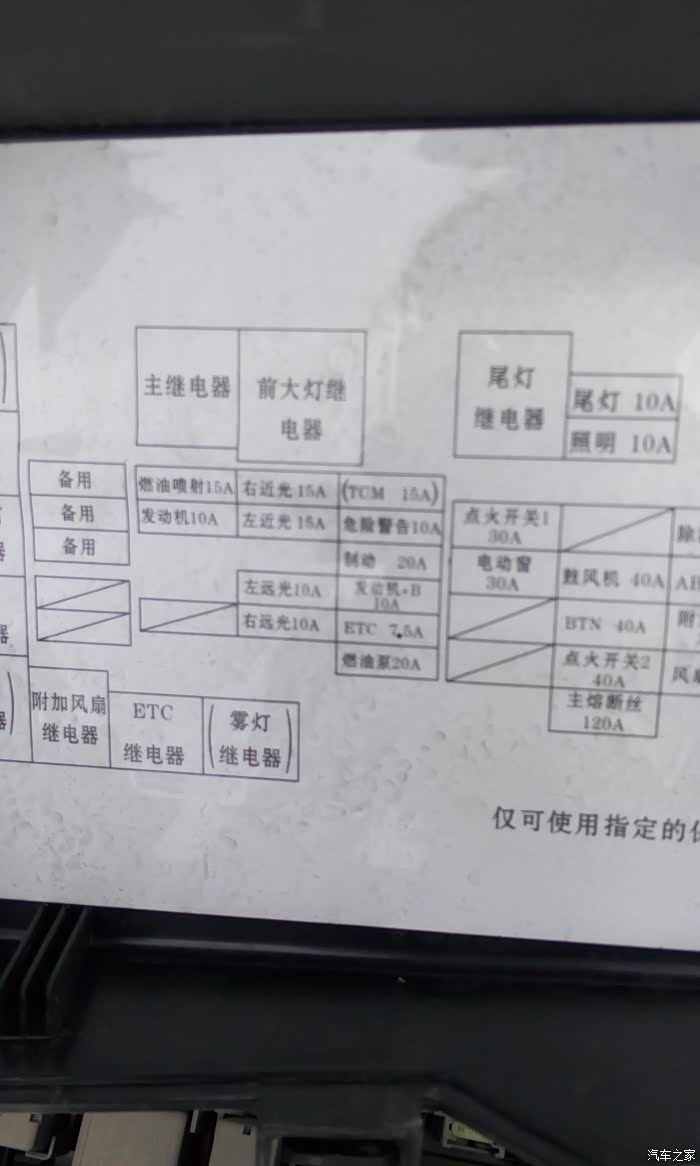

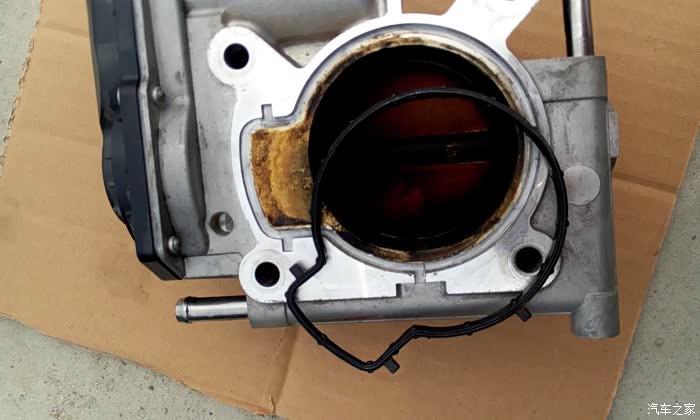

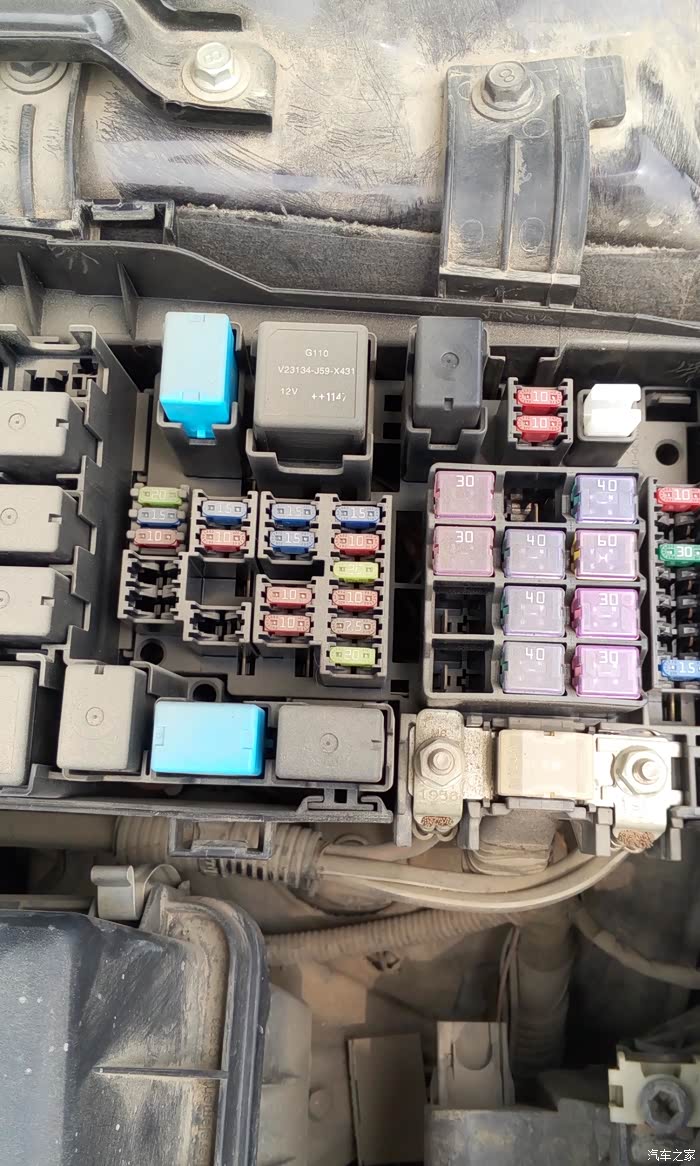

<div layer1="text-s"></div><div class="tz-paragraph">这个是夏天清洁的，一直没有时间上传，之前在4s店被忽悠做了一次，我全程看了一遍，没啥难度，刚好过了2万，试试手吧。过程和结果都挺满意的关键点：1，只能是在冷车的时候操作,2使用记号笔记录螺丝旋位，3安装时先把下冷却液管接上,4，垫圈千万不能丢了</div><div layer1="text-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g20/M0C/3A/C9/userphotos/2016/02/03/11/500_wKgFVFaxeheACEKRAA8pTROYYuE541.jpg" style="height:1166px;width:700px"  /><div layer2="desc-s"></div><div class="description">打开保险盒，拔下主继电器的保险丝，这样就无需动蓄电池的正极了</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g20/M10/39/9A/userphotos/2016/02/03/11/500_wKjBw1axeheAMptOAAdP59mlsQM797.jpg" style="height:1166px;width:700px"  /><div layer2="desc-s"></div><div class="description">保险背面有说明</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g21/M01/3A/6A/userphotos/2016/02/03/11/500_wKgFWlaxehmAVkUvAALYpHRYEfs121.jpg" style="height:420px;width:700px"  /><div layer2="desc-s"></div><div class="description">工具是尖嘴钳，记号笔，套筒</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g21/M07/3A/6A/userphotos/2016/02/03/11/500_wKgFWlaxehyAAN1MAA6SNQeJCGQ724.jpg" style="height:1166px;width:700px"  /><div layer2="desc-s"></div><div class="description">先把进气筒取消来，十字螺丝刀就可以</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g21/M02/3A/6A/userphotos/2016/02/03/11/500_wKgFWlaxeh2ADsm4AAqt4bWCflk884.jpg" style="height:1166px;width:700px"  /><div layer2="desc-s"></div><div class="description">这是取消进气筒后的画面</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g21/M0A/3A/4F/userphotos/2016/02/03/11/500_wKgFVVaxeh6AMMw6AAikjMN2hGo660.jpg" style="height:1166px;width:700px"  /><div layer2="desc-s"></div><div class="description">拔下节气门的电源线，把红色的向外拔，然后再把黑色的，就可以取下了</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g21/M0A/3A/40/userphotos/2016/02/03/11/500_wKjBwlaxeiCAJdOiAAm4rFFYeE8623.jpg" style="height:1166px;width:700px"  /><div layer2="desc-s"></div><div class="description">取下冷却液管，使用尖嘴钳，技巧把卡簧往外撑着向外移动，使用记号笔记录螺丝，避免后面上不紧或者上的太紧。</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g21/M0B/3A/40/userphotos/2016/02/03/11/500_wKjBwlaxeiGAZ9n2AAL591toidM964.jpg" style="height:420px;width:700px"  /><div layer2="desc-s"></div><div class="description">这是拆下的节气门</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g21/M0A/3A/40/userphotos/2016/02/03/11/500_wKjBwlaxeiOAIdwnAAswA3t8Evc618.jpg" style="height:1166px;width:700px"  /><div layer2="desc-s"></div><div class="description">给各个螺丝做标记，以免出错</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g21/M0C/3A/6B/userphotos/2016/02/03/11/500_wKgFWlaxeiaAeFQdAAUXr3iJDyM642.jpg" style="height:420px;width:700px"  /><div layer2="desc-s"></div><div class="description">垫圈非常重要，千万别丢了，这个是靠近气缸的那一面，</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g21/M0E/3A/40/userphotos/2016/02/03/11/500_wKjBwlaxeimABZnSAAvR1PcPnd4320.jpg" style="height:1166px;width:700px"  /><div layer2="desc-s"></div><div class="description">开始清洗了，黑色东西已经出来了，已经干净了</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g21/M10/3A/41/userphotos/2016/02/03/11/500_wKjBwlaxeiyAAs0bAAuvk8IBMvM449.jpg" style="height:1166px;width:700px"  /><div layer2="desc-s"></div><div class="description">再用螺丝刀掰开节气门铜片，清洗里面的缝隙</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g21/M04/3A/50/userphotos/2016/02/03/11/500_wKgFVVaxejCATn2rAA3z4ciO1Fs426.jpg" style="height:1166px;width:700px"  /><div layer2="desc-s"></div><div class="description">反操作全部复位，记住先把下冷却液管接上，免得上完节气门就不好接了，很难，另外按之前的标记螺丝上到位，千万不能过。</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g21/M15/3A/41/userphotos/2016/02/03/11/500_wKjBwlaxejGABcA_AAmplZ5mPsQ431.jpg" style="height:1166px;width:700px"  /><div layer2="desc-s"></div><div class="description">打火启动，一切正常，十元成本，4S上次要了我196.</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br />

自己动手清洁节气门，成本十元，时间30分钟，省了180元
