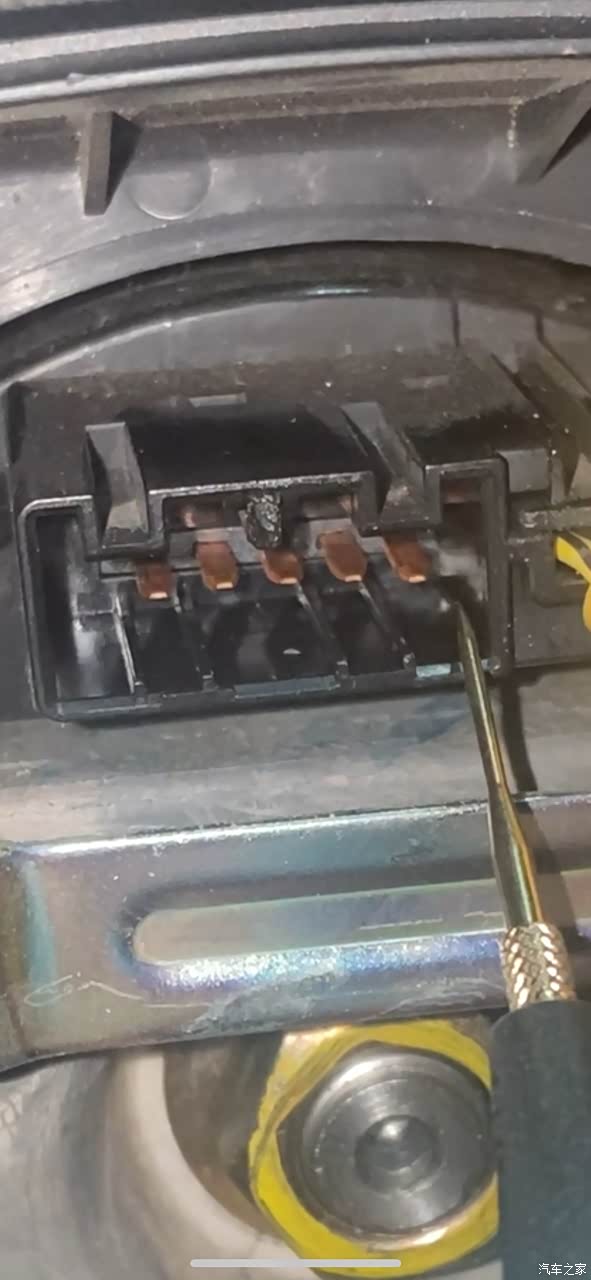

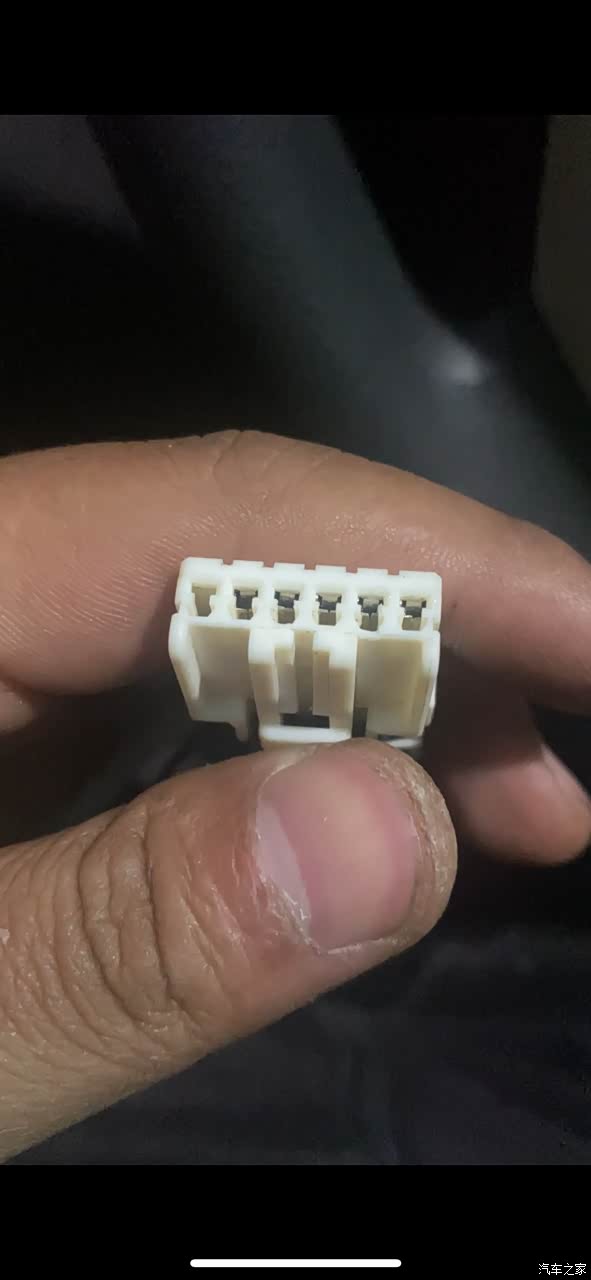

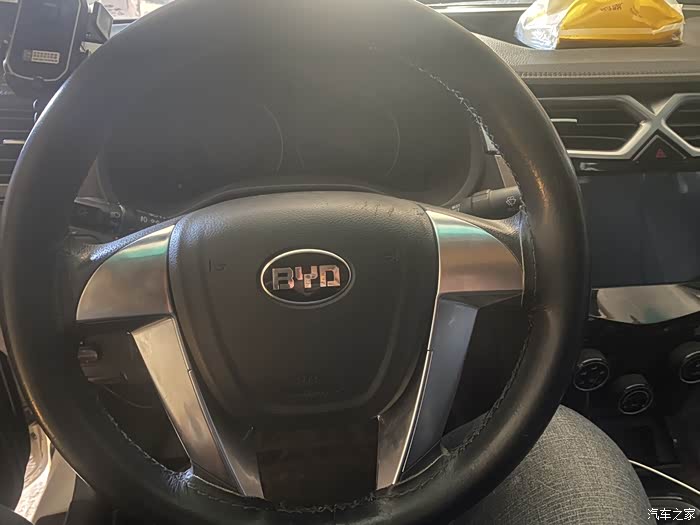

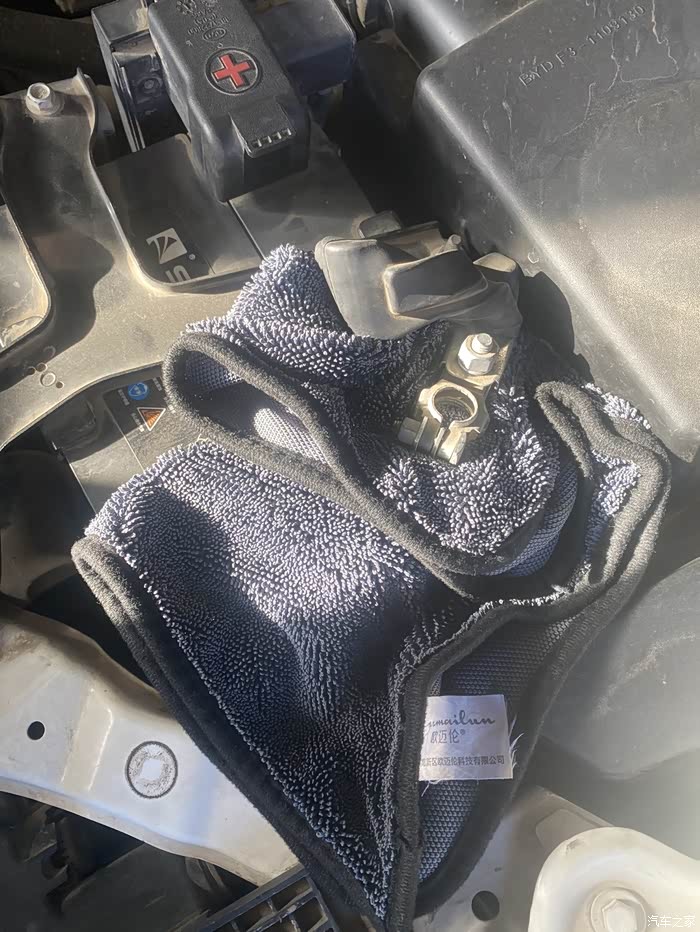

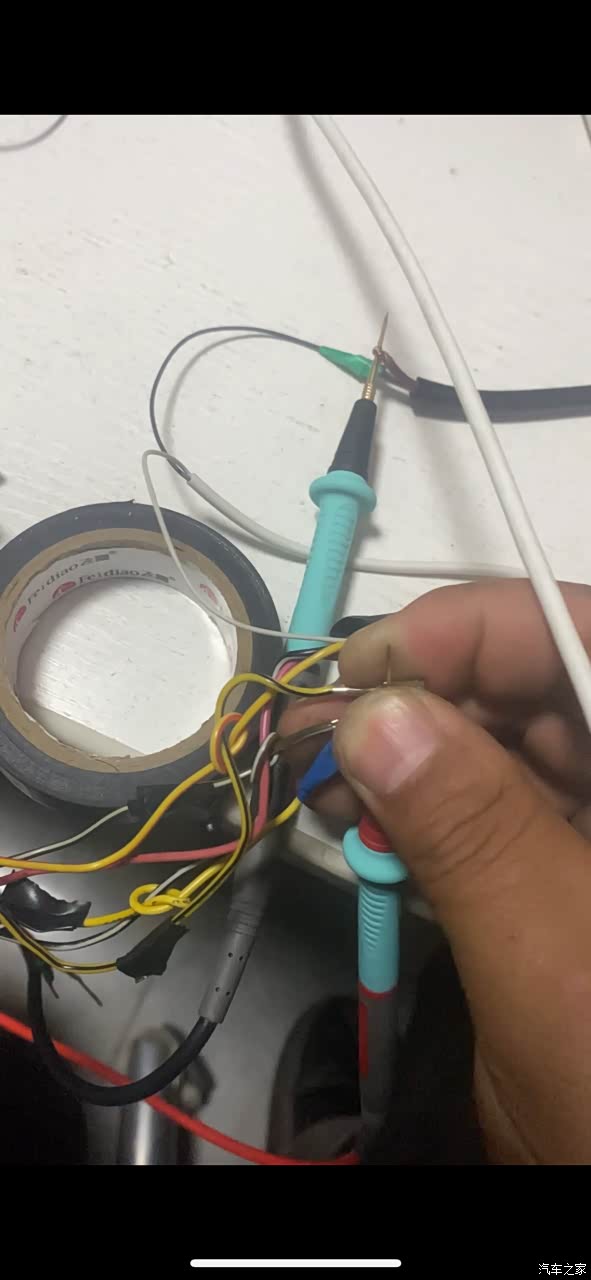

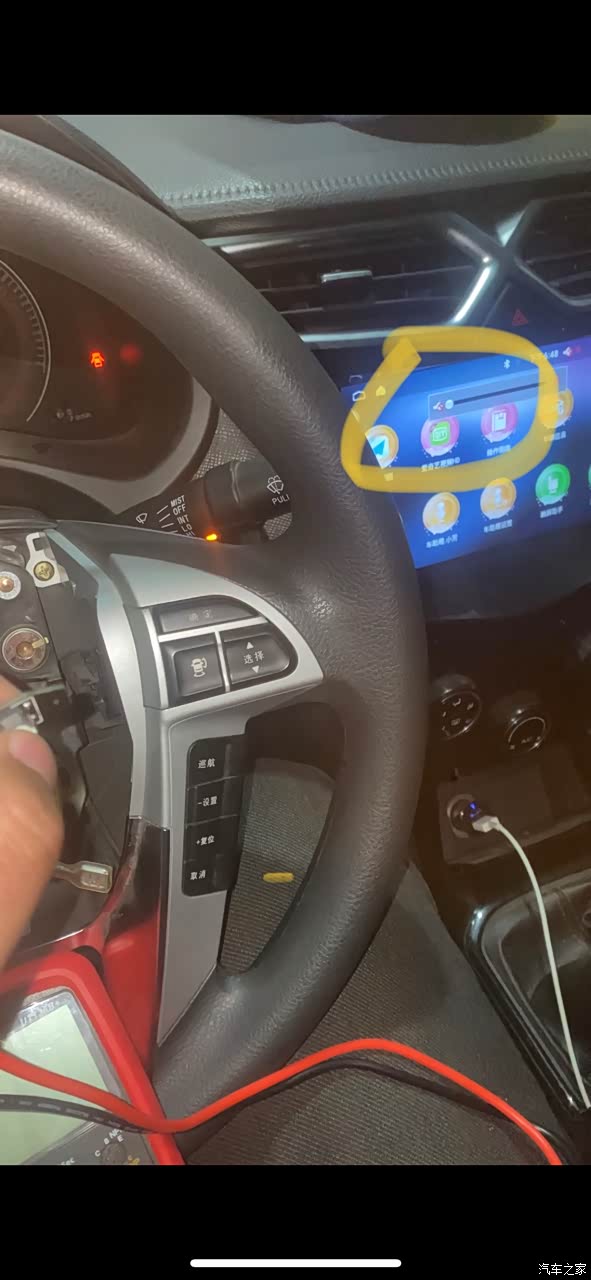

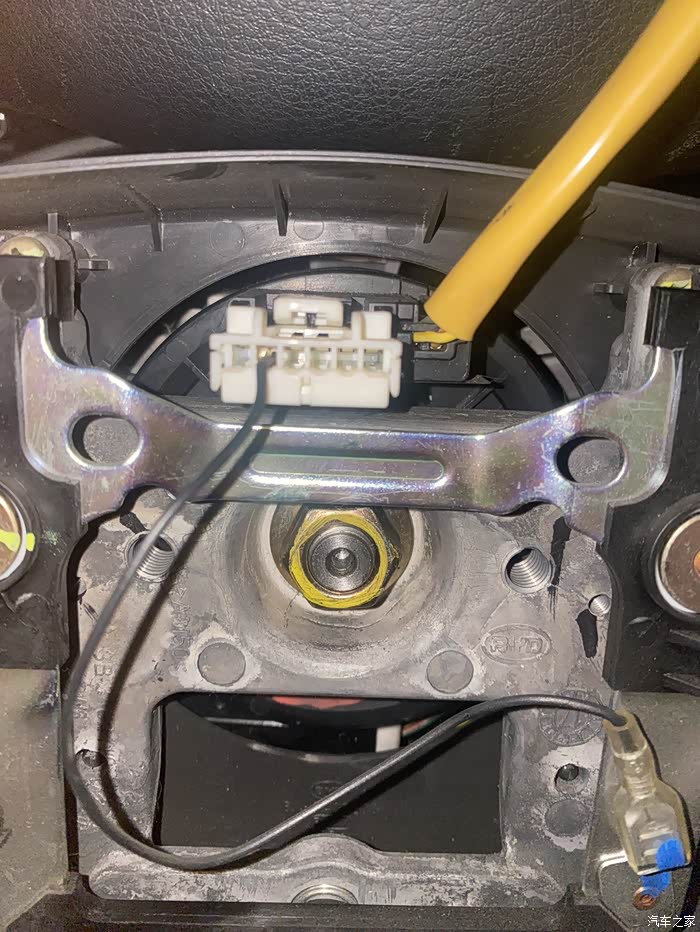

<div layer1="text-s"></div><div class="tz-paragraph">买的是“速锐”的按键，原插头无法直接使用，重新压了端子，左边按键都可以使用，右边能设置四个按键，不过发现在多了也没啥用，车机没带那么多功能。。。我图好看就装了两边。<br /><br />下边开始操作<br /></div><div layer1="text-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g31/M01/6B/18/userphotos/2025/03/13/20/500_ChxoHmfS012AEDfEAAh5fZQUQ3s128.jpg" style="height:1126px;width:1500px"  /><div layer2="desc-s"></div><div class="description">原装无按键，为了听歌和接电话方便决定改装</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g31/M0A/6B/3E/userphotos/2025/03/13/20/500_ChtlyGfS016AXjq-AAu1rCo_4FI402.jpg" style="height:1500px;width:1126px"  /><div layer2="desc-s"></div><div class="description">加装之前一定要断电瓶的电，我拆的负极</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g31/M0B/6B/54/userphotos/2025/03/13/20/500_ChxoHWfS016AQdQRAAu6khqBkU8186.jpg" style="height:1500px;width:1126px"  /><div layer2="desc-s"></div><div class="description">拆气囊就是左右两边内六角螺丝，这里没拍。拆掉气囊后发现有预留插头！</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g31/M07/6B/18/userphotos/2025/03/13/20/500_ChxoHmfS01-ACoL1AAjjLbW_tmE495.jpg" style="height:1280px;width:591px"  /><div layer2="desc-s"></div><div class="description">五个触点？</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g31/M04/6B/54/userphotos/2025/03/13/20/500_ChxoHWfS02CAU8e5AAp85DrP8GA631.jpg" style="height:1126px;width:1500px"  /><div layer2="desc-s"></div><div class="description">这是改装线束时测试每组定义耗费三天约四个小时，较麻烦。主要是全网未买到左右两边的线束，我又买好了按键没有回头路，只能自己找定义了</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g31/M08/6B/3E/userphotos/2025/03/13/20/500_ChtlyGfS02CAWNfHAAhbrcYsIBw484.jpg" style="height:1280px;width:591px"  /><div layer2="desc-s"></div><div class="description">万用表测量每组按键及灯光通路</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g31/M01/6B/19/userphotos/2025/03/13/20/500_ChxoHmfS02GASS5eAAgXhCcyjGU545.jpg" style="height:1280px;width:591px"  /><div layer2="desc-s"></div><div class="description">每组都要反复测，不能冲突更不能短路！</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g31/M04/6B/54/userphotos/2025/03/13/20/500_ChxoHWfS02KAPoOtAAqZ5_6p7hQ153.jpg" style="height:1280px;width:591px"  /><div layer2="desc-s"></div><div class="description">测试完成！确定线束定义后，上机实测功能，万用表观察“通电情况”即电压影响，因为这里5v供电</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g31/M07/6B/19/userphotos/2025/03/13/20/500_ChxoHmfS02KAccXPAAlYlyruy7w064.jpg" style="height:1280px;width:591px"  /><div layer2="desc-s"></div><div class="description">音量功能可以用，其他也可以用。大功告成！</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g31/M01/6B/54/userphotos/2025/03/13/20/500_ChxoHWfS02OAFKGoAAfwGuGoodE335.jpg" style="height:1280px;width:591px"  /><div layer2="desc-s"></div><div class="description">压好端子更专业！插拔方便也安全！</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g31/M07/6B/19/userphotos/2025/03/13/20/500_ChxoHmfS02SARjrrAAqbdsxh-4I075.jpg" style="height:1500px;width:1126px"  /><div layer2="desc-s"></div><div class="description">左右四组线束非常凌乱，醋酸胶带捆绑一起，放到支架底下吧！顺便端子口打上热熔胶更紧固结实！</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g31/M0B/6B/54/userphotos/2025/03/13/20/500_ChxoHWfS02WANJOrAAmbjZkh8EI116.jpg" style="height:1500px;width:1126px"  /><div layer2="desc-s"></div><div class="description">完成了！提升了一个档次，很满意！[ahl_笑]</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br />

第三代f3加装多功能按键
