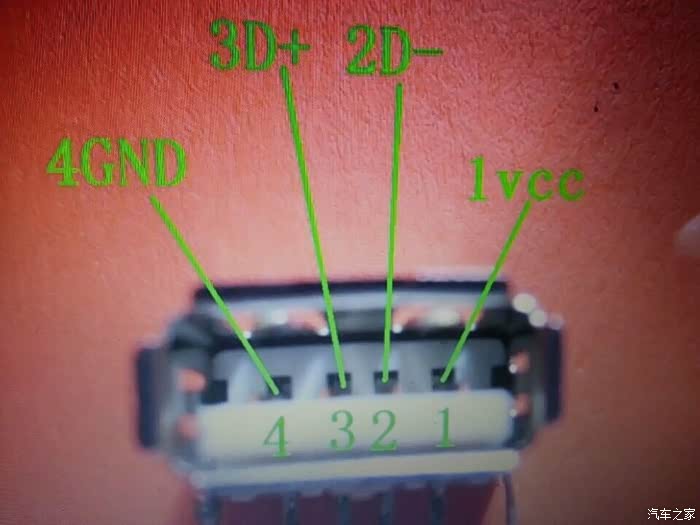

<div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g27/M0A/B7/E8/userphotos/2021/12/15/12/500_ChwFkWG5dLuAH9x4AA2EA7xp5-I102.jpg" style="height:933px;width:700px"  /><div layer2="desc-s"></div><div class="deXss ion">老款车机，没有aux，没有蓝牙，好歹有个US&nbsp;B口，不过需要转接线</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g28/M0A/8C/3B/userphotos/2021/12/15/12/500_ChxkmmG5dL2AB4JhAAvMXx3N-0s780.jpg" style="height:933px;width:700px"  /><div layer2="desc-s"></div><div class="deXss ion">原车这样的，miniUS&nbsp;B，需要一根转接线转成普通US&nbsp;B插U盘</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g27/M03/B7/E8/userphotos/2021/12/15/12/500_ChwFkWG5dL2AXfGLAANiUNu7eHI510.jpg" style="height:933px;width:700px"  /><div layer2="desc-s"></div><div class="deXss ion">车机面板拆开来，原miniUS&nbsp;B座接口定义如图，图是借的其他款的，接口定义一样</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g28/M0A/9C/51/userphotos/2021/12/15/12/500_ChwFkmG5dL6ACOd0AAPrDlgB-48367.jpg" style="height:525px;width:700px"  /><div layer2="desc-s"></div><div class="deXss ion">普通US&nbsp;B母座的接线定义图</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="text-s"></div><div class="tz-paragraph">找了块废US&nbsp;B集线器，拆了个US&nbsp;B母座。<br />原来的miniUS&nbsp;B母座直接拆了扔掉，<br />对应好四个点找细线用电烙铁连接上新的母座。<br />对好位置热熔胶固定到pcb板上。<br />面板都不用开孔，现成的，直接从原面板孔位出来就行了。<br /></div><div layer1="text-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g27/M07/B7/E8/userphotos/2021/12/15/12/500_ChwFkWG5dL-AfmfVAAvgsMVNXx8170.jpg" style="height:933px;width:700px"  /><div layer2="desc-s"></div><div class="deXss ion">完成图</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br />

老款收音机车机mini usb口改普通usb
