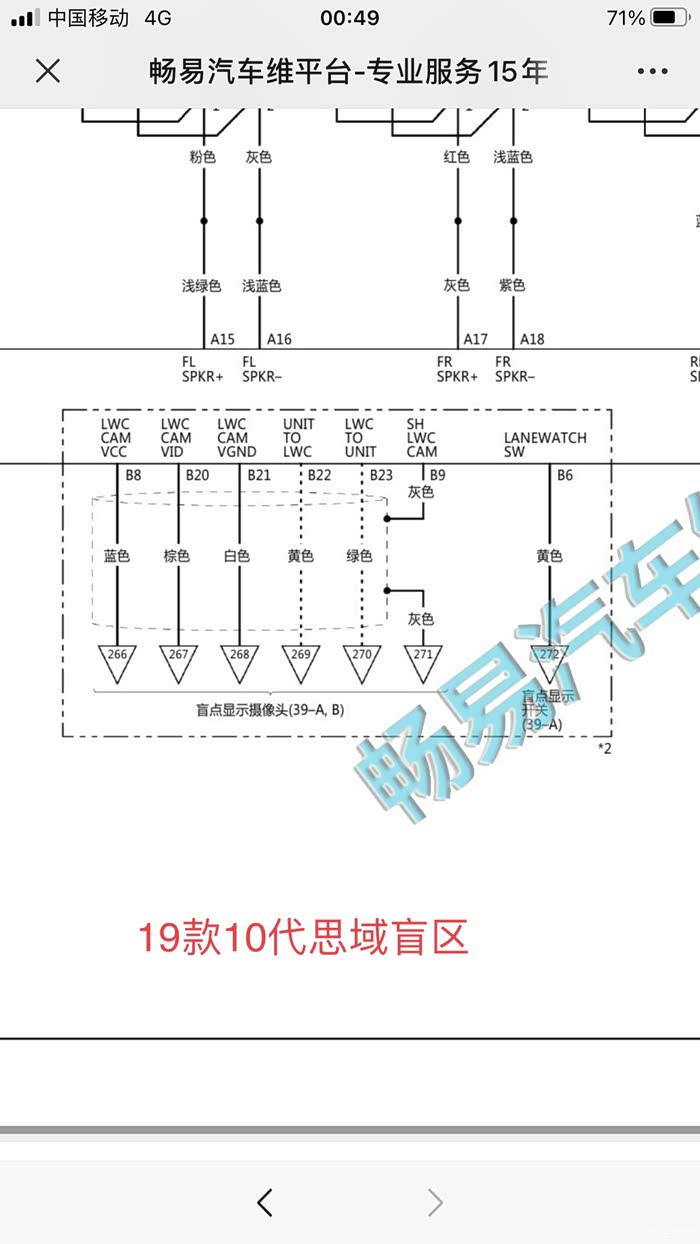

<div layer1="text-s"></div><div class="tz-paragraph">四代飞度改15款奥德赛和思域屏加装右前盲区改装教程，很多图片没拍，后面等我拍完图后把细节教程完善<br />用到的配件清单：下面是思域屏的针脚定义图<br />1.思域屏<br />2.盲区拨杆<br />3.本田原装盲区摄像头（改右后盲区）<br />4.&nbsp;本田原装盲区摄像头不带镜头+大广角360摄像头（改右前盲区）效果很不错可以看到右前和车右侧下面都能看到，因为360摄像头的广角很大.<br />5.自制线束（按照定义图制作，线的长短自己走线合适即可）<br />6.</div><div layer1="text-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g25/M01/33/E8/userphotos/2022/08/18/11/500_ChwFj2L9tqiAMnMVAAFtz5W69HE228.jpg" style="height:525;width:700"  /><div layer2="desc-s"></div><div class="description">改好的思域屏</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g25/M05/33/E8/userphotos/2022/08/18/11/500_ChwFj2L9tqqAZdaIAAV6tIseA1g373.jpg" style="height:525;width:700"  /><div layer2="desc-s"></div><div class="description">首先要改装好的思域屏</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g25/M03/82/84/userphotos/2022/08/18/11/500_ChtliGL9tq2ATF-dAAYhJxY-UwA868.jpg" style="height:1514;width:700"  /><div layer2="desc-s"></div><div class="description">思域屏尾部B插头用到的端子B6&nbsp;B8&nbsp;B9&nbsp;B20&nbsp;B21&nbsp;B22&nbsp;B23。B6和B9走线到大灯拨杆带盲区的插头共12针，把端子插到大灯拨杆的3和4针上不分正负。</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g25/M01/82/86/userphotos/2022/08/18/11/500_ChtliGL9trCAUguGAAR8uUwCK0c816.jpg" style="height:933;width:700"  /><div layer2="desc-s"></div><div class="description">这是大灯拨杆的插头</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g25/M02/33/EC/userphotos/2022/08/18/11/500_ChwFj2L9trOASUXJAATe9pb87Kw731.jpg" style="height:1244;width:700"  /><div layer2="desc-s"></div><div class="description">这是主机到右盲区的线路图</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="text-s"></div><div class="tz-paragraph">后面完善细节教程.</div><div layer1="text-e"></div><br />

四代飞度改思域屏原装右盲区
