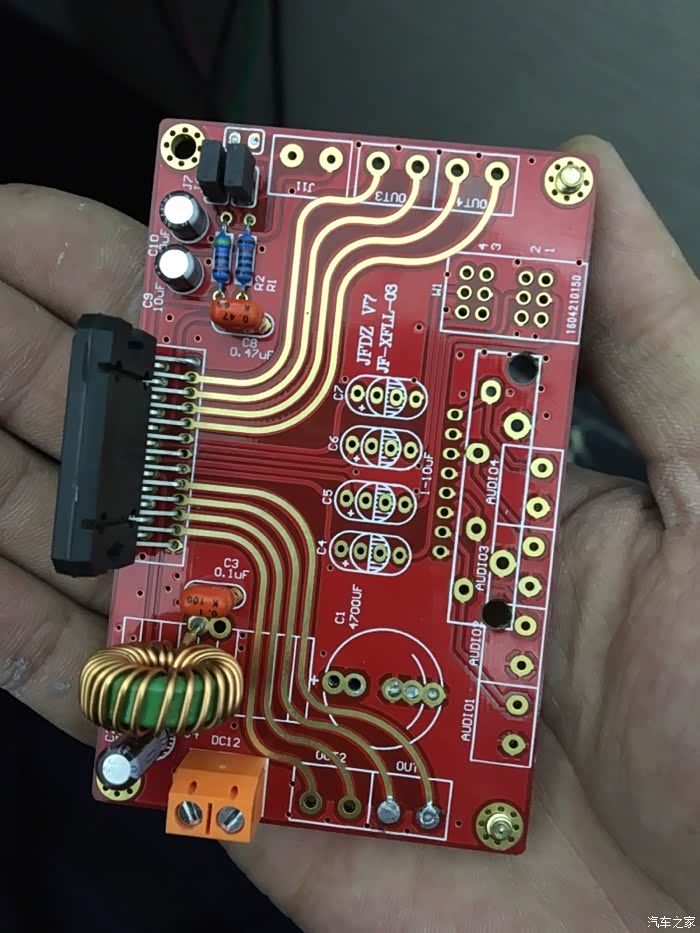

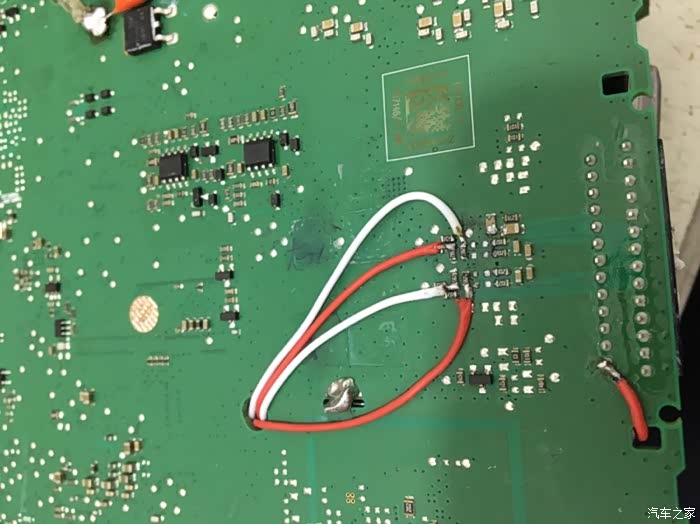

<div layer1="text-s"></div><div class="tz-paragraph">德赛西威MIB&nbsp;6.5&nbsp;机头用的TDA75610lv，B类4&#215;41W，TDA7850&nbsp;AB类mos管功放块4&#215;50W</div><div layer1="text-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g9/M11/20/26/userphotos/2017/07/27/09/500_wKgH31l5PQ2Ae1xWAAKg1iE0npM535.jpg" style="width:0.000000px;height:0.000000px"/><div layer2="desc-s"></div><div class="description">散件组装完成后的</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g13/M01/1A/8A/userphotos/2017/07/27/09/500_wKjByll5PQ6AYE6ZAAGjlPEqn7E129.jpg" style="width:0.000000px;height:0.000000px"/><div layer2="desc-s"></div><div class="description">四个耦合电容以拆下</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g21/M12/F7/3C/userphotos/2017/07/27/13/500_wKgFWll5fJ-ACzCnAAFXOLXB0RE938.jpg" style="width:0.000000px;height:0.000000px"/><div layer2="desc-s"></div><div class="description">四路音频引出来，原功放块的音频输入焊点接地</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g9/M11/18/9D/userphotos/2017/07/27/09/500_wKgH0Fl5PQ6AEUrdAAF1fzVaPrk528.jpg" style="width:0.000000px;height:0.000000px"/><div layer2="desc-s"></div><div class="description">固定模块，开始接线</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g21/M0F/F7/3C/userphotos/2017/07/27/13/500_wKgFWll5fKCAQbq2AAIbvv7cMCY232.jpg" style="width:0.000000px;height:0.000000px"/><div layer2="desc-s"></div><div class="description">网上的引脚图，5脚接原功放块2脚待机功能</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-picture"><img src="http://club2.autoimg.cn/album/g9/M11/12/E3/userphotos/2017/07/27/09/500_wKjBzll5PQ-AZUTzAAGCvqWDo1o098.jpg" style="width:0.000000px;height:0.000000px"/></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-picture"><img src="http://club2.autoimg.cn/album/g13/M12/16/3C/userphotos/2017/07/27/09/500_wKgH1Fl5PRCAPhVIAAF1BHf6-xE580.jpg" style="width:0.000000px;height:0.000000px"/></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-picture"><img src="http://club2.autoimg.cn/album/g6/M01/1D/84/userphotos/2017/07/27/13/500_wKjB0Vl5fKGATTgiAAEH-5YlGTE578.jpg" style="width:0.000000px;height:0.000000px"/></div><div layer1="img-e"></div><br /><div layer1="text-s"></div><div class="tz-paragraph">7850的5脚待机接75610的2脚，未开机0.55v，开机7.88v，接近于acc电压。<br />7850的23脚静音直接接ACC，低电平静音。<br />原机头有检测后喇叭功能，现在这样接法只是左右调节没有前后左右调节，解决办法有两个，第一增加四个耦合电容接原功放块，然后在加四个扬声器，第二是加8欧姆大功率电阻当假负载。<br />说说7850音效，不管是听流行歌曲还是DJ歌曲&nbsp;声音非常棒，我车前门是原厂喇叭，后门银笛同轴，前声场高音漫步者，装车试机低频弹性力度听着跟舒服，未完待续。。。。</div><div layer1="text-e"></div><br />

德赛mib6.5改TDA7850模块
