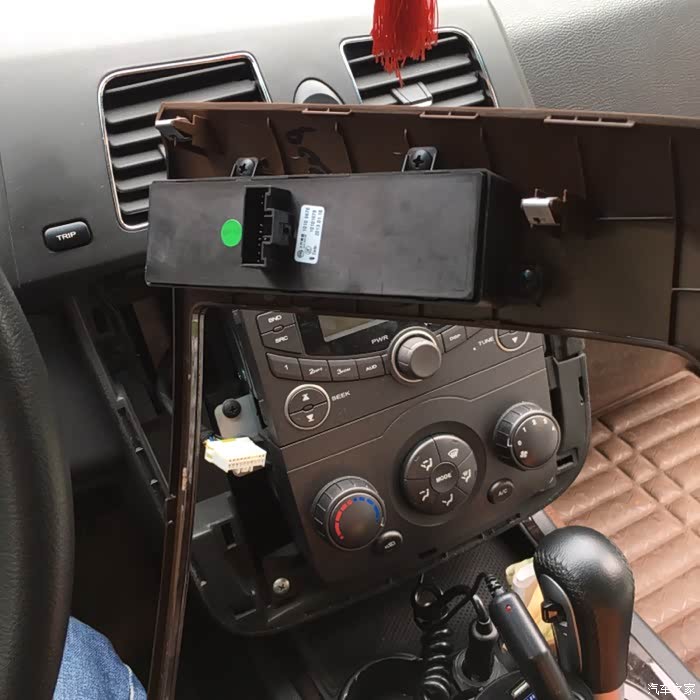

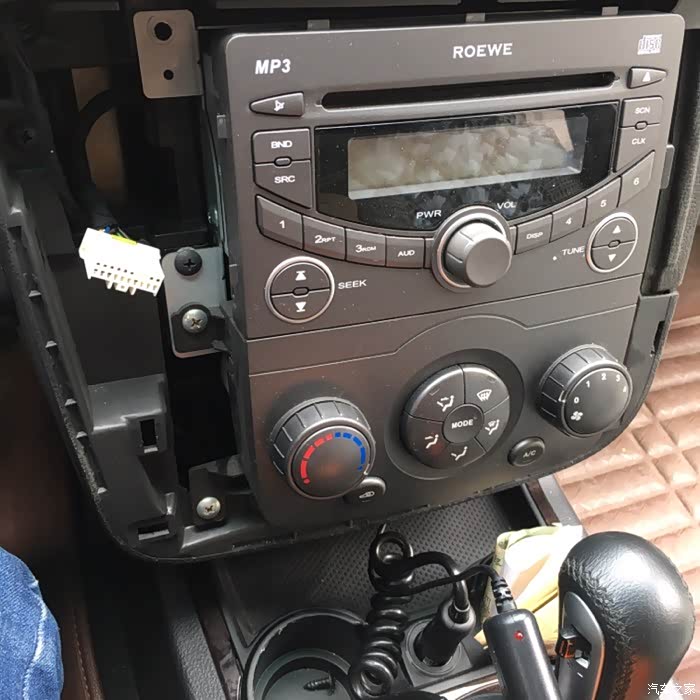

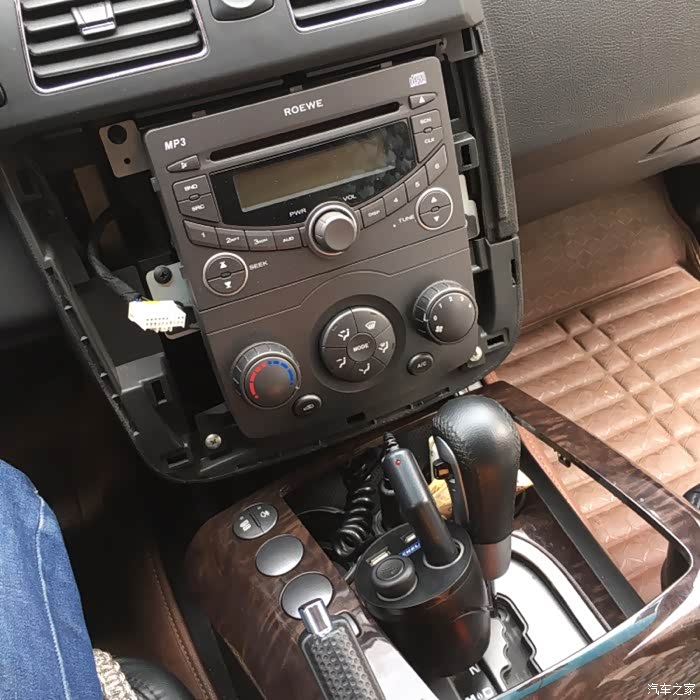

<div layer1="text-s"></div><div class="tz-paragraph">DIY安装大屏</div><div layer1="text-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g24/M01/7A/3F/userphotos/2018/03/17/22/500_wKgHH1qtKuGAAqAYAAGNTzUqfmM712.jpg" style="height:300;width:300"  /><div layer2="desc-s"></div><div class="description">先将中控多媒体面板用塑料扳手抠下来</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g24/M02/7A/3F/userphotos/2018/03/17/22/500_wKgHH1qtKuKAXChbAAHBGkMM2xU039.jpg" style="height:300;width:300"  /><div layer2="desc-s"></div><div class="description">漏出多媒体和空调，注意面板上的电源线拔掉</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g25/M06/7A/69/userphotos/2018/03/17/22/500_wKgHIFqtKuOAOrtBAAIALhyvki0174.jpg" style="height:300;width:300"  /><div layer2="desc-s"></div><div class="description">就是左边这个白色的电源接头</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g24/M06/7E/35/userphotos/2018/03/17/22/500_wKgHIVqtKuSANuu9AAF-PBZg8iY435.jpg" style="height:300;width:300"  /><div layer2="desc-s"></div><div class="description">原装多媒体，把螺丝卸下来</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g25/M0A/7A/69/userphotos/2018/03/17/22/500_wKgHIFqtKuWAC7V7AAEubFWNSbQ996.jpg" style="height:300;width:300"  /><div layer2="desc-s"></div><div class="description">多媒体上这根是收音机的天线，要插到新导航上</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g25/M0B/7D/74/userphotos/2018/03/17/22/500_wKgHIlqtKuaAcczwAAEViUEA3cI381.jpg" style="height:300;width:300"  /><div layer2="desc-s"></div><div class="description">这根是原装多媒体的u盘放歌的线，用电工胶带包上，不再需要了.记得要固定哦，免异响</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g24/M01/7E/36/userphotos/2018/03/17/22/500_wKgHIVqtKuaAYuh3AAERMQlvhs8247.jpg" style="height:534;width:300"  /><div layer2="desc-s"></div><div class="description">倒车后视的接线图</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g24/M02/7E/37/userphotos/2018/03/17/22/500_wKgHIVqtKu-ATGLZAAGDYR31hvA179.jpg" style="height:300;width:300"  /><div layer2="desc-s"></div><div class="description">倒车后视连接的话，需要拆后备箱板.下面两个是螺丝，其他都是塑料的卡子</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g25/M01/7F/01/userphotos/2018/03/17/22/500_ChcCr1qtKvCAeLq4AAGvWt8iP2g132.jpg" style="height:300;width:300"  /><div layer2="desc-s"></div><div class="description">后备箱板接近高位刹车灯的板子也要拆，方便布线</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g24/M02/7A/41/userphotos/2018/03/17/22/500_wKgHH1qtKvGAXywEAAEaHsTc0t8075.jpg" style="height:300;width:300"  /><div layer2="desc-s"></div><div class="description">后备箱拆开后，漏出隔音膜</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g24/M08/7E/38/userphotos/2018/03/17/22/500_wKgHIVqtKvKATPmiAAHkBGIheVM373.jpg" style="height:300;width:300"  /><div layer2="desc-s"></div><div class="description">取倒车灯的电</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g25/M09/7A/6A/userphotos/2018/03/17/22/500_wKgHIFqtKvOAUOViAAHRAQqZiCQ503.jpg" style="height:300;width:300"  /><div layer2="desc-s"></div><div class="description">从左上角原车过线那个胶孔走线</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g24/M08/7F/77/userphotos/2018/03/17/22/500_ChcCL1qtKvWAMlYVAAFUpO2nQ6Q210.jpg" style="height:300;width:300"  /><div layer2="desc-s"></div><div class="description">新导航连线.注意gps别忘了接天线</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g24/M0B/7F/78/userphotos/2018/03/17/22/500_ChcCL1qtKveAM3XbAAJmsMcsiFc415.jpg" style="height:300;width:300"  /><div layer2="desc-s"></div><div class="description">割胶布线</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g24/M09/7E/39/userphotos/2018/03/17/22/500_wKgHIVqtKviAVWACAAFQGHMLSuw415.jpg" style="height:300;width:300"  /><div layer2="desc-s"></div><div class="description">装上效果</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g24/M03/7A/43/userphotos/2018/03/17/22/500_wKgHH1qtKvmAG4Q7AAE1B2SlVZI697.jpg" style="height:300;width:300"  /><div layer2="desc-s"></div><div class="description">倒车效果</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br />

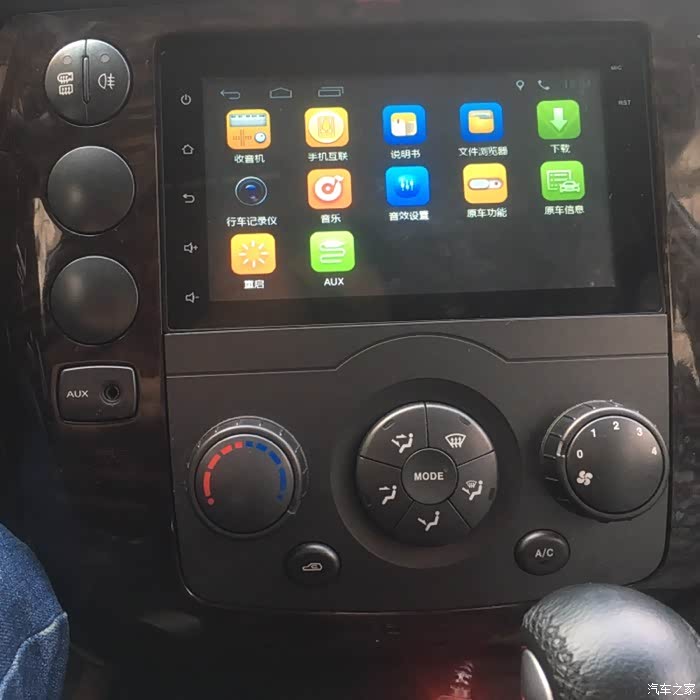

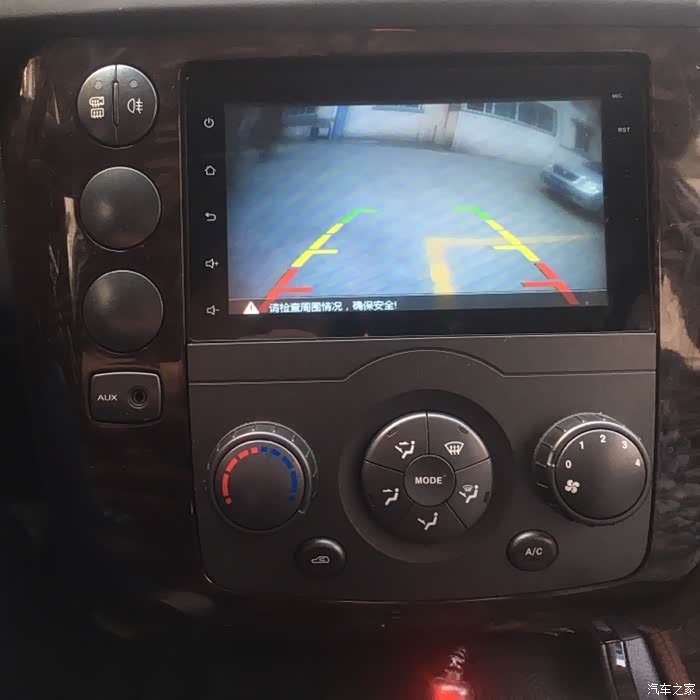

荣威w5胜域DIY加装导航大屏倒车后视
