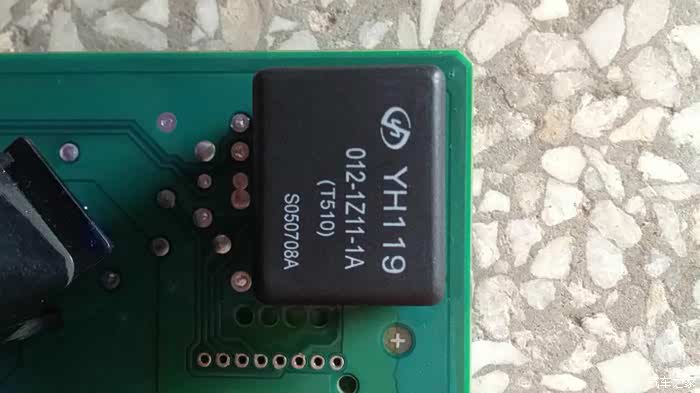

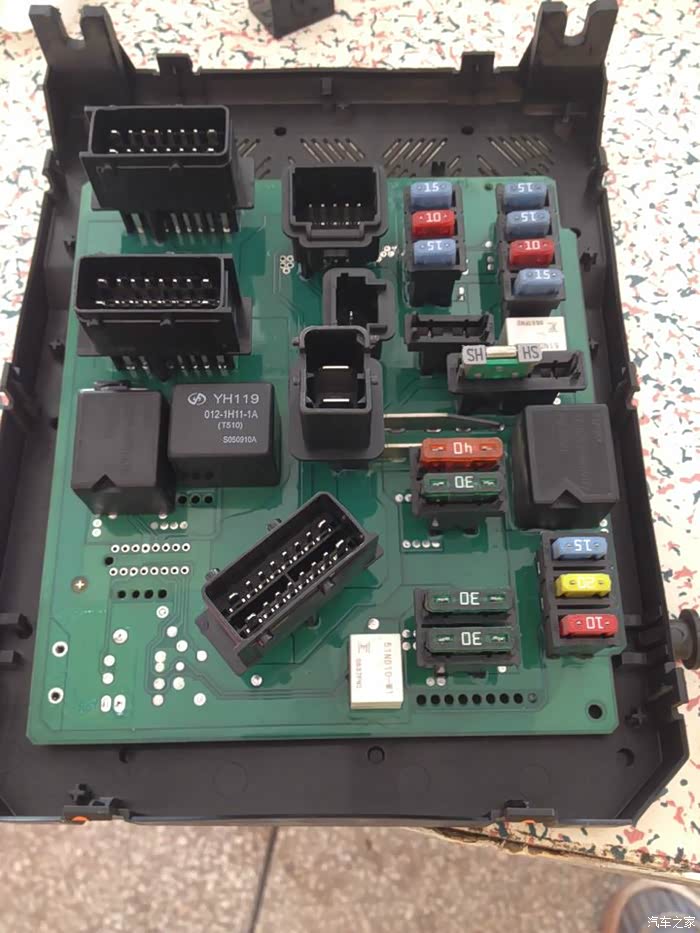

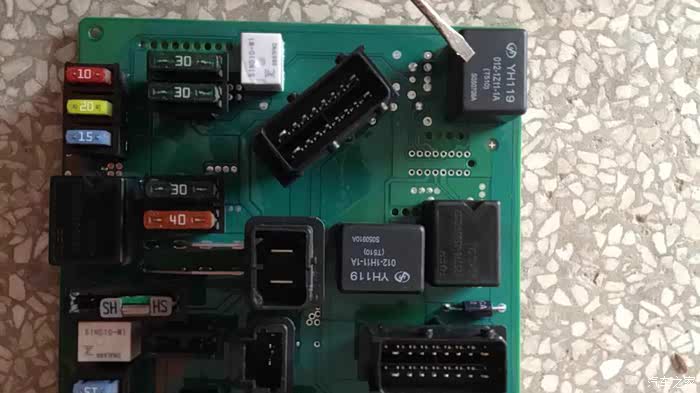

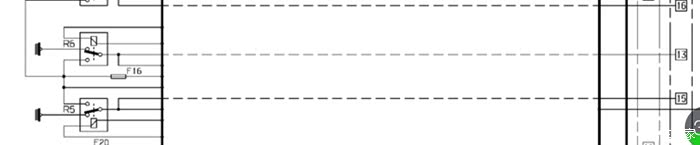

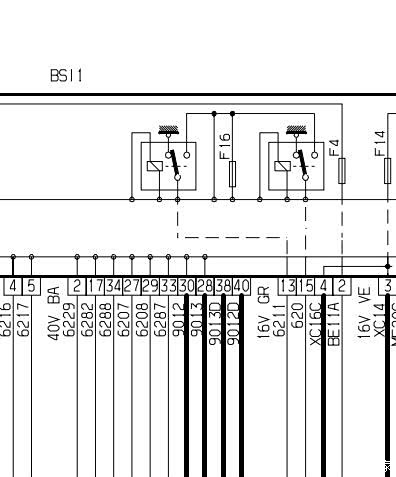

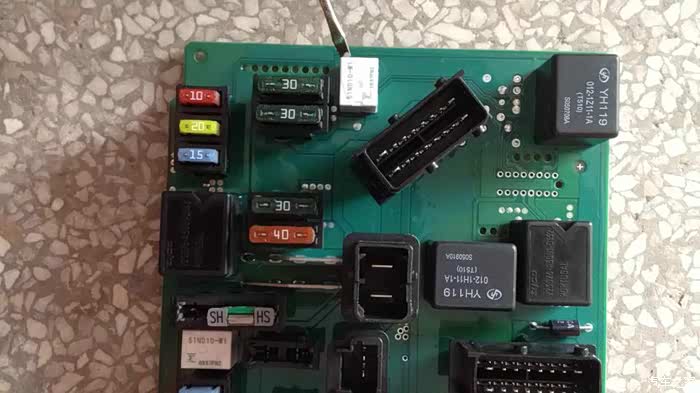

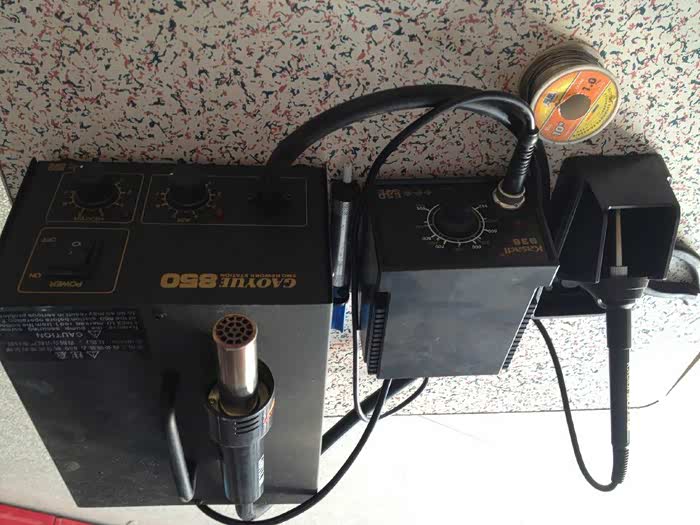

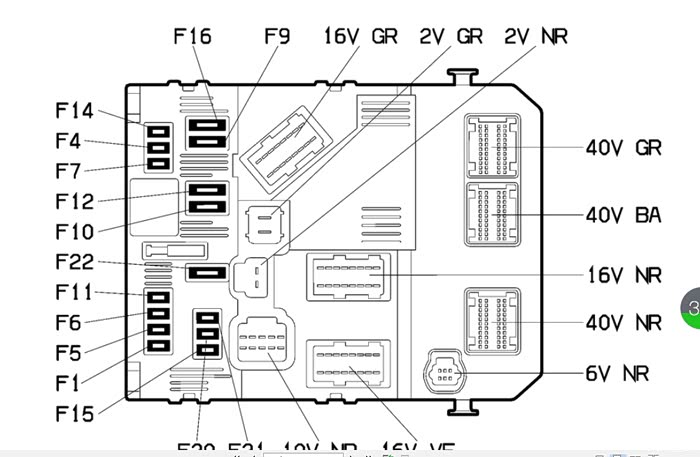

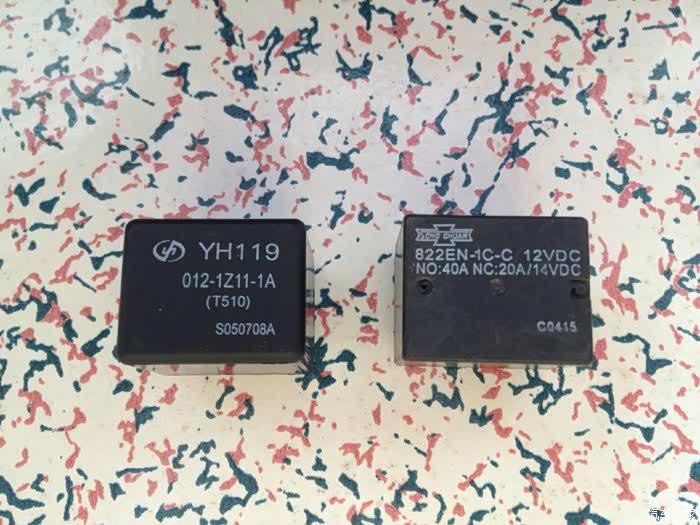

<div layer1="text-s"></div><div class="tz-paragraph">前几天小6的中控锁失灵了~能锁不能开~研究过~确定是中控主机的问题~但不知道是那个件出了问题~有幸群友拖拉机指点~找出了问题所在~本来已经打算某宝整块买的~现在就换一个继电器就解决问题了~再一次感谢@开拖拉机去摄影！！！现在上图给大家分享一下~以后遇到这问题的6友可以参考一下！！！</div><div layer1="text-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g17/M0A/D3/DE/userphotos/2016/07/21/18/500_wKgH51eQoUqACn3sAAKeYpszcx0377.jpg" style="height:933px;width:700px"  /><div layer2="desc-s"></div><div class="description">左下角~就是已经吹掉的继电器的位置</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g16/M04/D8/5B/userphotos/2016/07/21/18/500_wKgH11eQoYqATNeaAAEhtbOIaLw331.jpg" style="height:960px;width:540px"  /><div layer2="desc-s"></div><div class="description">螺丝刀所点那个就是15号线控制开锁所连的继电器</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g5/M15/D8/37/userphotos/2016/07/21/18/500_wKgHzFeQodWATk2nAAEQPMfLTQ8141.jpg" style="height:960px;width:540px"  /><div layer2="desc-s"></div><div class="description">继电器型号</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g8/M0F/DB/30/userphotos/2016/07/21/18/500_wKgH3leQofKAB3kcAAFsu3wE2M8549.jpg" style="height:360px;width:700px"  /><div layer2="desc-s"></div><div class="description">谢谢群友拖拉机的电路图！！！</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g12/M0E/D9/61/userphotos/2016/07/21/18/500_wKjBy1eQojaALF-oAADjX8hC1z4693.jpg" style="height:477px;width:396px"  /><div layer2="desc-s"></div><div class="description">群友提示的电路图~13号线是锁门的线~15号是开门的线~</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g6/M05/D7/A7/userphotos/2016/07/21/18/500_wKgHzVeQooiAGf9WAAHgO__dqfU466.jpg" style="height:458px;width:700px"  /><div layer2="desc-s"></div><div class="description">整个线板平面图~16V&nbsp;GR&nbsp;这个就是中控锁的线插</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g15/M06/D9/2E/userphotos/2016/07/21/18/500_wKjByFeQouWAM12VAAE-mZOVmnA362.jpg" style="height:960px;width:540px"  /><div layer2="desc-s"></div><div class="description">螺丝刀点的那个白色的就是13号线所连的锁门线的继电器~</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g20/M12/B9/21/userphotos/2016/07/21/18/500_wKgFWVeQo3eAIZz7AAOzWuF30dQ148.jpg" style="height:933px;width:700px"  /><div layer2="desc-s"></div><div class="description">左下角~那个就是坏掉的开锁继电器~</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g4/M01/D7/B7/userphotos/2016/07/21/18/500_wKgHy1eQpDWAL2qPAAG6C1wOOes478.jpg" style="height:525px;width:700px"  /><div layer2="desc-s"></div><div class="description">这就是吹掉和焊好继电器用的工具~</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g9/M00/DB/DD/userphotos/2016/07/21/18/500_wKgH31eQpHCAIK8CAAHe-oWNkU4637.jpg" style="height:933px;width:700px"  /><div layer2="desc-s"></div><div class="description">下面那个就是坏的~上面的是某宝买的~继电器4块钱~邮费8元~</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g15/M13/D9/A3/userphotos/2016/07/21/18/500_wKgH1leQpLuAeA6UAAB5JtcrXtY626.jpg" style="height:146px;width:700px"  /><div layer2="desc-s"></div><div class="description">谢谢群友拖拉机提供的图~</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br />

206中控锁失灵问题解决~感谢群友拖拉机
