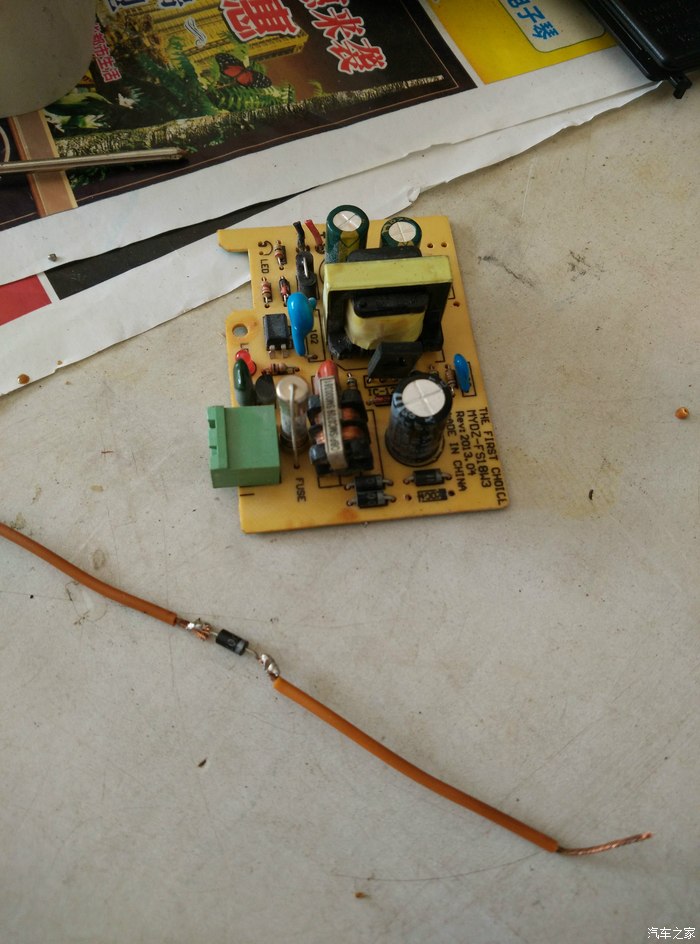

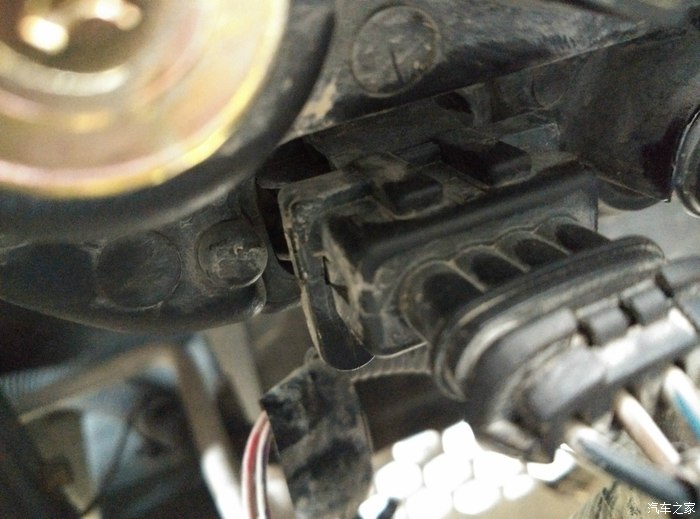

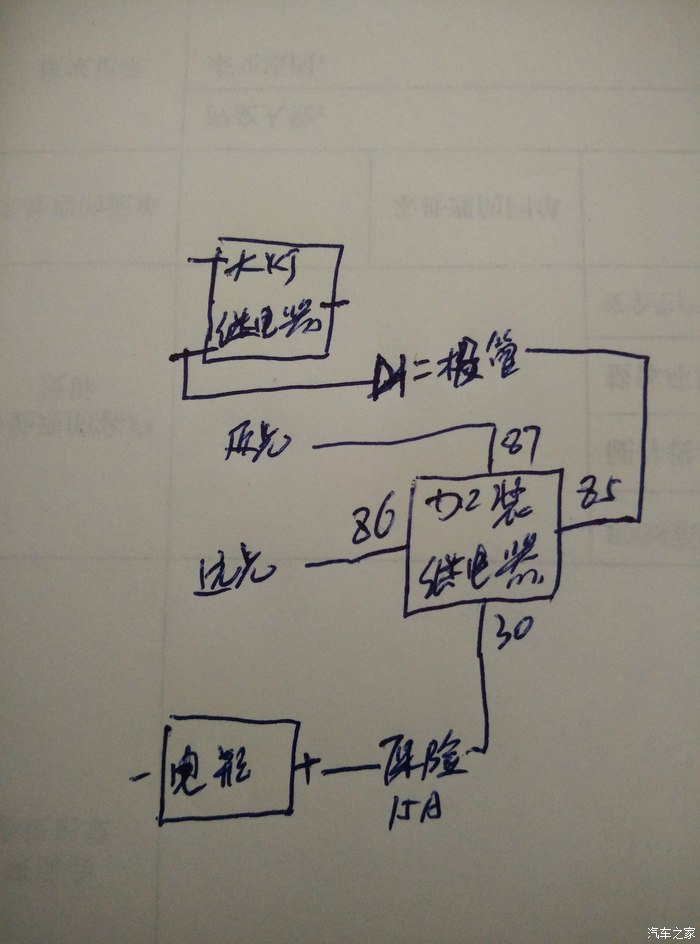

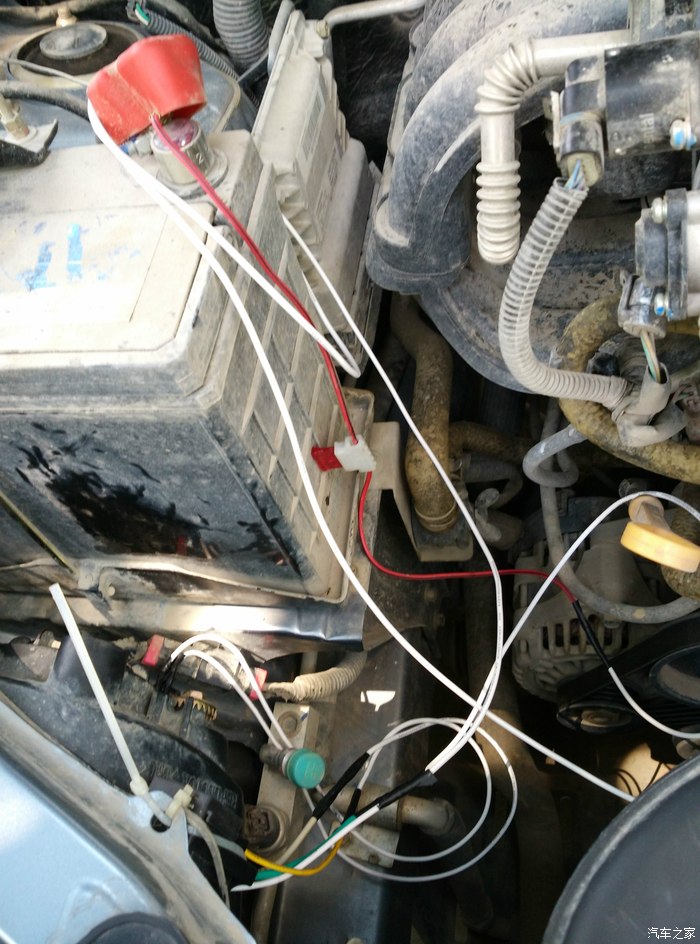

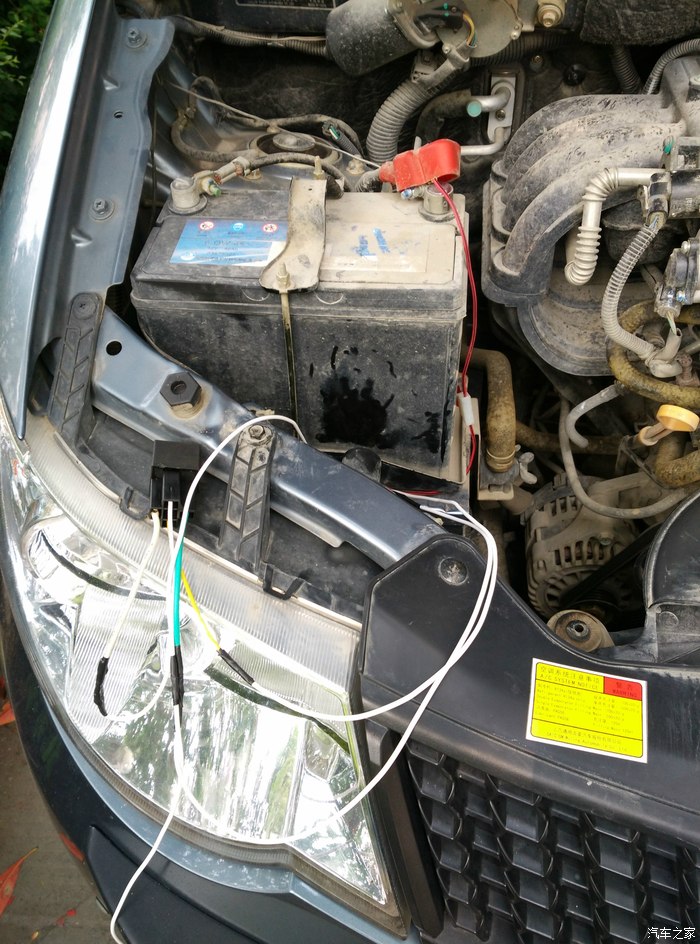

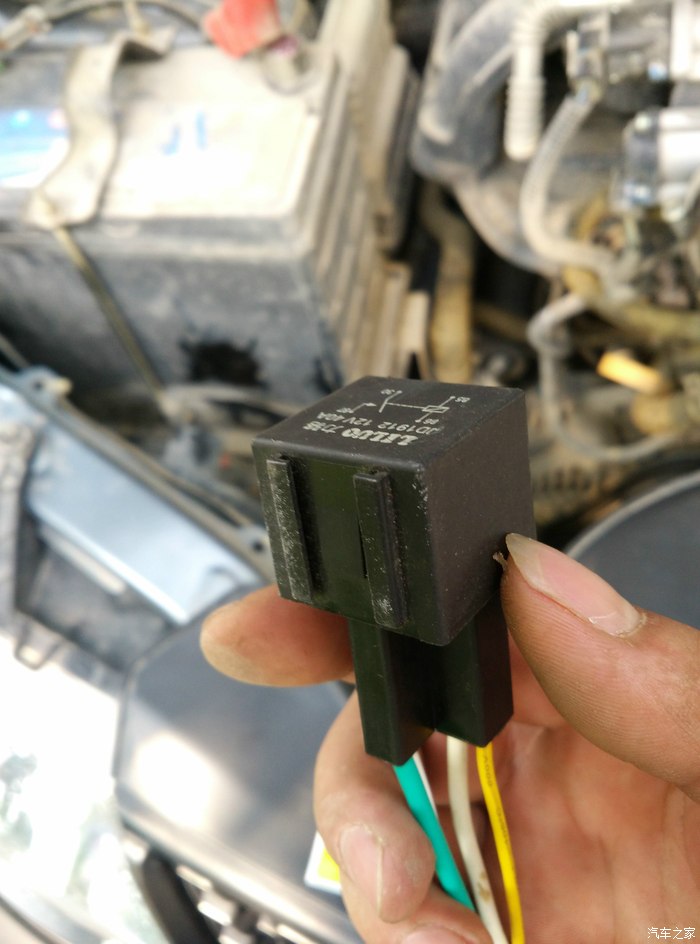

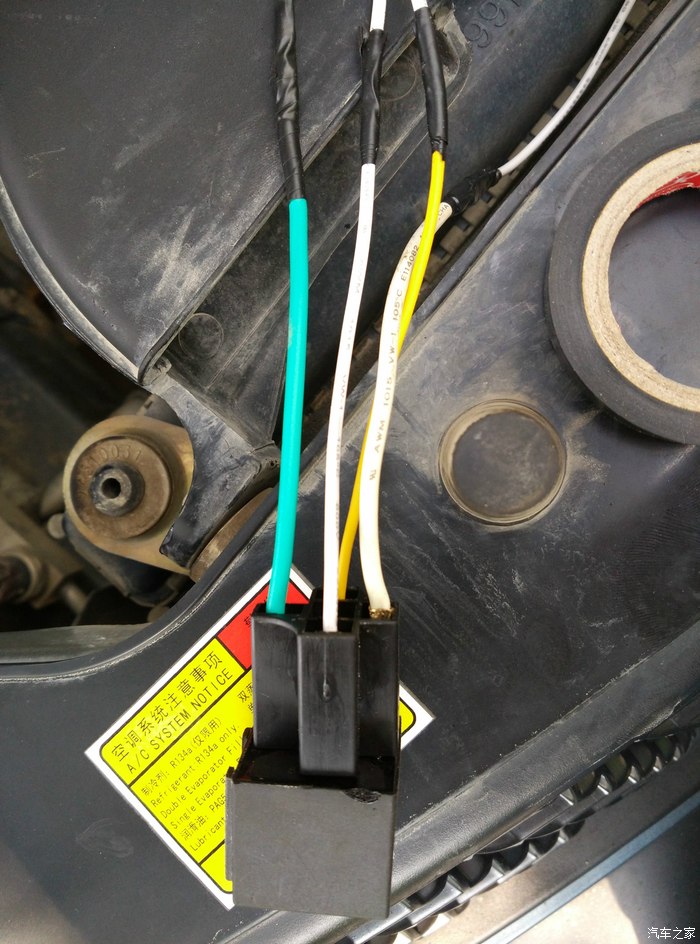

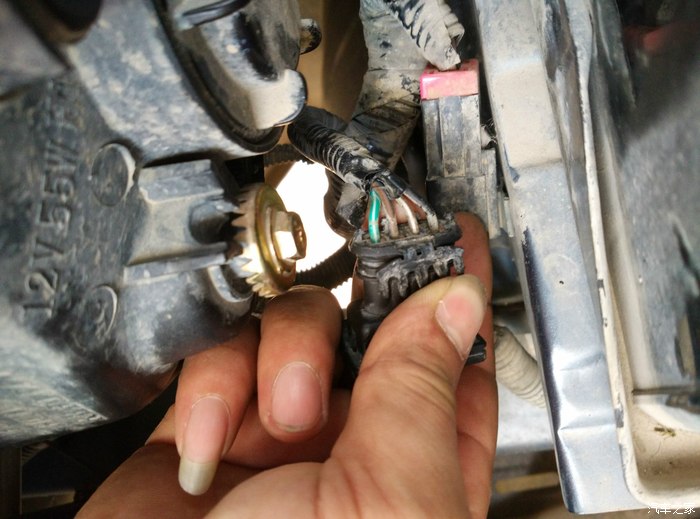

这几天没事在论坛转悠了下，看见几个宏友自己动手改的远近灯同时亮帖子，新手的我也活动活动<IMG style="WIDTH: 700px; HEIGHT: 518px" src="http://club0.autoimg.cn/album/userphotos/2015/04/20/13/500_59437100-7153-m9h7-l7ft-n204afg1c2tg.jpg"> 这图是论坛的宏友发的接下来我就是按照这个原理改（白天打超车灯近光不会亮）<IMG style="WIDTH: 700px; HEIGHT: 944px" src="http://club0.autoimg.cn/album/userphotos/2015/04/20/14/500_01405770-8467-kt22-cg1h-n203and2e995.jpg"> 自己琢磨绘画了一下简单图<IMG style="WIDTH: 700px; HEIGHT: 944px" src="http://club0.autoimg.cn/album/userphotos/2015/04/20/14/500_03299390-5970-kl88-2e4l-n202ahhdhlne.jpg"> <IMG style="WIDTH: 700px; HEIGHT: 944px" src="http://club1.autoimg.cn/album/userphotos/2015/04/20/14/500_03236950-7356-nec7-5dmt-n204atg4d8c8.jpg"> <IMG style="WIDTH: 700px; HEIGHT: 944px" src="http://club1.autoimg.cn/album/userphotos/2015/04/20/14/500_03301750-8538-bkf1-fg52-n203a225k68g.jpg"> 材料准备，拆了一个二极管，又在隔壁洗车店找了个继电器（二极管安装的时候不小心折断又拆了一个）<IMG style="WIDTH: 700px; HEIGHT: 519px" src="http://club1.autoimg.cn/album/userphotos/2015/04/20/14/500_20404020-1598-ntt6-k9g3-n203a9dll972.jpg"> <IMG style="WIDTH: 700px; HEIGHT: 519px" src="http://club0.autoimg.cn/album/userphotos/2015/04/20/14/500_20417820-1602-7h75-87ff-n203ace1m1kb.jpg"> 拆开大灯差头绿白色是远灯接86上面，棕白色的是近灯接87上面，这里我是用无损安装的自由发挥吧<IMG style="WIDTH: 700px; HEIGHT: 944px" src="http://club1.autoimg.cn/album/userphotos/2015/04/20/14/500_24052040-8620-22mc-485d-n204a9l8l271.jpg"> <IMG style="WIDTH: 700px; HEIGHT: 944px" src="http://club1.autoimg.cn/album/userphotos/2015/04/20/14/500_20498800-6961-6bfc-6ht3-n202af2t6454.jpg"> <IMG style="WIDTH: 700px; HEIGHT: 519px" src="http://club0.autoimg.cn/album/userphotos/2015/04/20/14/500_20430180-6956-f879-2g7e-n202a7mtd2cc.jpg"> <IMG style="WIDTH: 700px; HEIGHT: 519px" src="http://club1.autoimg.cn/album/userphotos/2015/04/20/14/500_20517860-1608-75cc-cb9m-n203a633k7h3.jpg"> 30接在电瓶的正极我这里是接有保险的（开始使用是10A后来怕挨不起又换了15A的保险）85加个二极管接在大灯继电器上，依次按图接好后试了试，很开心一切顺利<IMG style="WIDTH: 700px; HEIGHT: 944px" src="http://club1.autoimg.cn/album/userphotos/2015/04/20/14/500_21118750-1626-458g-b62b-n203amcm567d.jpg"> <IMG style="WIDTH: 700px; HEIGHT: 519px" src="http://club1.autoimg.cn/album/userphotos/2015/04/20/14/500_21114040-6979-mt2n-9l69-n202a3e72n69.jpg"> <IMG style="WIDTH: 700px; HEIGHT: 433px" src="http://club0.autoimg.cn/album/userphotos/2015/04/20/14/500_21095190-6977-hm53-7hn4-n202a15f52d3.jpg"> 出去溜溜半小时的开灯效果线路符合暂时没发现&nbsp;刚好也收到了汽车之家家油券购买的《汽车之家车标》回家洗洗车贴上<IMG style="WIDTH: 700px; HEIGHT: 944px" src="http://club1.autoimg.cn/album/userphotos/2015/04/20/14/500_28222890-1918-hdm2-dn3b-n203a3n3tgfl.jpg"> <IMG style="WIDTH: 700px; HEIGHT: 519px" src="http://club1.autoimg.cn/album/userphotos/2015/04/20/14/500_28096970-7535-mfgh-39e4-n201al7n8nnd.jpg"> <IMG style="WIDTH: 700px; HEIGHT: 519px" src="http://club0.autoimg.cn/album/userphotos/2015/04/20/14/500_28125300-8866-nh9l-ge6l-n204ac8l79dd.jpg"> <IMG style="WIDTH: 700px; HEIGHT: 519px" src="http://club1.autoimg.cn/album/userphotos/2015/04/20/14/500_28214040-1917-7nc7-cn98-n203abdkkb48.jpg"> <IMG style="WIDTH: 700px; HEIGHT: 944px" src="http://club1.autoimg.cn/album/userphotos/2015/04/20/14/500_28366170-7557-4tl7-mg26-n201a336729d.jpg"> <IMG style="WIDTH: 700px; HEIGHT: 944px" src="http://club1.autoimg.cn/album/userphotos/2015/04/20/14/500_28354310-8883-cg3b-tt7d-n204alm97197.jpg">

10款宏光改远近灯同时亮论坛学习成果
