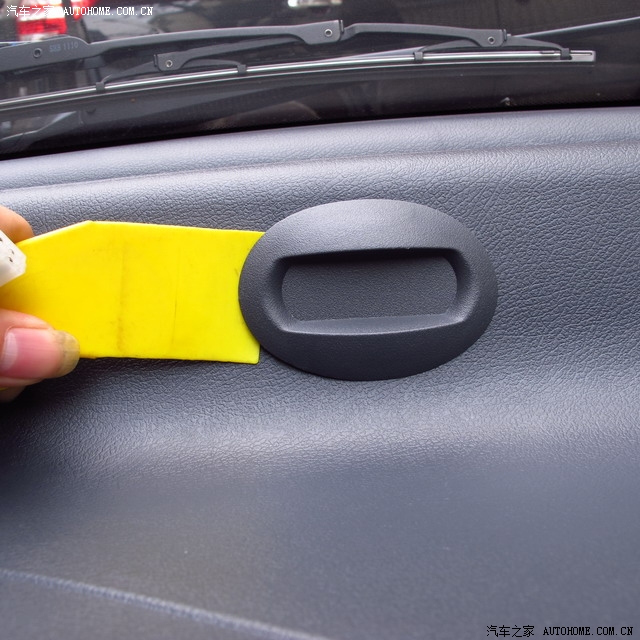

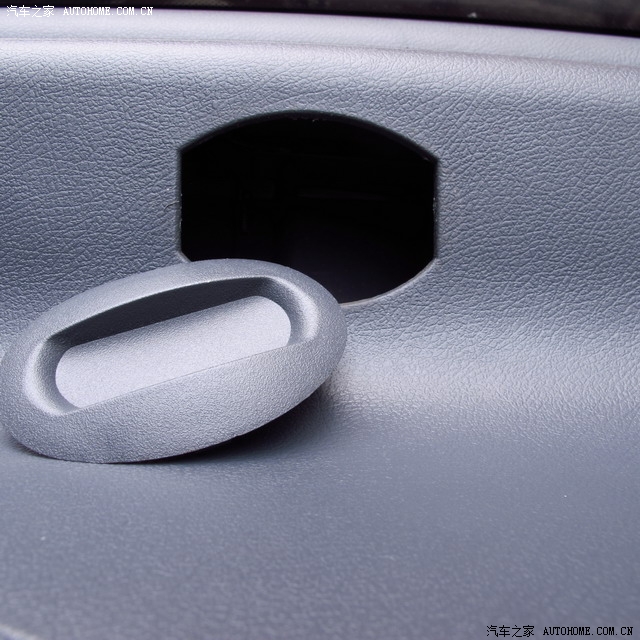

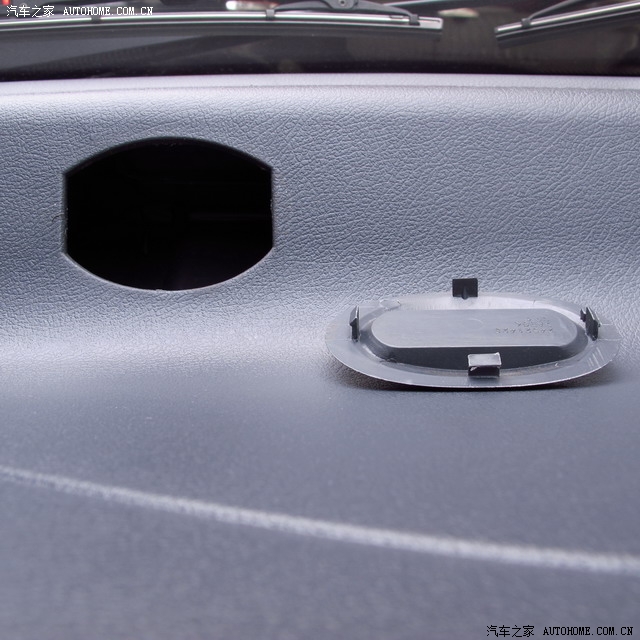

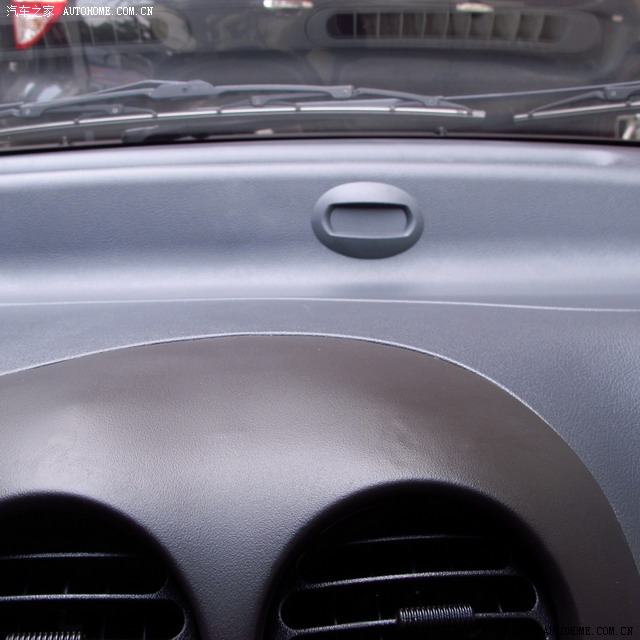

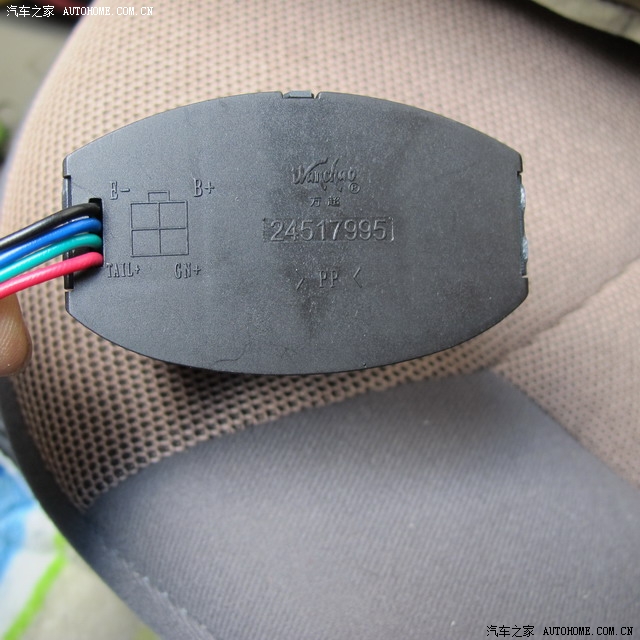

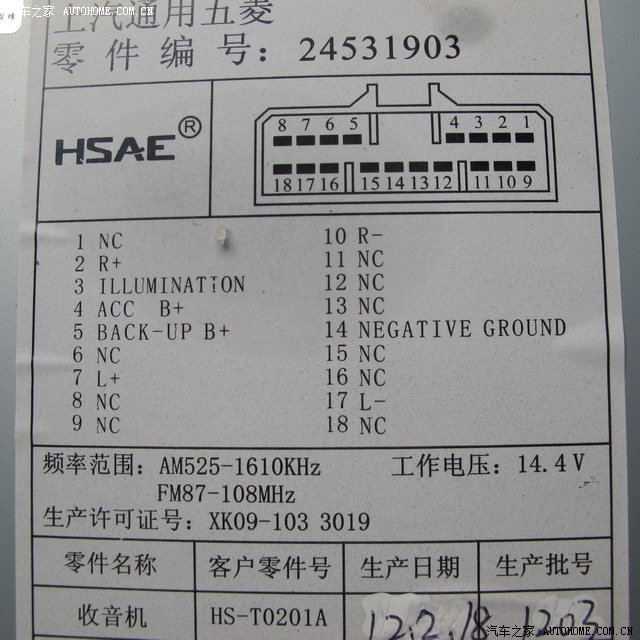

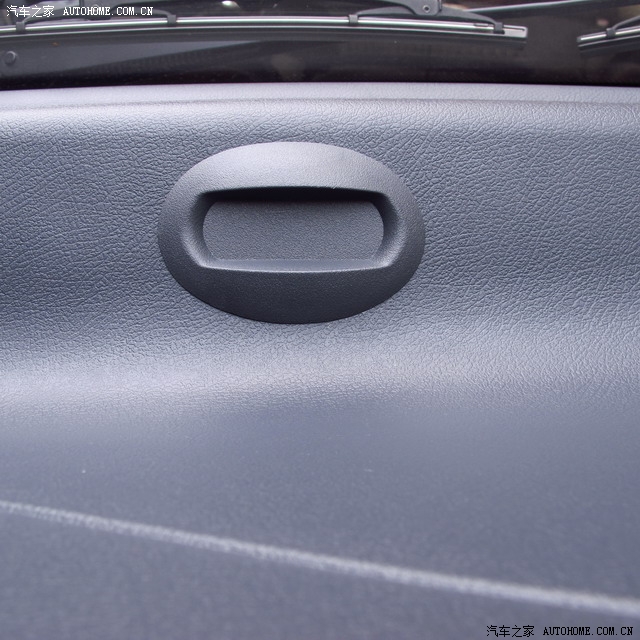

好久没发帖啦刚为车友加装了电子钟发一下过程为了省掉电子钟专门配的盖子<IMG class=spic src="http://x.autoimg.cn/club/Post/img/smiles/19.gif">今日乐驰质量今非昔比了仔细看一下风口上方凹凸不平做工很差和我们那批完全不能比了应广大车友要求补上详细接线说明&nbsp;&nbsp;<DIV><IMG name=lazypictz.picNotFind(this) src="http://www.autoimg.cn/album/userphotos/2012/9/25/500_a2aa_d1246010_d1246010.jpg?7033" src9="http://www.autoimg.cn/album/userphotos/2012/9/25/500_a2aa_d1246010_d1246010.jpg?7033" xsrc="http://www.autoimg.cn/album/userphotos/2012/9/25/500_a2aa_d1246010_d1246010.jpg?7033" xTop="25844" k="true" tz.picLoaded(this)></DIV> 电子钟反面标注 E-&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; 负极通常说的搭铁B+&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; 正极接常电GN&nbsp;+&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;正极接开钥匙有电TAIL+&nbsp;&nbsp; 这个是减光线，接仪表灯正极&nbsp;收音机接线图具体接线为<DIV><DIV sendId="cntaobao宜昌天天" msgId="{87048B35-659A-44F5-B637-3A174F519797}">E-&nbsp;&nbsp;&nbsp; 接14</DIV><DIV sendId="cntaobao宜昌天天" msgId="{70A5EC22-712F-4E2A-A436-F00F18AD5387}">B+&nbsp;&nbsp;&nbsp; 接5</DIV><DIV sendId="cntaobao宜昌天天" msgId="{9AB8B585-9835-4B39-8D23-B195AA484356}">GN+&nbsp;&nbsp;&nbsp;接4</DIV></DIV><DIV SendID="cntaobao宜昌天天"><DIV>TAIL+ 接3</DIV></DIV><DIV><IMG name=lazypictz.picNotFind(this) src="http://www.autoimg.cn/album/userphotos/2012/9/25/500_cb6e_5f06edae_5f06edae.jpg?6845" src9="http://www.autoimg.cn/album/userphotos/2012/9/25/500_cb6e_5f06edae_5f06edae.jpg?6845" xsrc="http://www.autoimg.cn/album/userphotos/2012/9/25/500_cb6e_5f06edae_5f06edae.jpg?6845" xTop="26902" k="true" tz.picLoaded(this)></DIV><IMG style="WIDTH: 640px; HEIGHT: 640px" src="http://www.autoimg.cn/album/userphotos/2012/9/25/500_14c4_78ab1fb7_78ab1fb7.jpg?876"><IMG style="WIDTH: 640px; HEIGHT: 640px" src="http://www.autoimg.cn/album/userphotos/2012/9/25/500_7680_c385429b_c385429b.jpg?4909">从侧面撬开盖子<IMG style="WIDTH: 640px; HEIGHT: 640px" src="http://www.autoimg.cn/album/userphotos/2012/9/25/500_b625_d839d027_d839d027.jpg?4388"> <IMG style="WIDTH: 640px; HEIGHT: 640px" src="http://www.autoimg.cn/album/userphotos/2012/9/25/500_69ec_f9550c2a_f9550c2a.jpg?1271"> <IMG style="WIDTH: 640px; HEIGHT: 640px" src="http://www.autoimg.cn/album/userphotos/2012/9/25/500_1e03_f97d5c45_f97d5c45.jpg?3785"> &nbsp;

乐驰加装原厂电子钟（已增加详细接线说明）
