奔驰EQS升级原厂HUD高级平视显示系统

下面HUD升级好的效果，我们来看下，非常清晰。

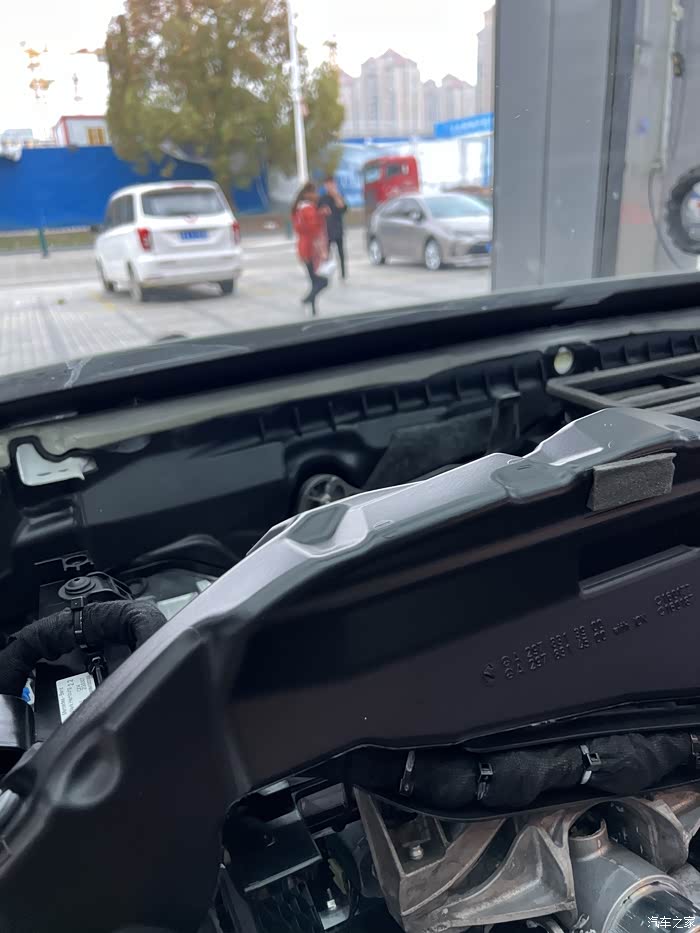

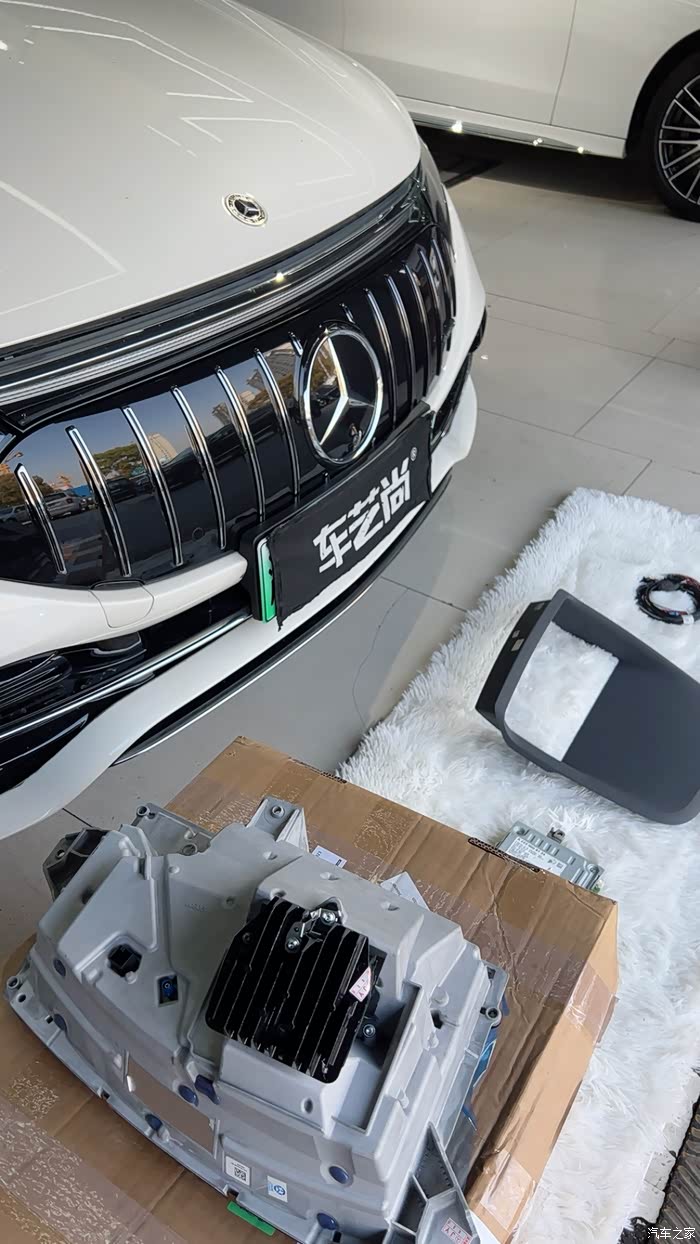

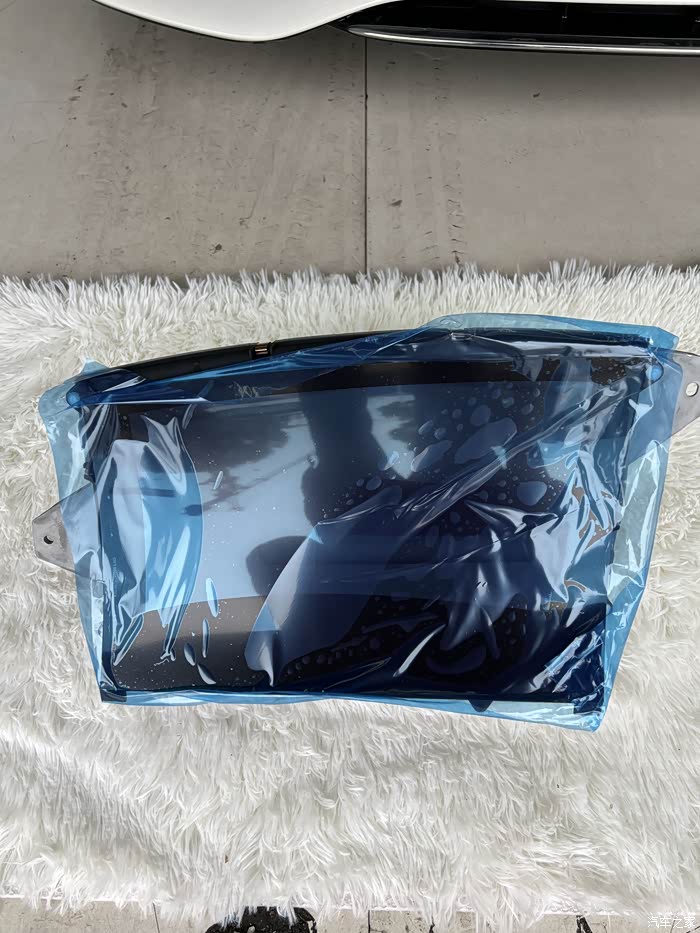

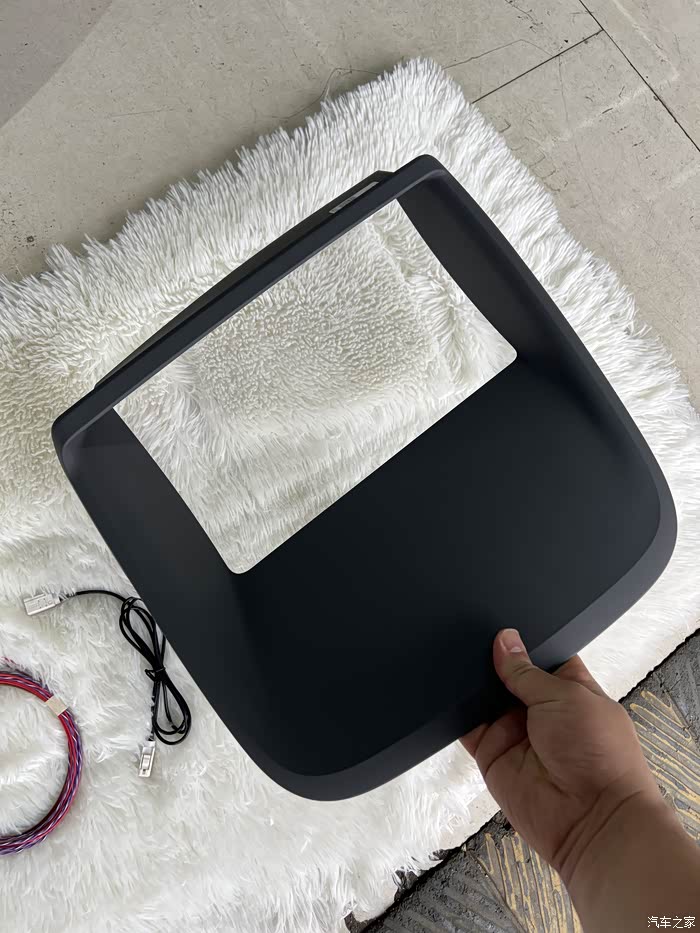

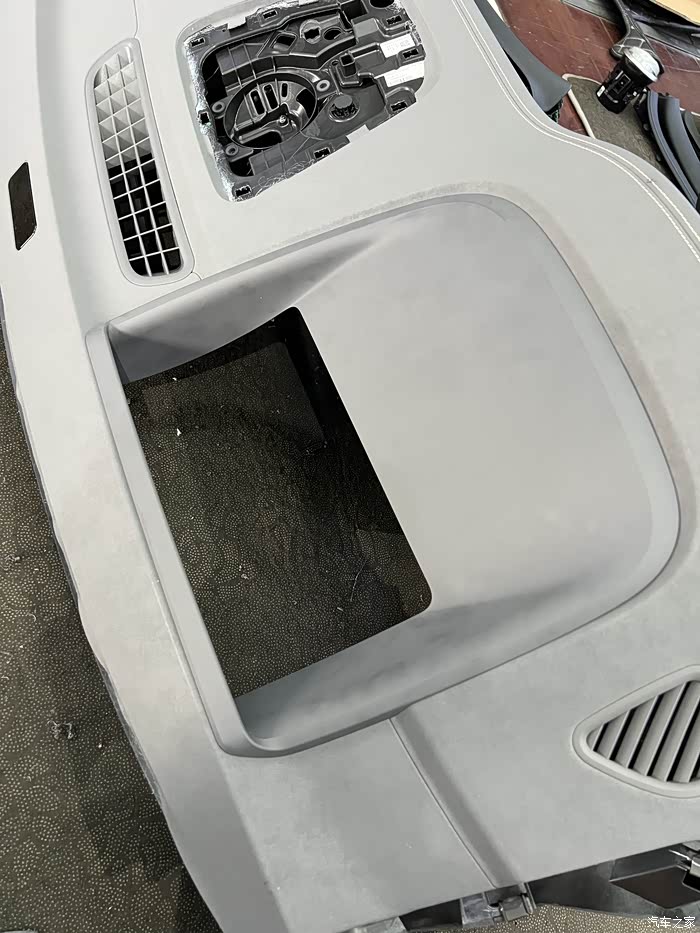

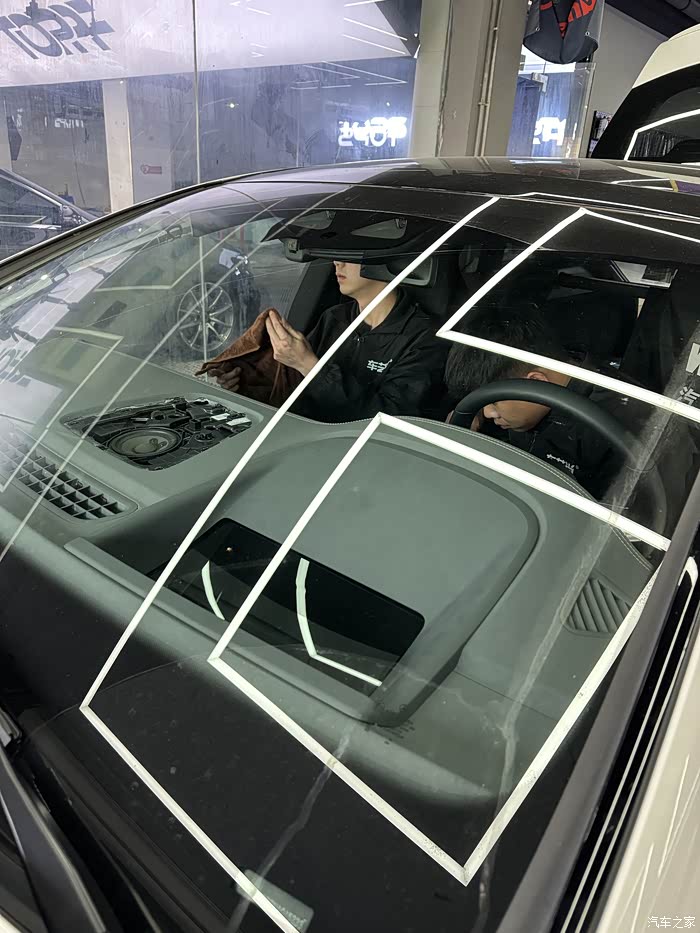

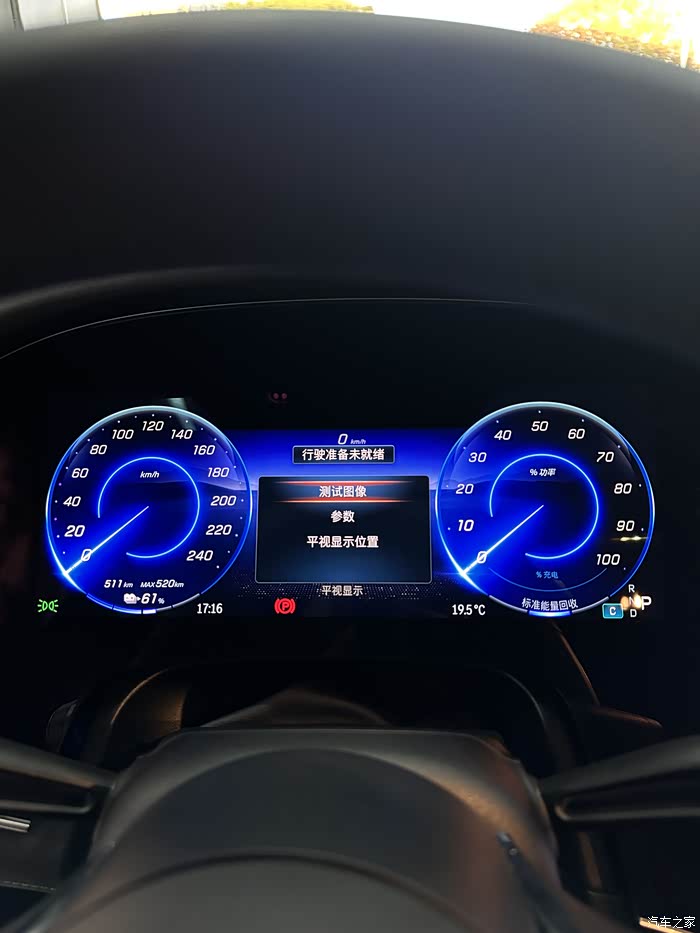

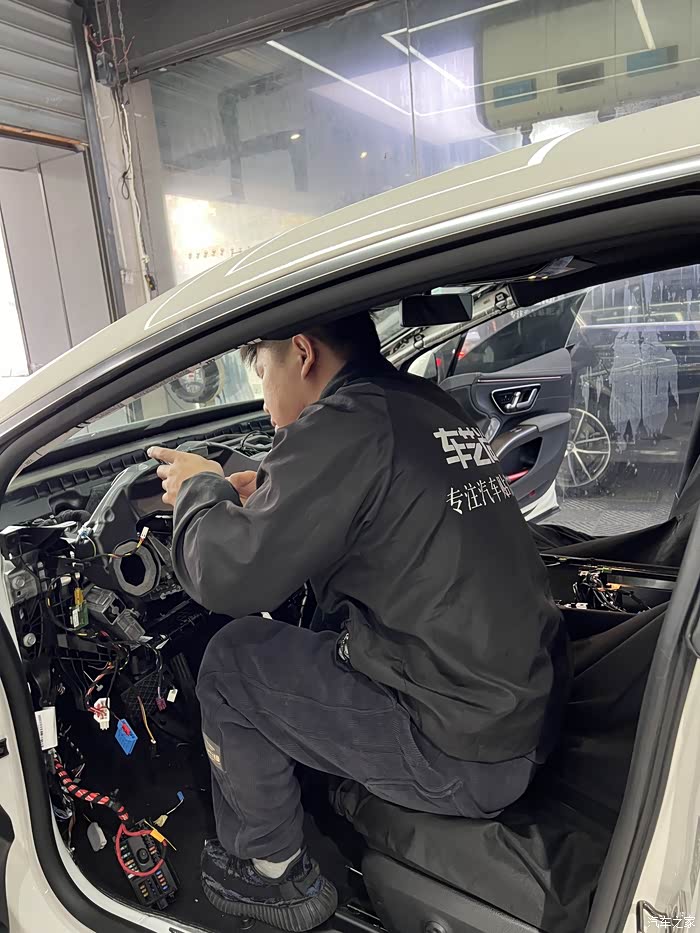

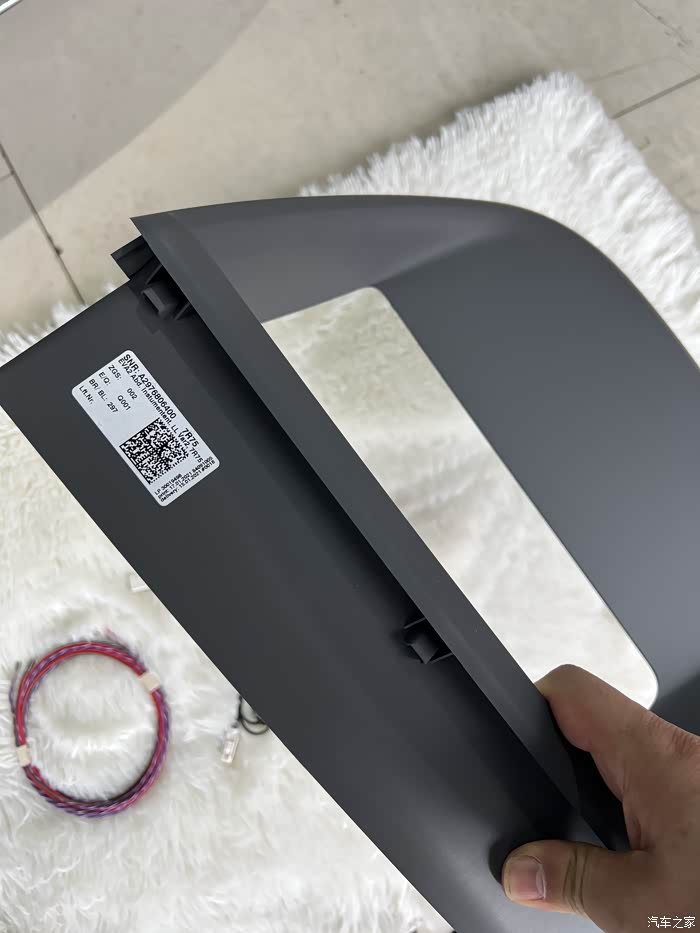

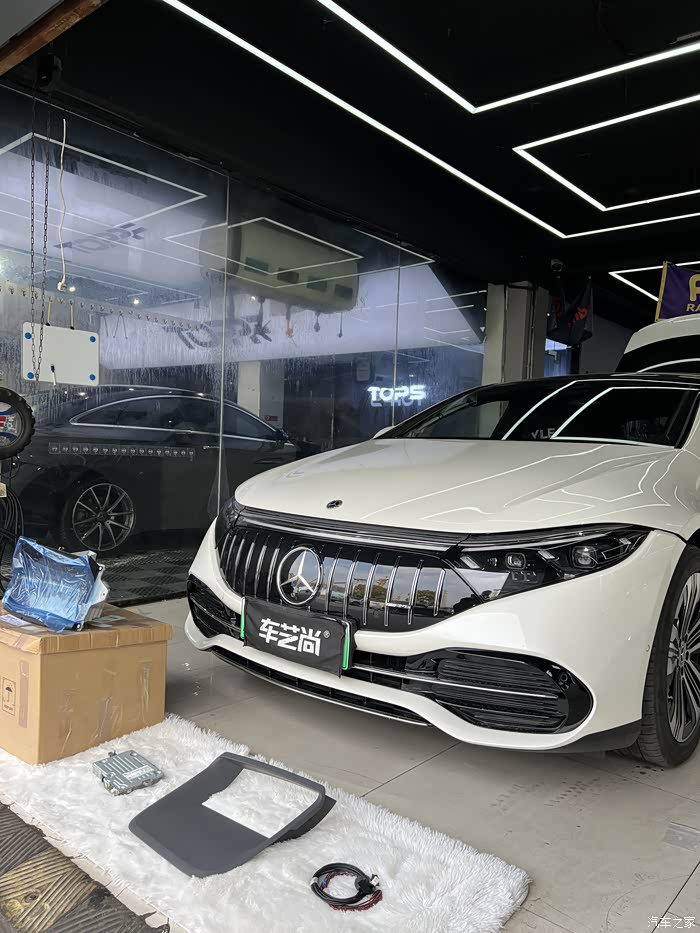

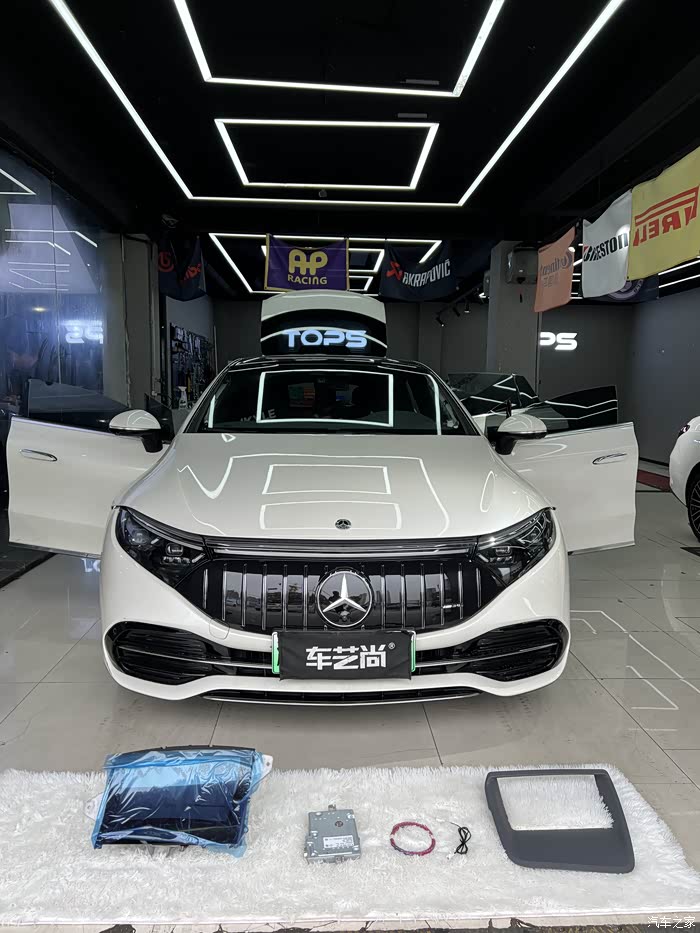

<div class="quoteparagraph-list-wrap"><h2 class="quoteparagraph-caption">目录</h2><ul class="quoteparagraph-list"><li><a href="#62311"><span class="card-paragraph-title"></span>奔驰EQS升级原厂HUD高级平视显示系统</a></li><li><a href="#623115"><span class="card-paragraph-title"></span>下面HUD升级好的效果，我们来看下，非常清晰。</a></li></ul></div><h2 id="62311" class="tz-paragraph-title">奔驰EQS升级原厂HUD高级平视显示系统</h2><div layer1="text-s"></div><div class="tz-paragraph"></div><div layer1="text-e"></div><br /><div layer1="img-s"></div><div class="tz-picture"><img src="http://club2.autoimg.cn/album/g31/M09/C8/4F/userphotos/2024/04/14/22/500_ChxoHWYb712ASVbHAFfm--HNEI4739.jpg" style="width:700px;height:933px"/></div><div layer1="img-e"></div><br /><div layer1="text-s"></div><div class="tz-paragraph">奔驰EQS安装原厂HUD抬头显示显示系统，需要配件如下：1&nbsp;HUD机头一个<br />2.仪表模块&nbsp;1个<br />3.HUD盖板<br />4.HUD机头供电和视频线1套<br />位置<br />根据安装的设备,安装了扩展型平视显示屏，用于直接显示内容(例如，<br />平视显示屏位于驾驶员侧仪表板下方,安装在仪表板横梁上.<br />箭头,追踪地毯，...)，此情况应考虑在内.<br />任务<br />平视显示屏通过高速视频链接(HSVL)<br />接口接收由仪表盘显示控制单元处理的画面信息.<br />平视显示屏将驾驶相关信息（如车速，导航信息)<br />投射到风挡玻璃上驾驶员方便看见的区域.<br />风挡玻璃上投射画面的高度和亮度可以调节.可单独配置显示的内容.<br />平视显示屏仅显示同时显示在仪表盘显示屏上的信息.<br />此外,对于装配记忆功能的车辆,可通过记忆功能获取个性化设置.<br />显示该信息意味着驾驶员无需从当前驾驶操作中转移注意力.</div><div layer1="text-e"></div><br /><div layer1="img-s"></div><div class="tz-picture"><img src="http://club2.autoimg.cn/album/g31/M01/C8/38/userphotos/2024/04/14/22/500_ChtlyGYb71aAF6p7AAbJ8hZpt0o861.jpg" style="width:700px;height:1244px"/></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-picture"><img src="http://club2.autoimg.cn/album/g31/M03/C8/4F/userphotos/2024/04/14/22/500_ChxoHWYb72OAVp9JAF94I7WF4A4190.jpg" style="width:700px;height:933px"/></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g31/M07/C8/38/userphotos/2024/04/14/22/500_ChtlyGYb71qAE9wDAF8Cfk6jkss873.jpg" style="width:700px;height:933px"/><div layer2="desc-s"></div><div class="description">HUD机头</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g31/M07/C8/4F/userphotos/2024/04/14/22/500_ChxoHWYb712ADI2TAGANesPu-lA805.jpg" style="width:700px;height:933px"/><div layer2="desc-s"></div><div class="description">仪表模块</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-picture"><img src="http://club2.autoimg.cn/album/g31/M05/C8/38/userphotos/2024/04/14/22/500_ChtlyGYb71mAawiTAFqY5fsDyk8229.jpg" style="width:700px;height:933px"/></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g31/M05/C8/38/userphotos/2024/04/14/22/500_ChtlyGYb71SAc6dDAEltXnFvBug118.jpg" style="width:700px;height:933px"/><div layer2="desc-s"></div><div class="description">HUD盖板</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g31/M01/C8/12/userphotos/2024/04/14/22/500_ChxoHmYb71eASqZmAGOB21pWHTA670.jpg" style="width:700px;height:933px"/><div layer2="desc-s"></div><div class="description">原车预留安装</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-picture"><img src="http://club2.autoimg.cn/album/g31/M01/C8/39/userphotos/2024/04/14/22/500_ChtlyGYb72OAIRa-AGe5XBX86PM082.jpg" style="width:700px;height:933px"/></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g31/M00/C8/12/userphotos/2024/04/14/22/500_ChxoHmYb71qACzqwAHeLZ7Qi820107.jpg" style="width:700px;height:933px"/><div layer2="desc-s"></div><div class="description">安装HUD是需要对仪表台进行切割，安装好盖板，效果非常完美。</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-picture"><img src="http://club2.autoimg.cn/album/g31/M04/C8/38/userphotos/2024/04/14/22/500_ChtlyGYb71OAU6rxAB7644IqqkQ216.jpg" style="width:700px;height:933px"/></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-picture"><img src="http://club2.autoimg.cn/album/g31/M03/C8/38/userphotos/2024/04/14/22/500_ChtlyGYb716AdlPYAC8GYAKWe5E722.jpg" style="width:700px;height:933px"/></div><div layer1="img-e"></div><br /><h2 id="623115" class="tz-paragraph-title">下面HUD升级好的效果，我们来看下，非常清晰。</h2><div layer1="text-s"></div><div class="tz-paragraph"></div><div layer1="text-e"></div><br /><div layer1="img-s"></div><div class="tz-picture"><img src="http://club2.autoimg.cn/album/g31/M0B/C8/12/userphotos/2024/04/14/22/500_ChxoHmYb71eAXwGAAC9AJgZ5Wp0088.jpg" style="width:700px;height:933px"/></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-picture"><img src="http://club2.autoimg.cn/album/g31/M07/C8/4F/userphotos/2024/04/14/22/500_ChxoHWYb71iAB528AB5cr2EpkJQ520.jpg" style="width:700px;height:933px"/></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-picture"><img src="http://club2.autoimg.cn/album/g31/M08/C8/4F/userphotos/2024/04/14/22/500_ChxoHWYb71-Ad1vYABz-Bv_MiBE007.jpg" style="width:700px;height:933px"/></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-picture"><img src="http://club2.autoimg.cn/album/g31/M0B/C8/4F/userphotos/2024/04/14/22/500_ChxoHWYb71-AInEsAB7ZYuGbG9A769.jpg" style="width:700px;height:933px"/></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-picture"><img src="http://club2.autoimg.cn/album/g31/M0B/C8/12/userphotos/2024/04/14/22/500_ChxoHmYb71-AB7zlACVFOWMAcik664.jpg" style="width:700px;height:933px"/></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-picture"><img src="http://club2.autoimg.cn/album/g31/M04/C8/4F/userphotos/2024/04/14/22/500_ChxoHWYb72SARqkJAC5ELY-t73U927.jpg" style="width:700px;height:933px"/></div><div layer1="img-e"></div><br />
