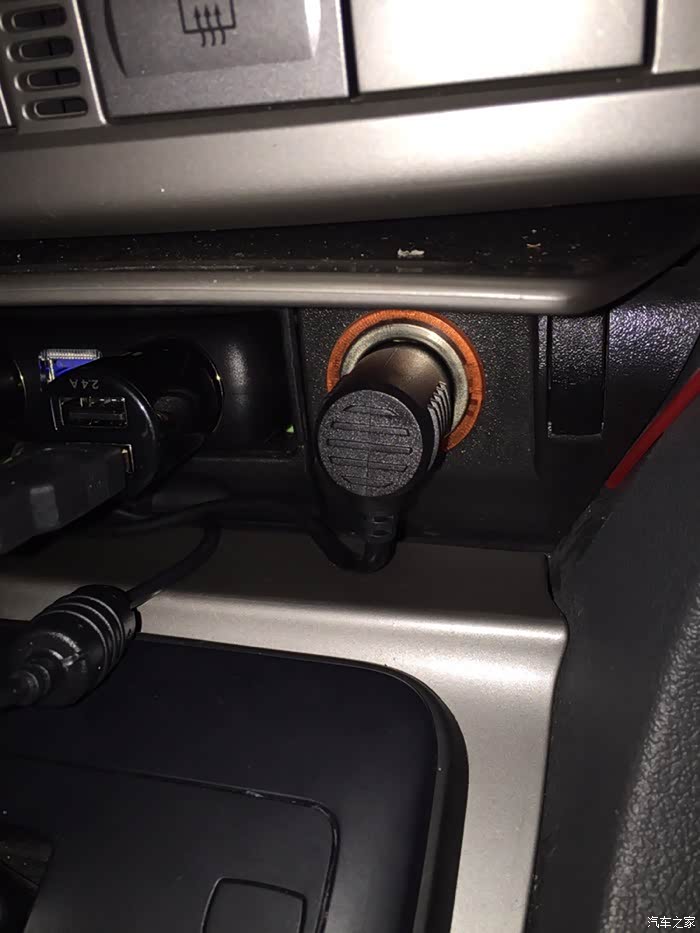

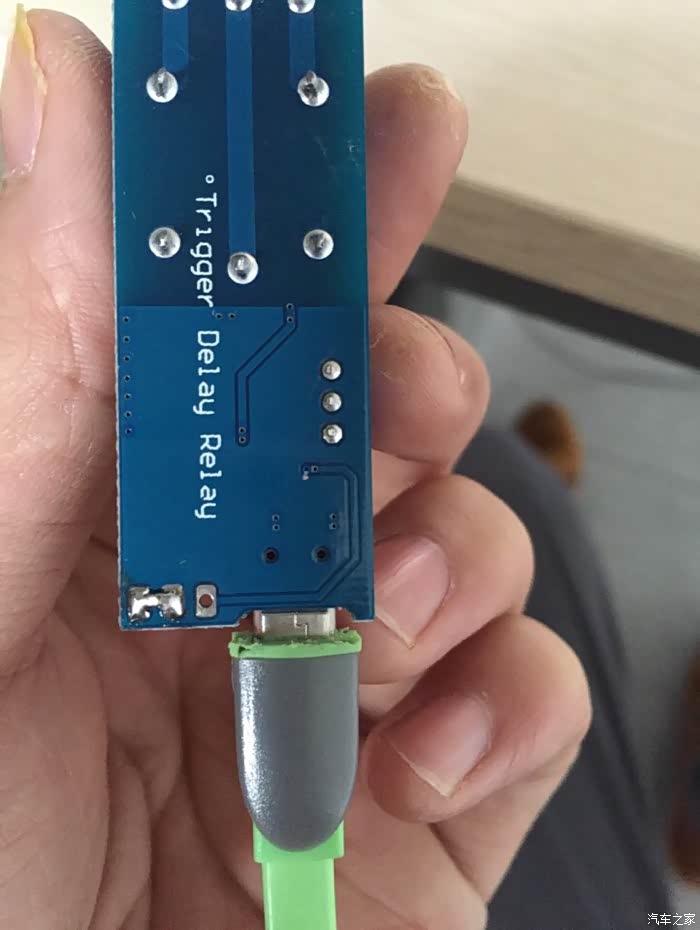

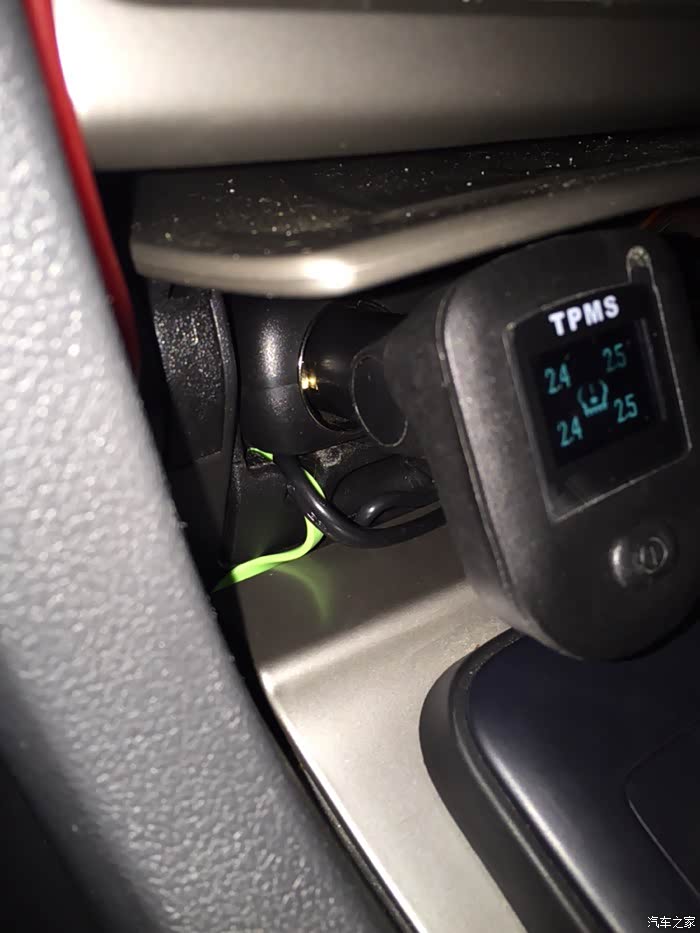

<div layer1="text-s"></div><div class="tz-paragraph">小福入手快两年了，装了乐视的行车记录仪，但是点烟器的设计很无语，闲话不多说。直接上图。</div><div layer1="text-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g19/M0E/6C/82/userphotos/2016/10/31/19/500_wKgFWFgXJ5uAZIF4AAGeHNeFJ84677.jpg" style="height:0;width:0"  /><div layer2="desc-s"></div><div class="description">5v继电器模块。Usb供电，低电平触发，用烙铁短接电源负极和触发端子。</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g19/M0E/6C/01/userphotos/2016/10/31/19/500_wKjBxFgXJ5yAQNP7AAGlcqowqw0540.jpg" style="height:0;width:0"  /><div layer2="desc-s"></div><div class="description">一拖二点烟器刚好装入烟灰缸。电源线的正极剪断入继电器常来触点。</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g19/M0F/6C/82/userphotos/2016/10/31/19/500_wKgFWFgXJ5yAesfXAAGSmd2RjmM181.jpg" style="height:0;width:0"  /><div layer2="desc-s"></div><div class="description">隐藏走线。</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g19/M0F/6C/02/userphotos/2016/10/31/19/500_wKjBxFgXJ52AXE2TAAIS-96_-zc584.jpg" style="height:0;width:0"  /><div layer2="desc-s"></div><div class="description">效果图，牺牲一个USB接口，效果不用忘记拔点烟器了。</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g19/M10/6C/82/userphotos/2016/10/31/19/500_wKgFWFgXJ56ABHdmAAKVPdQeS-4998.jpg" style="height:0;width:0"  /><div layer2="desc-s"></div><div class="description">最后上个小福全身照。仅供参考。</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br />

经典福克斯点烟器断电改装
