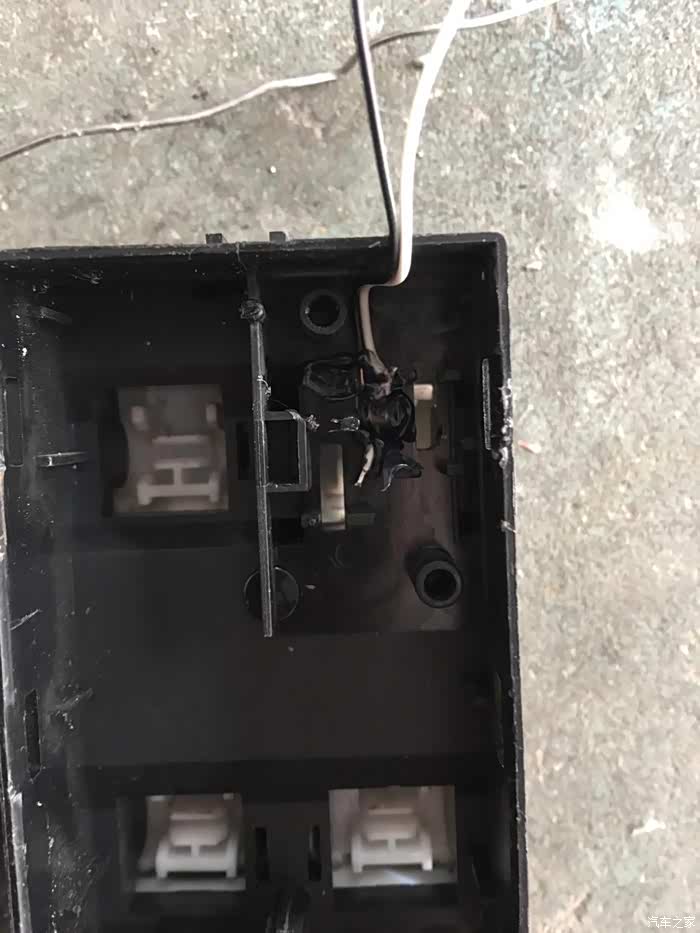

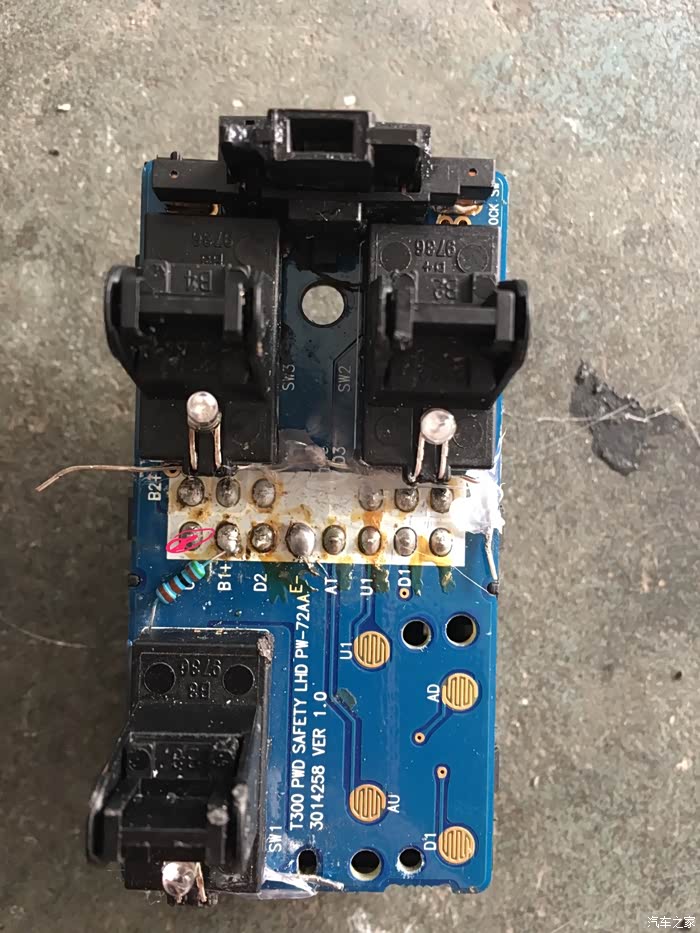

<div layer1="text-s"></div><div class="tz-paragraph normal">改装过程没有拍摄，图片有几张，想自己动手改的朋友可以问我<img src="https://z.autoimg.cn/creator/packages/emoji/smiley/13.gif" class="spic" /><img src="https://z.autoimg.cn/creator/packages/emoji/smiley/13.gif" class="spic" /></div><div layer1="text-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g23/M14/23/6F/userphotos/2017/03/29/18/500_wKjBwFjbk2iAGTfUAAGlbekYAJQ236.jpg" style="width:700px;height:933px"/><div layer2="desc-s"></div><div class="description">这是一键升窗键的位置由于电路板上有硅胶按键这灯只能打胶装到改装中间方形孔</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g23/M10/22/56/userphotos/2017/03/29/18/500_wKgFV1jbk2iAIV4UAAolWG5vEMI977.jpg" style="width:700px;height:933px"/><div layer2="desc-s"></div><div class="description">这是主驾驶集成功能电路板，红色位置是负极，电阻那端是正极，二极发光管并联时要将灯脚正负相并（这里就不解释了（就是二极发光管的正极接负极，然后正极尾段需要加个5K电阻，加电阻注意正负极）</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g23/M15/23/6F/userphotos/2017/03/29/18/500_wKjBwFjbk2mAYCczAA293kyPMVA339.jpg" style="width:700px;height:1244px"/><div layer2="desc-s"></div><div class="description">主驾位完成，由于锁窗键位置走线需要切掉部分塑料件所以没动手改，这个反正就一个键也按错不了</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g18/M12/42/7C/userphotos/2017/03/29/19/500_wKgH2Vjbk8yAUmteAAXx2aZyMLI880.jpg" style="width:700px;height:933px"/><div layer2="desc-s"></div><div class="description">这是后门版的电路，上方是负，下方是正，记住正极需要?电阻哦</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g18/M0C/47/BF/userphotos/2017/03/29/19/500_wKgH6Fjbk8yALntJAAI38dwSp3M184.jpg" style="width:700px;height:933px"/><div layer2="desc-s"></div><div class="description">我的电阻是放在电路板后面</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g11/M02/4A/1A/userphotos/2017/03/31/08/500_wKgH4Vjdp8aASWh8AAYQT1_B86A388.jpg" style="width:700px;height:933px"/><div layer2="desc-s"></div><div class="description">图片中标示红色为正极，黑色为负极，后门和副驾位相同</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br />

雪佛兰创酷自豪版自己动手改装门板中控背景灯
