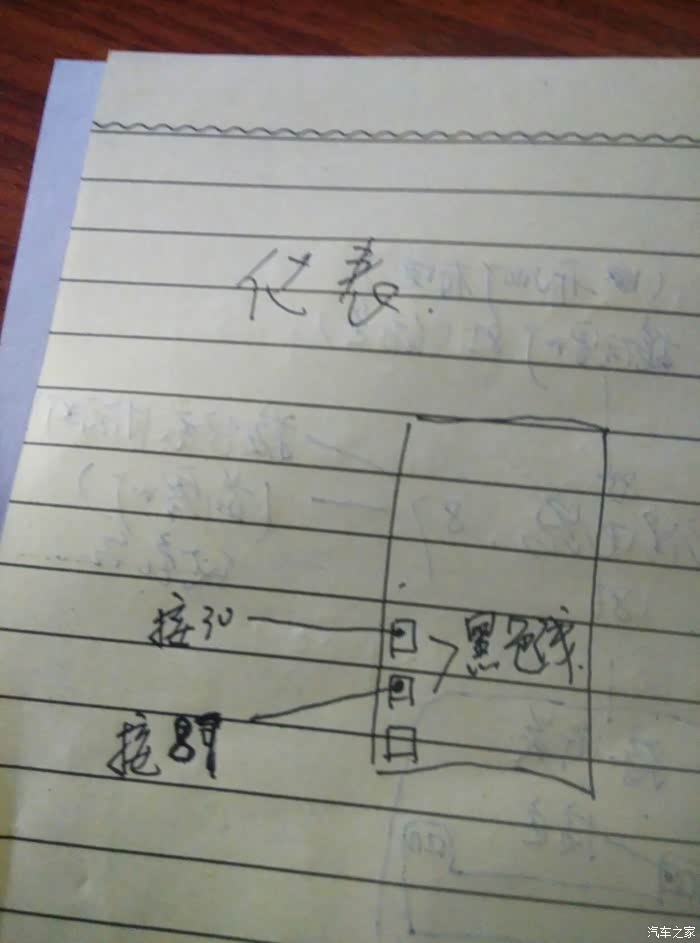

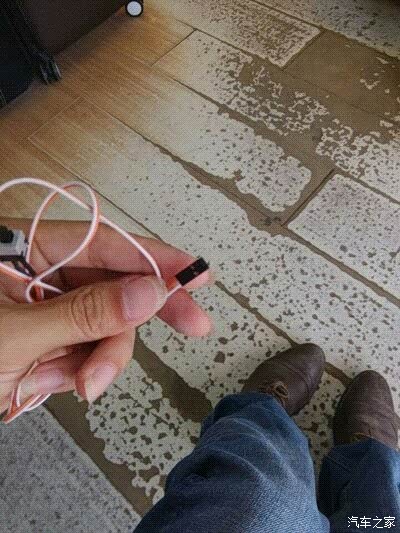

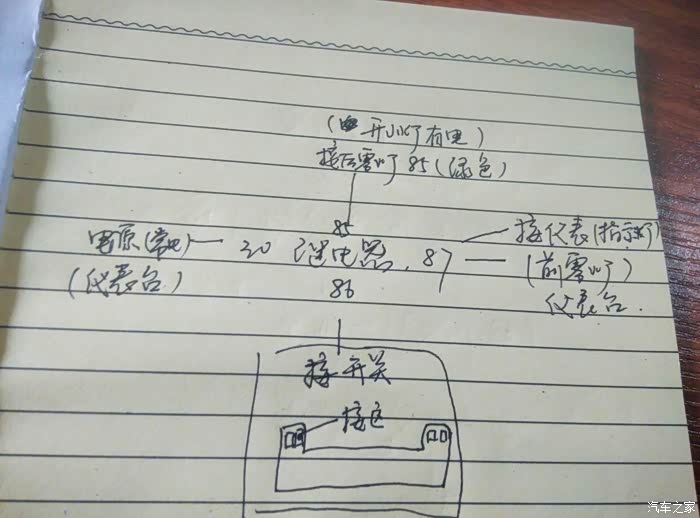

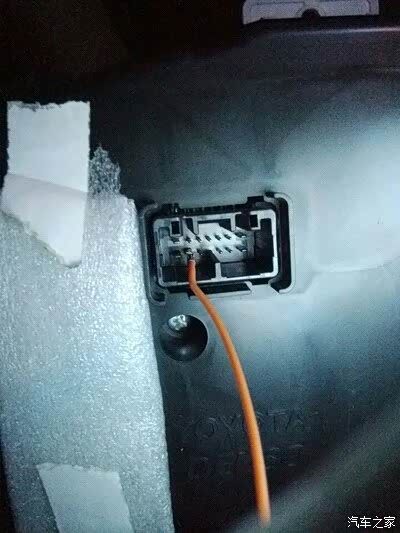

<div layer1="text-s"></div><div class="tz-paragraph">之前发过换开关总成接前雾灯路线，可能不太清楚！现在发纯手画接线图，按照图接就可以，需要配件：带前雾灯开关总成，4脚继电器，线束若干米，接头自己想办法，开关接头那里可以用电脑开关接头（有图）<br /></div><div layer1="text-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club1.autoimg.cn/album/g12/M07/39/A9/userphotos/2016/01/11/09/500_wKjBy1aTCbuATWgEAAPQ904LFps733.jpg" style="height:518px;width:700px"  /><div layer2="desc-s"></div><div class="description">继电器接法</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club0.autoimg.cn/album/g12/M10/37/36/userphotos/2016/01/11/09/500_wKgH01aTCcaAVVSsAATHwfl9zQs516.jpg" style="height:943px;width:700px"  /><div layer2="desc-s"></div><div class="description">仪表台端子接法30，87</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club1.autoimg.cn/album/g17/M13/33/4D/userphotos/2016/01/11/09/500_wKjBxlaTCfOAClliAAEDv5QoSGA510.jpg" style="height:533px;width:400px"  /><div layer2="desc-s"></div><div class="description">仪表灯位置87号</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club0.autoimg.cn/album/g14/M03/39/53/userphotos/2016/01/11/09/500_wKgH5FaTCjCAc5ZVAAFewwSFZfg095.jpg" style="height:533px;width:400px"  /><div layer2="desc-s"></div><div class="description">接头，拆开可接雾灯开关</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br />

原车路线接前雾灯，换开关总成接线图
