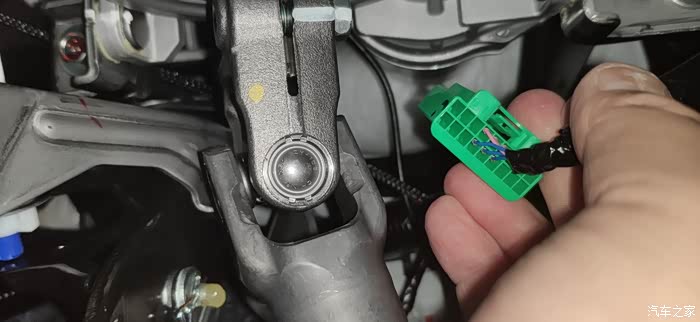

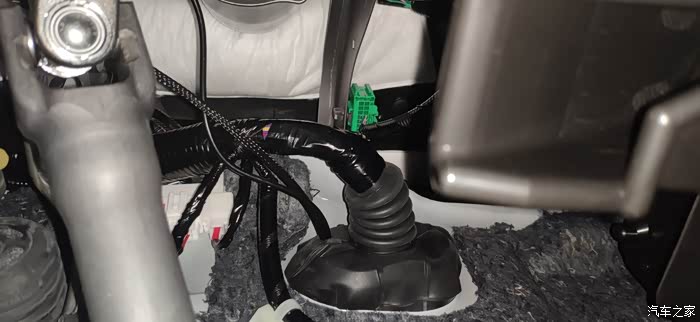

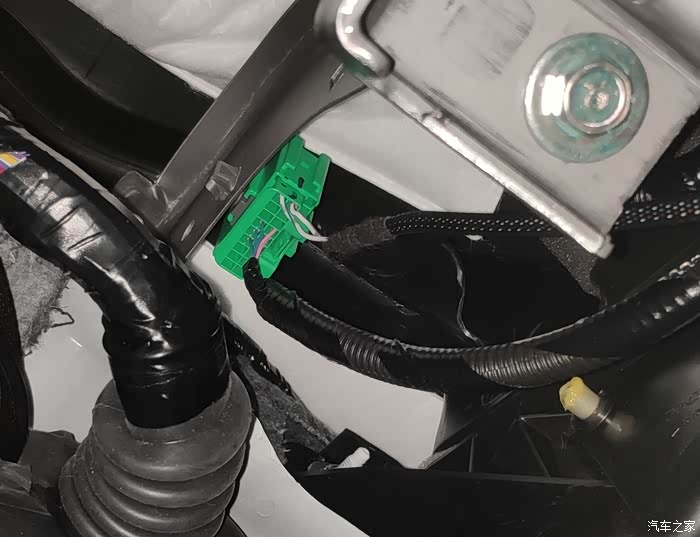

<div layer1="text-s"></div><div class="tz-paragraph">接上一帖子，安装了大屏，方向盘，仪表，就差大屏协议了，经过一段时间的寻找，终于找到了飞度CAN协议针尖，直接上图<br />PS:版主若是不嫌弃，申请加精</div><div layer1="text-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g24/M02/61/9E/userphotos/2020/04/29/23/500_ChwFjl6pmJCAO_weAAf7f0F5Zoo304.jpg" style="height:323px;width:700px"  /><div layer2="desc-s"></div><div class=description>油门踏板向里面看，一个绿色的插头</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g25/M03/3F/A5/userphotos/2020/04/29/23/500_ChsEmF6pmIuAR7mkAAiD83lpLhM461.jpg" style="height:1860px;width:4032px"  /><div layer2="desc-s"></div><div class=description>只有粉和蓝色的线，最左边的两个针脚，直接做插头插进去</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g30/M04/E1/F3/userphotos/2020/04/29/23/500_ChsEoF6pmIeACzvDAAjHdd6uAlQ047.jpg" style="height:1860px;width:4032px"  /><div layer2="desc-s"></div><div class=description>插好插头是这样的</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g24/M04/61/9C/userphotos/2020/04/29/23/500_ChwFjl6pmIGAAGBKAAtT99NzLow776.jpg" style="height:1251px;width:1629px"  /><div layer2="desc-s"></div><div class=description>来一张大图，让你们能看得清</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g26/M08/37/5D/userphotos/2020/04/29/23/500_ChwFkF6pmGuAUfKBAAgia7xahpE582.jpg" style="height:1860px;width:4032px"  /><div layer2="desc-s"></div><div class=description>卡仕达转接线我用的缤智的，协议盒用睿志诚的，找到20针尖的插头，只有三根线，破线连接</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g24/M0A/61/96/userphotos/2020/04/29/23/500_ChwFjl6pmGWAf9seAAXWIOGKiyg891.jpg" style="height:1860px;width:4032px"  /><div layer2="desc-s"></div><div class=description>卡仕达选择协议盒</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g26/M09/37/5B/userphotos/2020/04/29/23/500_ChwFkF6pmFOARRULAAXe0lIF0B4359.jpg" style="height:1860px;width:4032px"  /><div layer2="desc-s"></div><div class=description>终于识别到协议盒了</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g24/M02/61/93/userphotos/2020/04/29/23/500_ChwFjl6pmE-AJp6kAASfxvjG_Rg120.jpg" style="height:1860px;width:4032px"  /><div layer2="desc-s"></div><div class=description>大致功能列表</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g26/M07/37/5A/userphotos/2020/04/29/23/500_ChwFkF6pmEmAG7xnAAUYD0QMdYk748.jpg" style="height:1860px;width:4032px"  /><div layer2="desc-s"></div><div class=description>显示了油耗信息</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g26/M06/E5/F8/userphotos/2020/04/29/23/500_ChsEe16pmESADGdWAAZ4e1CadBk260.jpg" style="height:1860px;width:4032px"  /><div layer2="desc-s"></div><div class=description>显示了倒车轨迹</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="img-s"></div><div class="tz-figure"><img src="http://club2.autoimg.cn/album/g24/M08/61/8E/userphotos/2020/04/29/23/500_ChwFjl6pmCiAJ06NAAPSmoJpyPg441.jpg" style="height:1860px;width:4032px"  /><div layer2="desc-s"></div><div class=description>可以显示五门的状态</div><div layer2="desc-e"></div></div><div layer1="img-e"></div><br /><div layer1="text-s"></div><div class="tz-paragraph">如果加装了原车的倒车雷达模块，也是能显示的。<br />到此为止，我的飞度加装基本完成了，如果以后再加装什么，再跟大家分享！</div><div layer1="text-e"></div><br />

20款飞度858成功连接CAN协议，谁说低配没CAN协议
